1/16 USN PT Boat 109 Day Cabin

1/16 USN PT Boat 109 Day Cabin: Large-Scale Elco Patrol Craft Realism

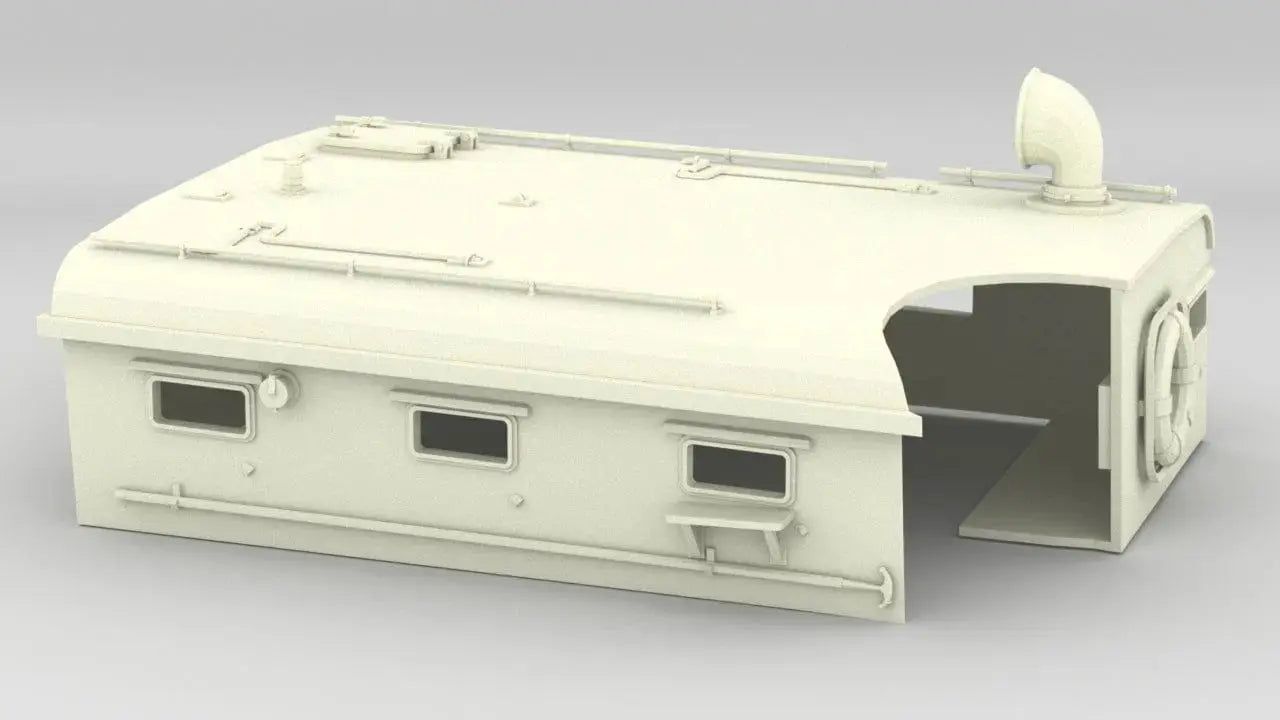

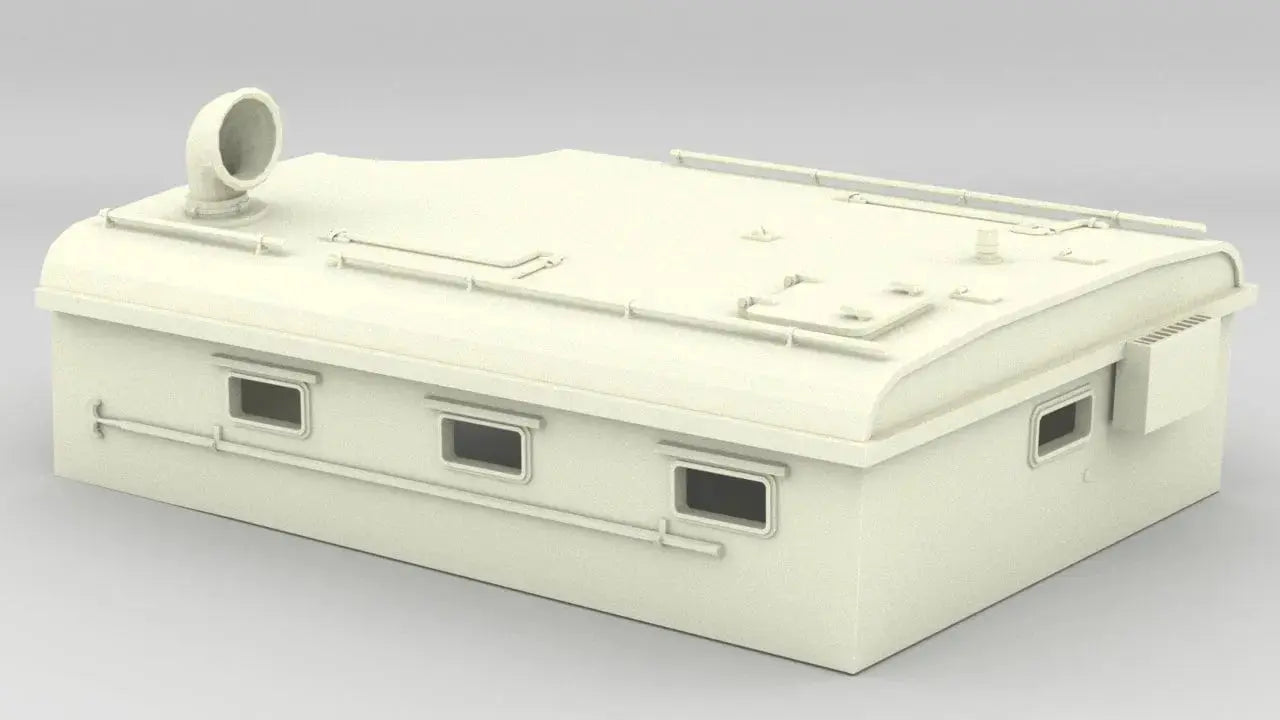

Bring an exceptional layer of technical density, structural authority and historical precision to the midships profile of your large-format patrol boat with the meticulously engineered 1/16 Scale U.S. Navy (USN) PT Boat 109 Day Cabin upgrade. Operating as the primary structural cabin trunk aboard the legendary 80-foot Elco motor torpedo boats—including the historic PT-109 commanded by John F. Kennedy—this distinct superstructure compartment was the operational core for crew relaxation, internal navigation and structural support. Positioned directly abaft the open bridge and chart house, the day cabin sat over the forward crew quarters and provided a vital, heavily utilized transitions platform for deck-mounted anti-aircraft weapon systems. At this massive, studio-grade 1/16 scale, this premium superstructure component captures the distinct sloped profile paneling, watertight window recesses, structural roof hatches and mounting points of the original Elco shipyard architecture with museum-grade precision, making it an indispensable asset for discerning maritime shipwrights anchoring their veteran patrol craft representations.

Engineering Precision and Superstructure Fidelity

At a substantial 1/16 scale, large superstructure housings and cabin trunks step out of the background to become dominant standalone visual anchors along the weather decks, exposing every interlocking wood joint, window frame perimeter and structural latch line to close visual inspection. This replica component captures the classic naval engineering profiles of the historic Elco Naval Works blueprints with exquisite clarity, completely eliminating the soft features, thick scale wall profiles, injection-molded plastic compromises and tedious multi-piece centerline seam line filling typical of standard factory kit parts. Every individual parallel deck hatch runner, side deadlight recess, perimeter rain drip rail and structural reinforcement plate is rendered with sharp, architectural clarity, providing a flawless structural foundation right out of the box and replacing the need for complex, scratch-built sheet plastic conversions.

• Class-Specific Shipyard Replication: Developed using original Elco 80' technical layouts, archival restoration specifications and historical blueprints to accurately reproduce the exact physical proportions and structural variations correct for the early-to-mid-war Elco 103 series (Hulls 103–196 and 314–367).
• True-to-Scale Volumetric Depth: Replicates the true wall dimensions and wood-paneled relief of the historic timber superstructure, creating authentic deep shadow lines and realistic physical depth that standard factory kit shapes or flat aftermarket modifications cannot realistically duplicate.
• Streamlined Integrated Detailing: Features fine deadlight framing, structural roof reinforcement tracks and mounting tabs modeled cleanly directly into the main casting, drastically reducing assembly friction and eliminating the frustrating alignment tasks associated with managing multi-piece subassemblies.
• Intelligent Hollowed Engineering: Expertly designed with an optimized, hollowed-out internal casting profile to minimize topside material weight across its extensive physical footprint. This smart layout ensures a lightweight superstructure addition that mounts effortlessly to delicate wood, plastic or resin deck surfaces without causing surface distortion, deck warping or center-of-gravity stability issues on large-scale display or active operational radio-controlled hulls.

Premium Material: High Detail Resin Grey

To ensure the razor-thin window borders, crisp structural hatch channels and smooth sloped bulkhead paths showcase the absolute sharpest technical definitions across the entire assembly, this primary superstructure hardware asset is crafted from professional High Detail Resin Grey.

• Exceptional Feature Definition: The high-quality resin achieves superior multi-dimensional precision and a remarkably smooth surface finish, perfect for maintaining sharp, uniform profiles on complex geometric angles and long, flat panels without any distracting layer lines.
• Professional Foundation: Provides an ultra-smooth, non-porous base specifically optimized for high-quality marine primers, complex multi-toned masking tapes and optimal naval paint adherence.

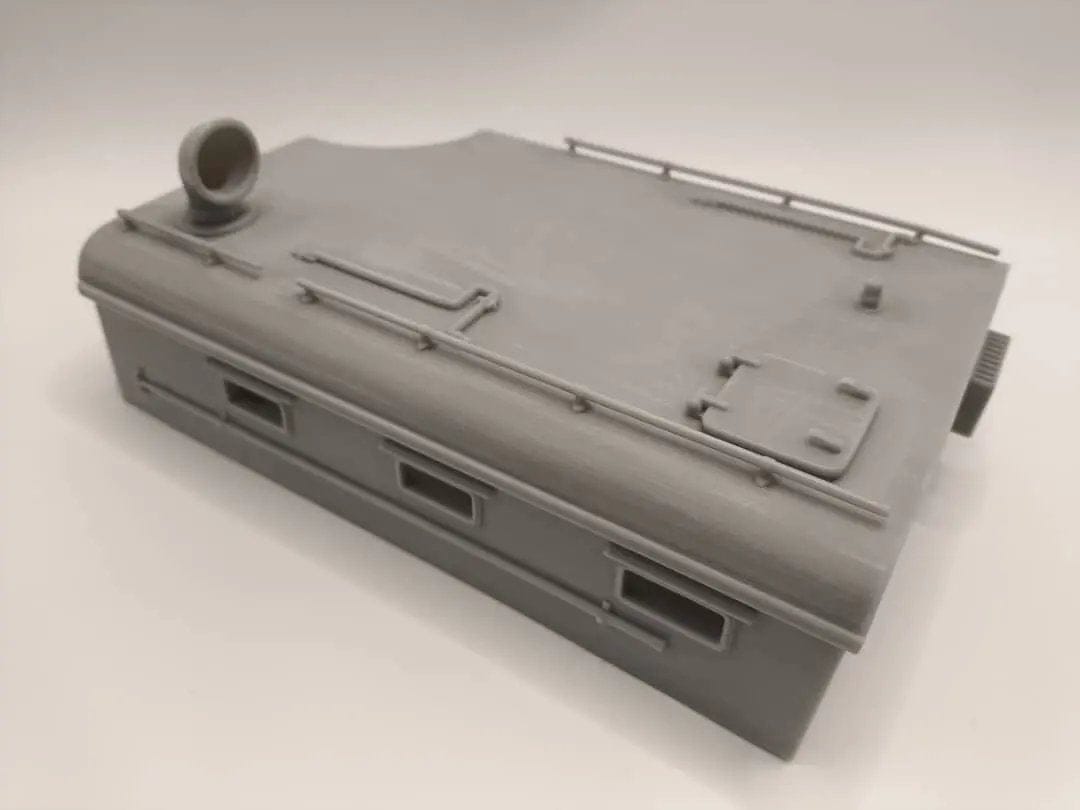

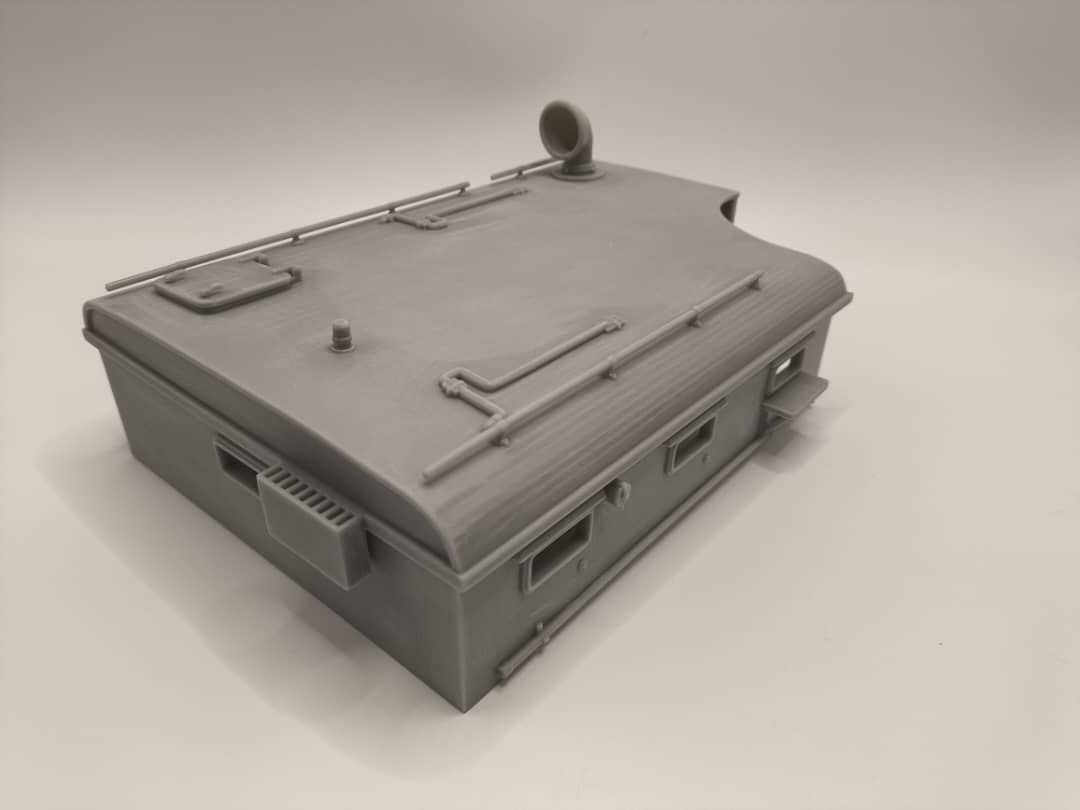

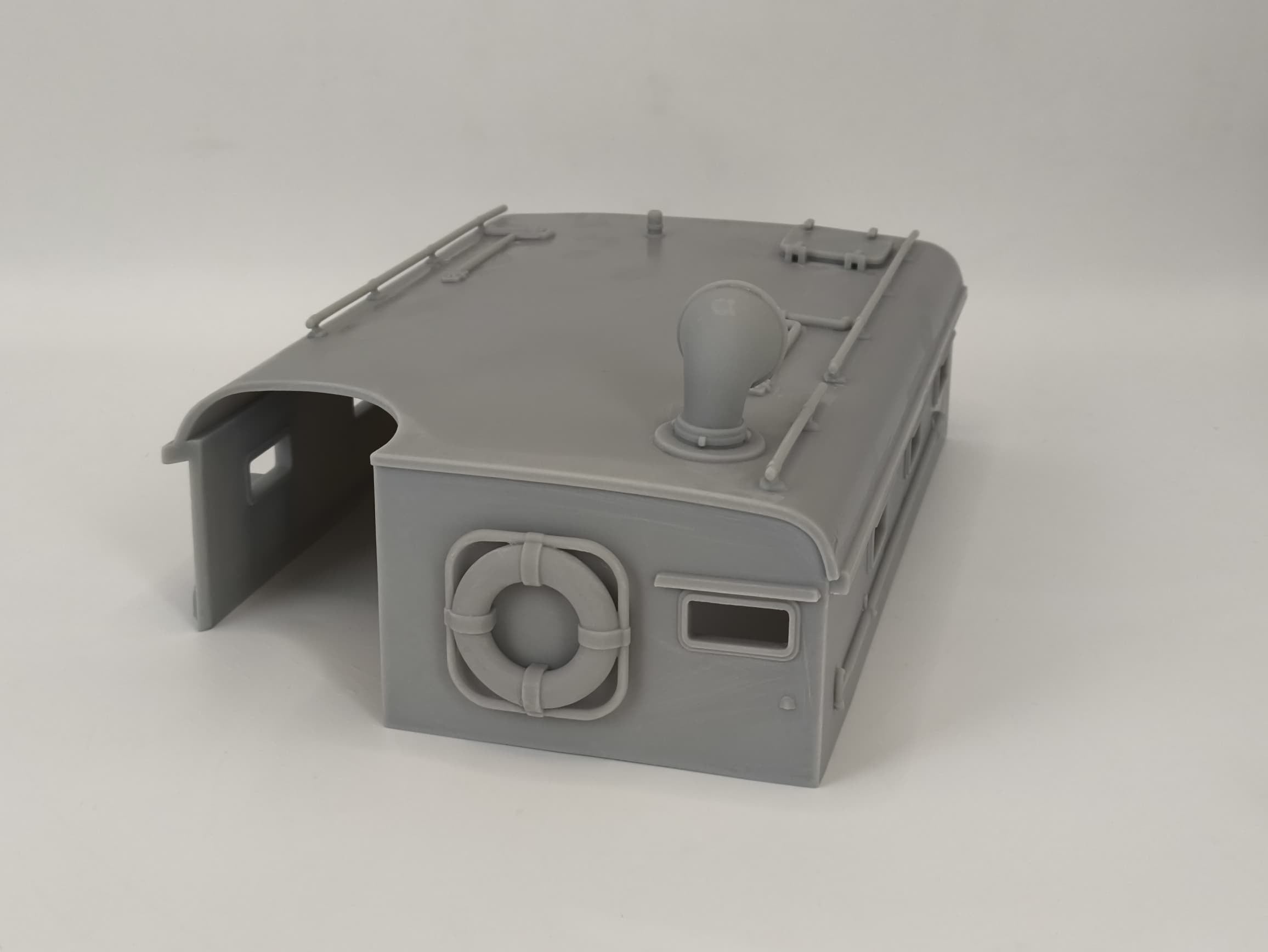

• Superior Quality: Manufactured by distefan 3d print, ensuring clean surfaces, precise geometry alignment and outstanding dimensional integrity for a luxurious, professional-grade finish.

Key Features and Specifications

• Accurate 1/16 Scale Precision: Precision-engineered for perfect, historically proportional integration with standard large-format 1/16 scale PT boat kits, radio-controlled operational models, premium museum-grade display projects and custom scratch-built shipyard refits.
• Historically Authentic Elco Architecture: Authentically represents the physical layout of the vital day cabin systems utilized heavily across the legendary 80-foot Elco motor torpedo boat fleet throughout the grueling 1942–1943 Pacific campaigns.
• Unpainted Finish: Arrives completely unpainted, providing a blank canvas for your creative vision. Customize the assembly to reflect factory-fresh shipyard coatings or heavily weathered, campaign-ready combat gear.
• RC Ready Structural Design: The lightweight, high-strength construction easily supports the weight and vibration of secondary hardware additions like the main mast, engine room ventilation systems or deck guns, making it perfect for active patrol boat models where reducing top-heavy weight is critical for high-speed handling.

A Canvas for Battle-Tested Pacific Artistry

Arriving in its raw resin finish, the USN PT Boat 109 Day Cabin serves as the ultimate starting point for advanced multi-layer painting, precise material color-blocking and realistic maritime weathering.

• The Fleet Camouflage Scheme: Coat the primary day cabin bulkheads and sloped roof in authentic period-correct US Navy patrol craft colors—such as the early-war overall Ocean Green (Measure 31, Design 20L) common on South Pacific Elco boats operating out of Tulagi or Rendova, or a deep overall Dull Black or Dark Green scheme for nighttime stealth operations. The uniform resin surfaces are ideal for clean color-blocking and maintaining razor-sharp paint boundaries against your running window frames or deadlight seals.
