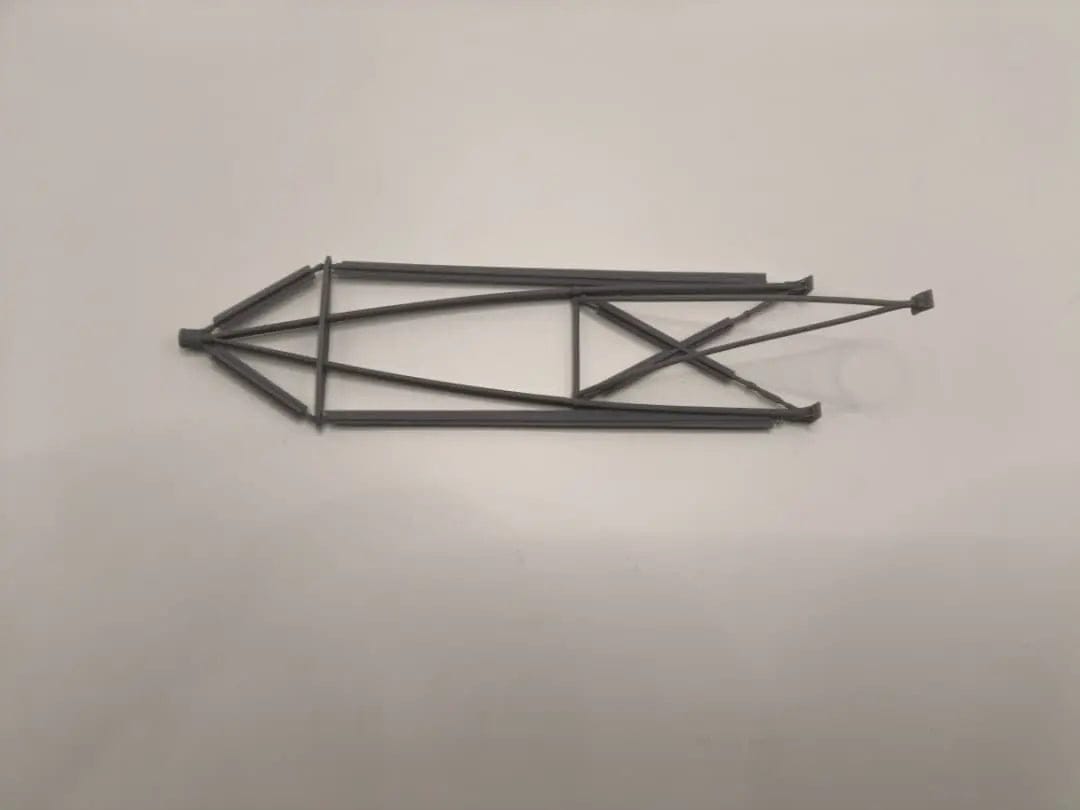

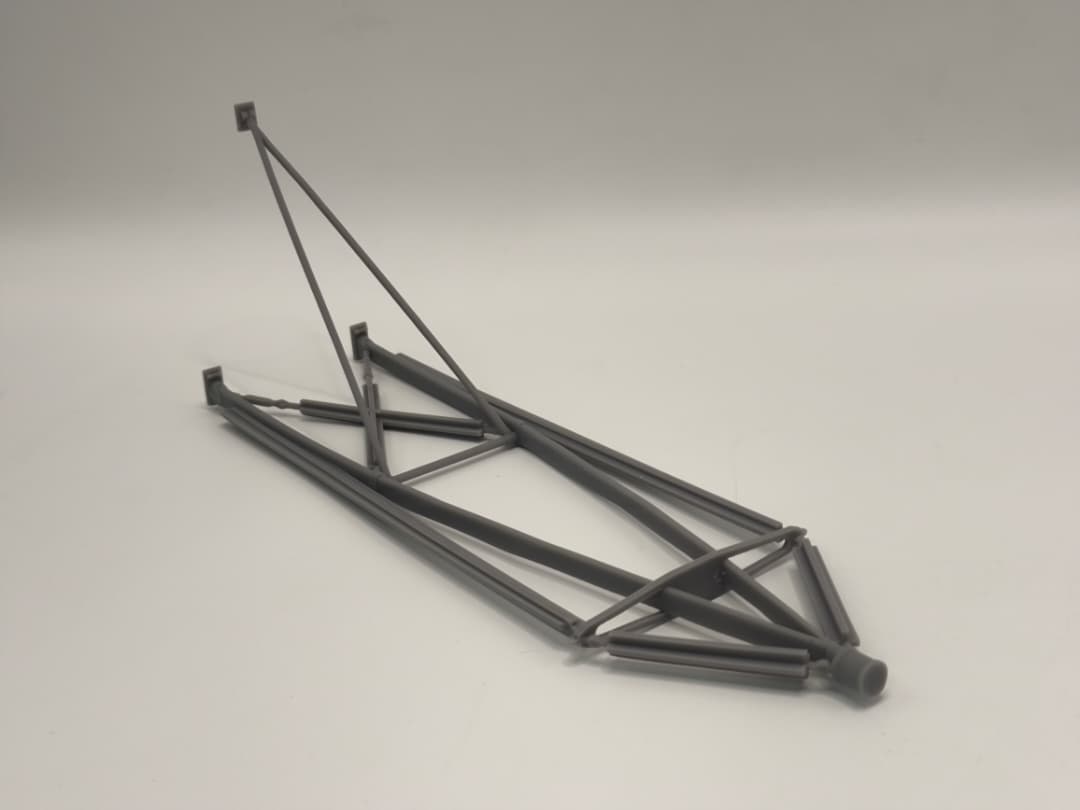

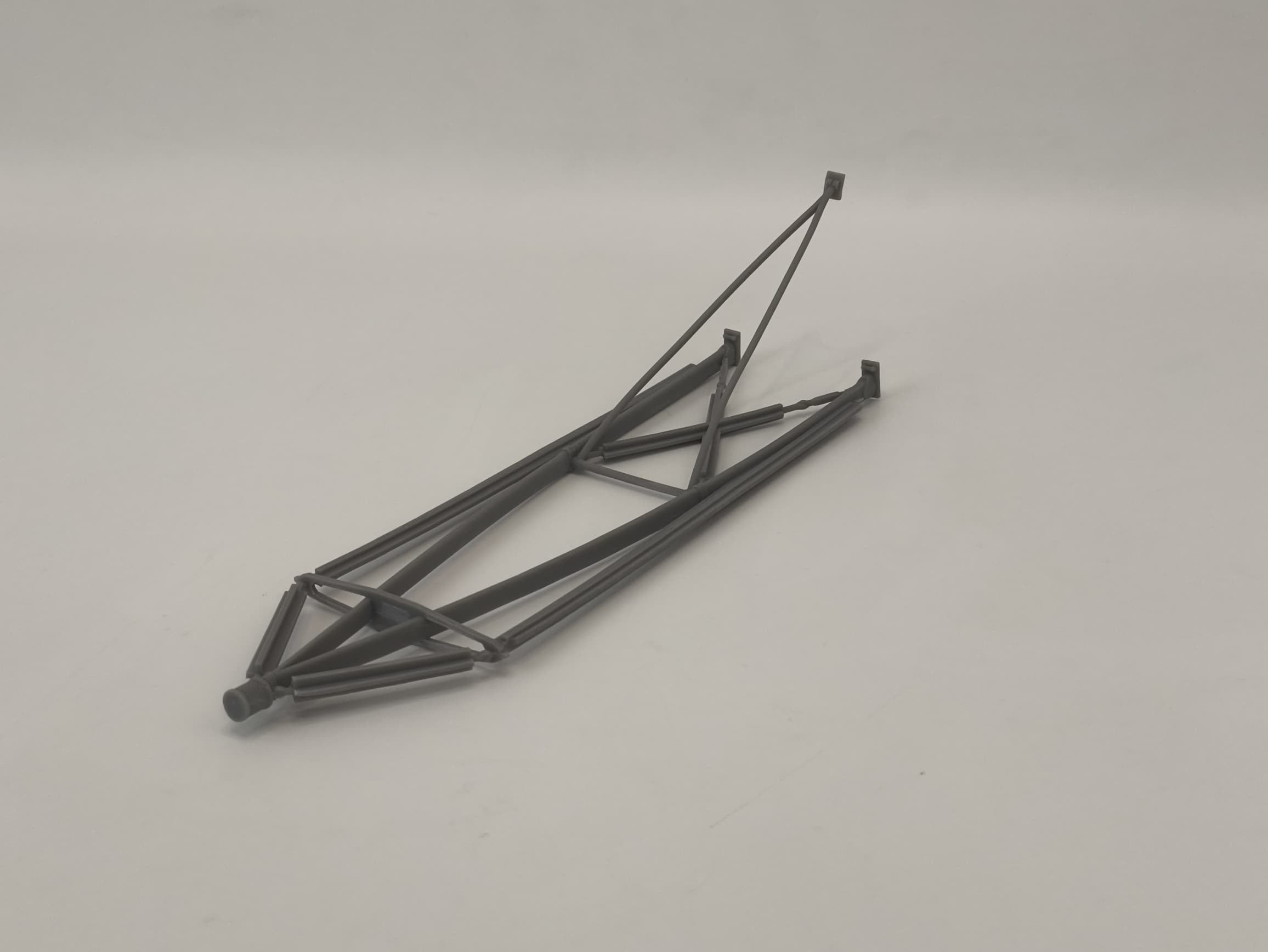

1/16 USN PT Boat 109 Main Mast

1/16 USN PT-109 Main Mast: Authentic WWII Detail for Elco 103 Class

Define the silhouette of your large-scale patrol boat with the meticulously engineered 1/16 Scale U.S. Navy (USN) PT-109 Main Mast upgrade. Operating as the primary structural point for signaling, long-range radio aerials, and the iconic "Day-Night" recognition lights, the mast was a signature vertical feature of the legendary 80-foot Elco motor torpedo boats. This replica is specifically designed for the Elco 103 Class (Hulls 103–196 and 314–388), capturing the exact naval architecture used during the brutal 1942–1943 Solomon Islands and Pacific campaigns. At this massive, studio-grade 1/16 scale, this premium component provides the vertical precision and historical structural authority required for a museum-grade display or a high-performance, active radio-controlled (RC) PT boat project.

Engineering Precision & Historical Fidelity

At a substantial 1/16 scale, a vessel's mast transitions from a basic background plastic rod into a dominant standalone visual anchor that bridges the deckhouse lines and the sky, exposing every cross-tree joint, rigging eyelet, and terminal fitting to close visual inspection. This replica mast captures the rugged structural profile of the historic Elco Naval Works blueprints with exquisite clarity, completely eliminating the soft contours, thick out-of-scale cross-sections, poor alignment slots, and tedious seam line filling typical of standard factory multi-piece injection-molded kit parts. Every individual parallel taper, signal halyard pulley guide, and structural reinforcement shroud is rendered with sharp, architectural clarity, providing a flawless structural foundation right out of the box and completely replacing the need for fragile scratch-built wooden spars or unstable brass tube soldering.

• Class-Specific Geometry: Engineered specifically for the early-to-mid war Elco 103 series, including the legendary PT-109 skippered by John F. Kennedy, ensuring your build reflects the exact structural specifications and height clearances of the era.
• High-Fidelity "Radio & Signal" Detail: Accurately reproduces the tapered main spar yardarm, the horizontal cross-trees for signal halyards, and the mounting tabs for the vital W/T (Wireless Telegraphy) aerial spreaders essential for authentic large-scale realism.
• True-to-Scale Component Profiles: Replicates the true structural wall dimensions of the original timber and steel construction, creating authentic deep shadow lines and realistic structural relief along the chart house and day cabin attachment points.
• Intelligent Hollowed Engineering: Expertly designed with an optimized, lightened internal casting profile to drastically reduce topside material weight across its significant vertical height. This smart layout ensures a highly rigid yet lightweight mast addition that mounts effortlessly without causing topside structural sagging, deckhouse warping, or center-of-gravity stability issues on active radio-controlled hulls.

Premium Material: High Detail Resin Grey

To ensure your PT boat’s primary vertical structure showcases the finest nautical textures, sharpest structural collars, and smooth horizontal base flanges, this primary offensive deck hardware asset is crafted from professional High Detail Resin Grey.

• Exceptional Feature Definition: The high-quality resin achieves superior multi-dimensional precision and a remarkably smooth surface finish, perfect for maintaining sharp, uniform profiles on complex geometric angles and long, slender structural elements without any distracting layer lines.
• Professional Foundation: Provides an ultra-smooth, non-porous base specifically optimized for high-quality marine primers, fine multi-toned metalizers, and optimal naval paint adherence.
• Superior Quality: Manufactured by distefan 3d print, ensuring clean surfaces, precise geometry alignment, and outstanding dimensional integrity for a luxurious, professional-grade finish.

Key Features & Specifications

• Accurate 1/16 Scale Precision: Precision-engineered for perfect, historically proportional integration with standard large-format 1/16 scale PT boat kits, radio-controlled operational models, premium museum-grade display projects, and custom scratch-built shipyard refits.
• Historically Correct 1942–1943 Configuration: Meticulously researched from original naval archives to ensure a seamless, flush fit with early-to-mid-war Elco 103 class day cabins and bridge bulkheads.
• Unpainted Finish: Arrives completely unpainted, providing a blank canvas for your creative vision. Customize the assembly to reflect factory-fresh shipyard coatings or heavily weathered, campaign-ready combat gear.
• RC Ready Structural Design: The lightweight, high-strength construction stands up to the realistic tension of scale rigging lines and wire antennas, making it perfect for active patrol boat models where reducing top-heavy weight is critical for high-speed handling.

A Canvas for Pacific Theater Artistry

Arriving in its raw resin finish, the PT-109 Main Mast serves as the ultimate starting point for advanced multi-layer painting, precise material color-blocking, and realistic maritime weathering.

• The Fleet Camouflage Scheme: Coat the primary mast trunk, cross-trees, and yardarms in authentic period-correct US Navy patrol craft colors—such as overall Ocean Green (Measure 31, Design 20L) common on South Pacific Elco boats operating out of Tulagi or Rendova, or a deep overall Dull Black or Dark Green scheme for nighttime stealth operations. The uniform component surfaces are ideal for clean color-blocking and maintaining razor-sharp paint boundaries against your running wire insulators or localized metallic fittings.
• Realistic Operational Weathering: High-relief deck accessories thrive on high-contrast texturing and subtle tonal filtering. Use rich dark oil washes or specialized enamel pin-washes to let deep shadows settle naturally around the rigging blocks, tabernacle bases, and structural joint brackets. Add highly realistic weathering effects like vertical orange-brown rust streaks weeping down from iron securing loops, subtle green or turquoise verdigris fading across brass aerial mounts, localized paint scraping and wood-grain "chafing" where running rigging lines rub continuously against the cross-trees during high-speed maneuvers, and heavy white salt-crusting patterns across forward-facing surfaces from frequent wave splash and tropical ocean spray to capture the true look of a veteran motor torpedo boat enduring grueling combat patrol cycles in the volatile Blackett Strait.
