1/192 USN Bow Winch

1/192 USN Bow Winch: Forecastle Anchor Handling & Mooring Machinery Fidelity

Bring an exceptional layer of technical density, structural authority, and naval seamanship realism to the forward forecastle, windlass deck, and anchor chain runs of your large-format American warship models with the masterfully engineered 1/192 Scale USN Bow Winch. Serving as an essential piece of heavy topside mechanical equipment across United States Navy battleships (Iowa, South Dakota, North Carolina, and modernized standard-type classes), heavy cruisers, and fleet auxiliaries throughout World War II, the specialized bow warping winch worked in direct conjunction with the anchor windlass wildcats to handle heavy hawser towing lines, mooring operations, and harbor docking evolutions. Sited on the centerline directly abaft the bullnose and forward of the hawsepipe spillers, this heavy-duty dual-head winch provided the immense mechanical advantage required to maneuver tens of thousands of tons of capital ship tonnage into pier berths and offshore fleet anchorages. Scaled to the precise 1/192 builder scale, this dedicated forecastle hardware upgrade faithfully captures the horizontal warping capstan heads, reduction gearboxes, electric-hydraulic drive motor housing, friction brake bands, and foundation bedplate of original Bureau of Ships (BuShips) builder blueprints with flawless structural fidelity.

Engineering Precision and Capital Ship Forecastle Seamanship Architecture

At 1/192 scale, forecastle deck machinery sits right at the prominent leading margin of the ship's bow silhouette, where thick, solid-molded plastic kit lumps, rounded gear casings, and indistinct cylinders immediately compromise an ambitious capital ship build. This replica USN bow winch captures the purposeful, heavy industrial geometry of wartime American shipyard machinery with surgical micro-clarity, eliminating the clumsy cross-sections, soft contours, and flash typical of mass-production plastic moldings or heavy white-metal castings. Deployed onto the forward weather deck of your 1/192 scale build, the winch assembly features true-to-scale physical relief, creating realistic physical shadow lines and deep mechanical contrast that standard kit placeholders cannot match.

• Museum-Quality Arsenal Replication: Developed using original technical layouts, historical U.S. Navy Bureau of Ships machinery specifications, and archival shipyard construction records to accurately reproduce the exact physical dimensions, gypsy head waist contours, gear housing flanges, and bedplate bolt patterns of operational naval warping winches.
• Prototypical 1/192 Fleet Scale: Specifically engineered for large-format 1/192 scale American battleship, cruiser, and fleet auxiliary models, custom scratch-built hulls, and museum-grade naval diorama presentations.

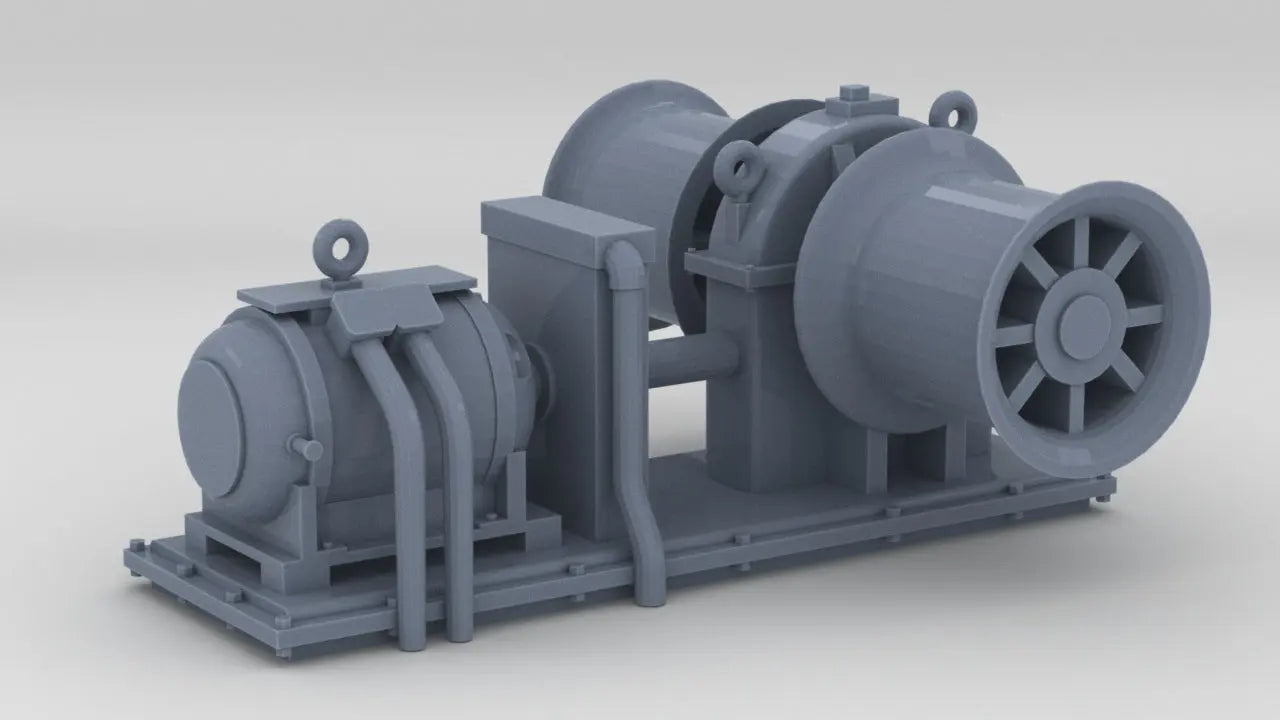

• Exposed Hardware & Mechanical Detail: Authentically captures the flared horizontal warping drum heads, ribbed central gear transmission casing, enclosed electric drive motor housing, manual foot-brake levers, hand control wheels, lubrication grease points, and heavy perimeter mounting bedplate with raised fastener impressions.
• True-to-Scale Volumetric Depth: Replicates the true physical three-dimensional presence of heavy structural cast iron and machined naval bronze, casting realistic deep shadows beneath the drum overhangs, between the gear housings, and around the deck mounting flange.
• Streamlined Deck Integration: Engineered with precision-molded flat base contact pads designed to seat cleanly, squarely, and securely flush onto standard 1/192 scale teak wood decking or steel margin plates, drastically reducing assembly friction and streamlining installation.
• Intelligent Structural Engineering: Expertly designed in High Detail Resin Grey with optimized micro-proportions to manage material mass while preserving maximum rigidity, ensuring razor-sharp mechanical edges and upright, warp-free capstan shafts that resist drooping, bending, or distortion over time.

Premium Material: High Detail Resin Grey

To satisfy the absolute highest demands of micro-detailed static presentation across delicate scale naval architecture and specialized deck handling machinery, this bow winch is crafted exclusively from premium High Detail Resin Grey.

• Exceptional Feature Definition: This premier formula achieves surgical multi-dimensional precision and an ultra-smooth, non-porous surface finish, capturing the finest mechanical facets—from scale-thin drum flanges and gear casing seam bolts to miniature control levers and base plate fasteners—with absolute sharpness and zero layer line distraction.
• Professional Foundation: Provides an ultra-smooth base specifically optimized for high-quality marine primers, fine-scale technical pin-washes, chipping mediums, micro-masking, and authentic wartime US Navy vertical finishes, ensuring flawless paint adherence.
• Superior Quality: Manufactured by distefan 3d print, ensuring clean surfaces, true axial symmetry, and outstanding structural integrity for a luxurious, professional-grade finish.

Key Features and Specifications

• Accurate 1/192 Scale Precision: Precision-engineered for seamless, historically proportional integration with standard 1/192 scale U.S. Navy battleship and cruiser kits, scratch-built hulls, and museum-grade static displays.
• Historically Authentic Fleet Hardware: Faithfully represents the physical configuration of the standardized horizontal bow warping winch utilized on U.S. Navy capital ships and fleet auxiliaries throughout World War II.
• Unified High-Integrity Architecture: Combines the dual warping heads, central reduction gearbox, drive motor, and bedplate into a single cohesive piece, eliminating tedious micro-assembly, misaligned drum shafts, and messy adhesive joints.
• Lightweight Rigidity: Features an engineered structural profile that maintains exceptional structural stiffness across fine shaft collars and drum overhangs while ensuring solid, flush attachment to the forward forecastle.
• Unpainted Finish: Arrives completely unpainted, providing an open canvas for custom finishing. Customize the winch to reflect standard U.S. Navy Measure 21 (overall 5-N Navy Blue), Measure 22 (5-H Haze Gray over 5-N Navy Blue), Measure 12, or Measure 32 dazzle camouflage patterns.
• The Definitive Forecastle Deck Overhaul: Replaces simplified, featureless plastic kit blocks with a sophisticated, mechanically correct three-dimensional representation of vital naval mooring and handling machinery.

A Canvas for Battle-Tested Fleet Artistry

Arriving in its raw finish, the 1/192 USN Bow Winch serves as the ultimate starting point for advanced multi-layer painting, precise component color-blocking, and realistic maritime weathering.

• The Navy Fleet Camouflage Scheme: Base-coat the central gear housing, electric drive motor, and bedplate in authentic period-correct vertical camouflage colors—such as overall 5-N Navy Blue for vessels in Measure 21, or 5-H Haze Gray for Measure 22 matching the adjacent forecastle bulkheads and deckhouse margins. Paint the horizontal warping drum heads in dark gunmetal, burnished steel, or dark graphite to simulate bare cast steel polished and scuffed by heavy Manila and wire mooring hawsers. Pick out manual brake levers, control wheels, and grease fittings in satin black, dark oily iron, or subtle bronze to provide crisp mechanical contrast against the surrounding naval camouflage.
• Realistic Frontline Operational Weathering: Sited on the open forward forecastle deck, this machinery was routinely buried under heavy green water crashing over the bow in heavy seas, in addition to enduring harsh ocean salt spray and abrasive line friction. Apply rich dark raw umber and soot black oil pin-washes into the gear casing seams, around the drum shafts, and along the perimeter bedplate bolts to establish deep structural shadow definition. Add realistic weathering touches like bare-metal silver highlights along the drum faces where hawsers ground against the steel, dried white sea-salt mineral crusting clustered in sheltered structural angles, and vertical rust streaks weeping downward from the base mounting bolts toward the teak deck waterways to capture the true look of an active combat warship operating in high-seas Pacific conditions.
