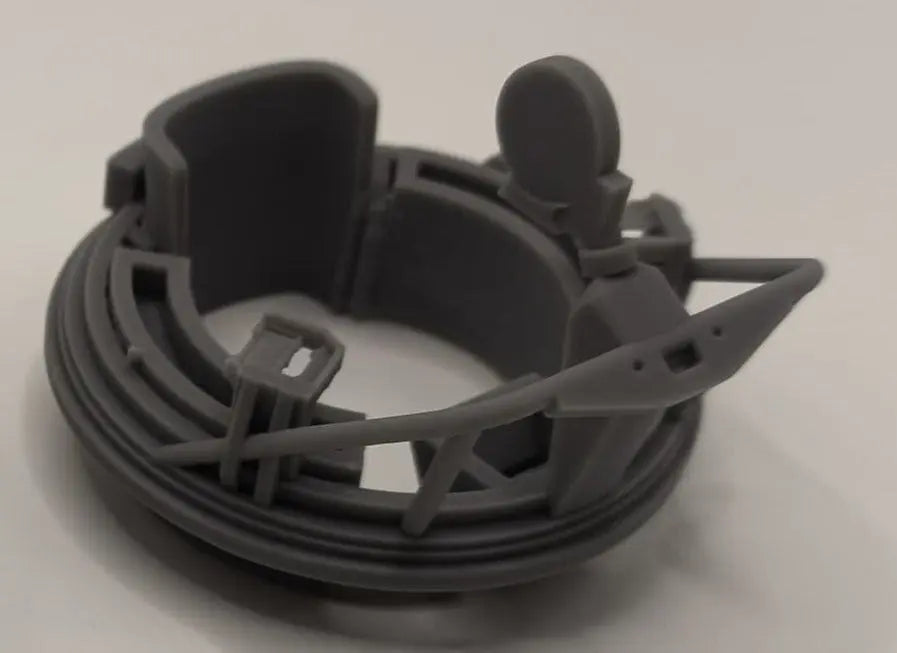

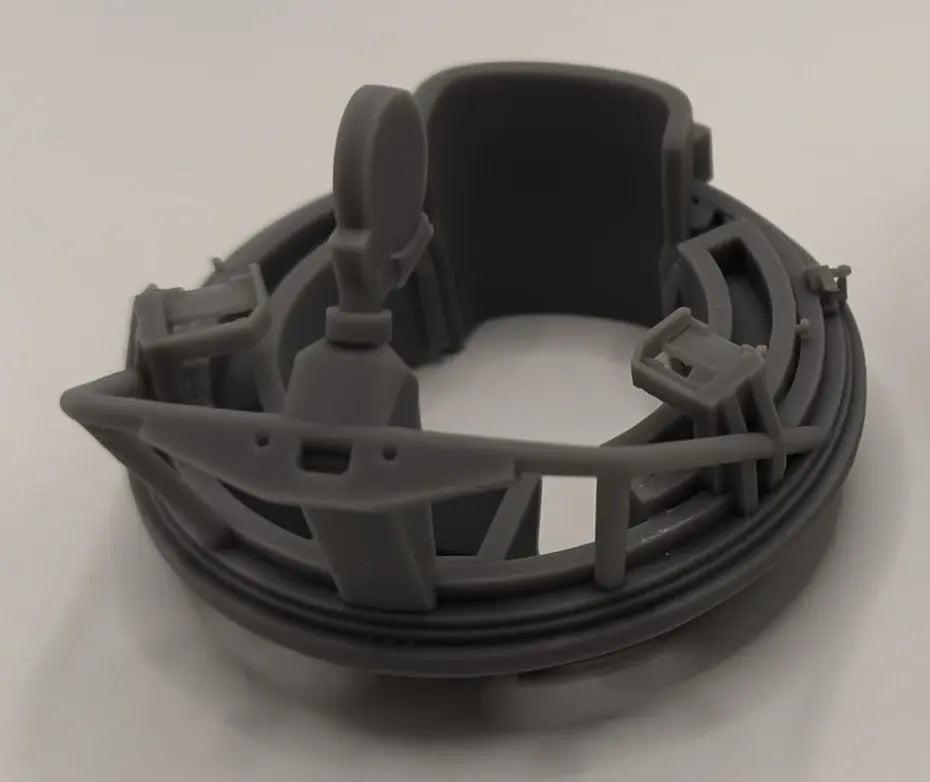

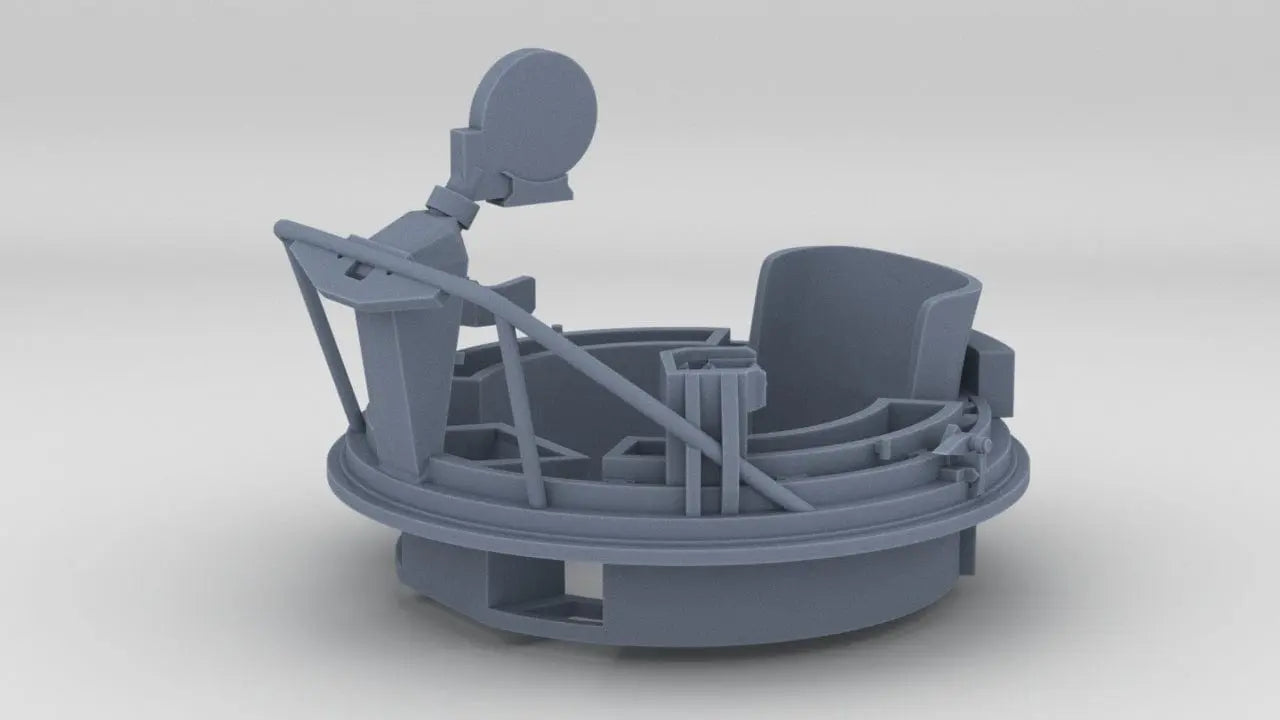

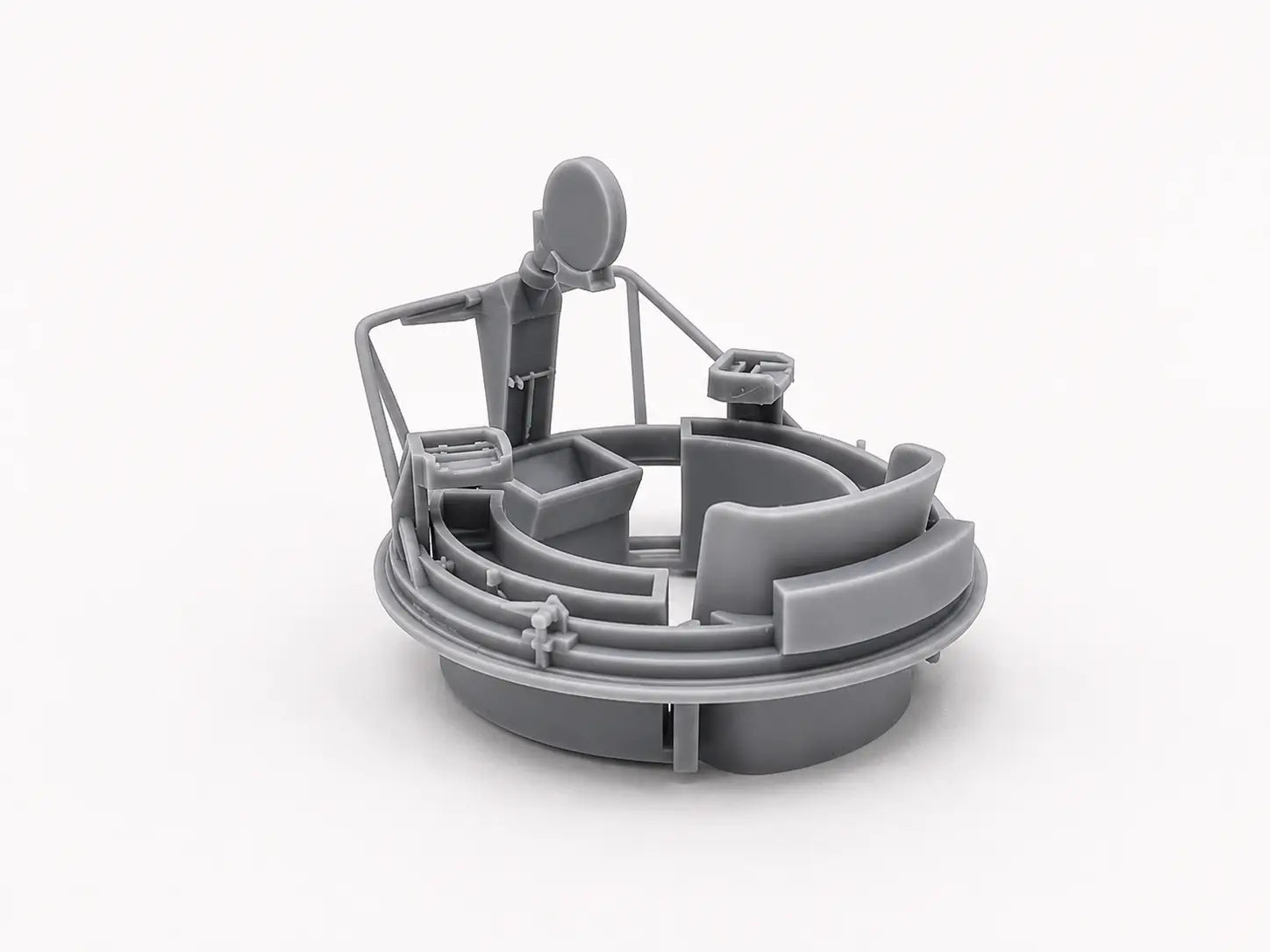

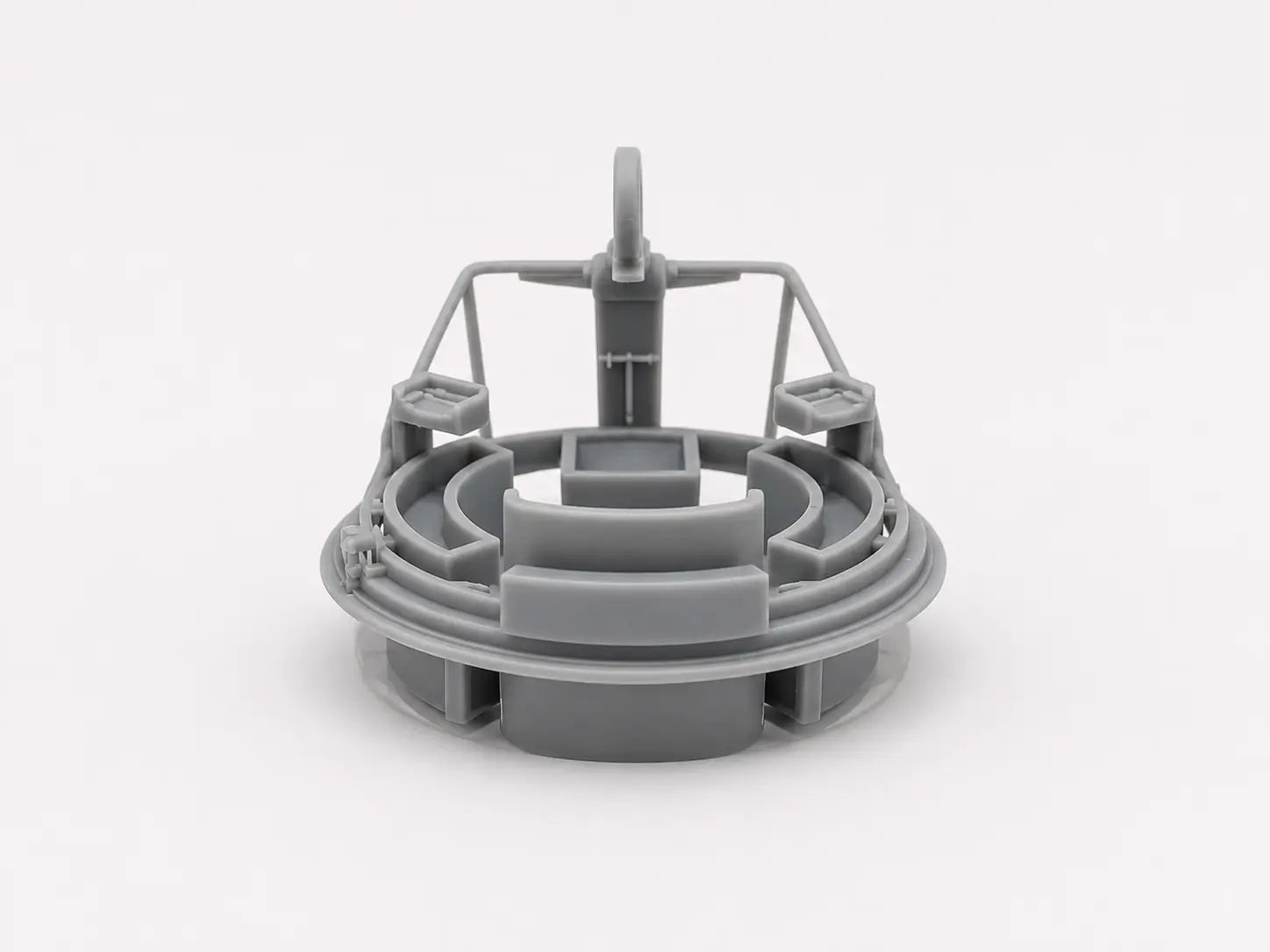

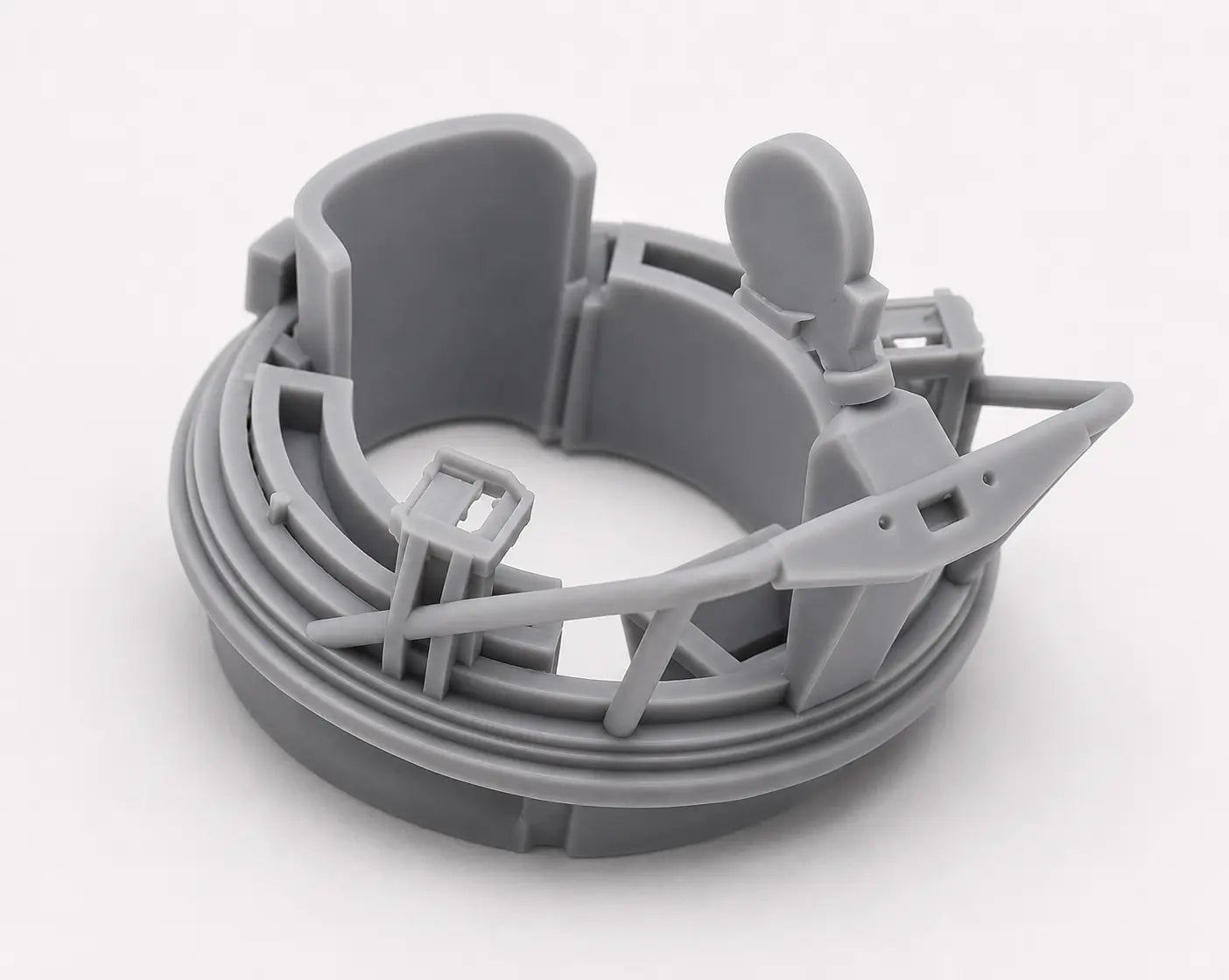

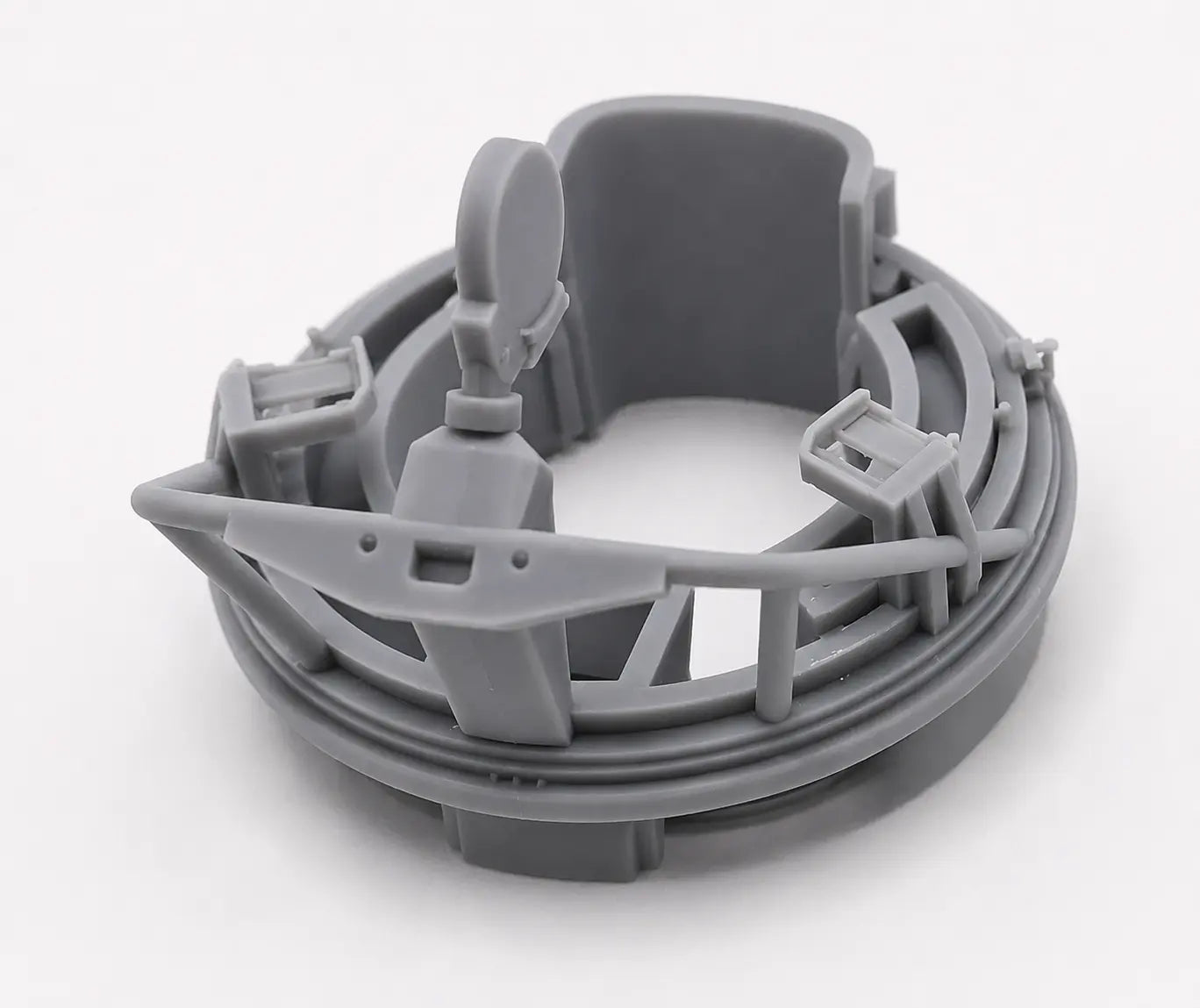

1/20 US PT Boat 109 Aft Turret Mount

1/20 US PT Boat 109 Aft Turret Mount: Midships Machine Gun Tub Realism

Bring an exceptional layer of technical density, structural authority, and historical precision to the midships deck house, machine gun tub, and primary defensive position of your large-format coastal patrol vessel model with the meticulously engineered 1/20 Scale US PT Boat 109 Aft Turret Mount. Housing twin .50 caliber Browning M2 heavy machine guns within an armored circular ring depression located on the starboard midships deckhouse roof, the aft gun turret provided critical close-range anti-aircraft protection and stern-sector defensive coverage for Elco 80-foot Motor Torpedo Boats operating across the South Pacific. At a massive 1/20 scale, this standalone upgrade set captures the circular turret ring, Scarff-ring or twin cradle assembly, gun shield geometry, operator footings, and ammunition box brackets of original Elco Naval Yard outfitting blueprints with flawless structural clarity, making it an indispensable asset for discerning maritime shipwrights anchoring their veteran PT 109 representations.

Engineering Precision and Elco MTB Armament Fidelity

At a dominant 1/20 scale, primary gun mounts and crew stations step completely out of the background to become central visual anchors along the superstructure, exposing every millimeter of shield curvature, mounting ring bracketry, and ammunition feed tray detail to close visual-spatial inspection. This replica aft turret mount captures the functional industrial profile of historic American naval weaponry with exquisite clarity, completely eliminating the soft features, lack of three-dimensional depth, solid-blocked tub interiors, and tedious flash cleanup typical of standard factory injection-molded plastic kit parts or soft white metal castings. Deployed onto the aft deckhouse ring depression of your 1/20 scale model, every individual element features true-to-scale physical contours, creating realistic physical shadow lines and deep visual relief that basic kit parts cannot match.

• Museum-Quality Yard Replication: Developed using original technical layouts, historical Elco Naval Yard outfitting specifications, and archival blueprint configurations to accurately reproduce the exact physical dimensions, turret ring depth, and gun shield angles of active WWII patrol boat operations.
• Exposed Industrial Ring & Cradle Detail: Authentically captures the circular training track, elevation cradle mechanisms, operator footrests, and ready-service ammunition box holders, preserving structural transparency and realistic spatial proportions.
• True-to-Scale Volumetric Depth: Replicates the true physical thickness of the protective gun shield plating, turret coaming, and ammo chest brackets, creating authentic deep shadow lines against the deckhouse roof planking and realistic mechanical contrast.
• Streamlined Deckhouse Integration: Features an engineered lower ring base designed to seat cleanly into standard 1/20 scale Elco 80-foot PT boat aft turret sockets, drastically reducing assembly friction and streamlining installation.
• Intelligent Hollowed Engineering: Expertly designed with an optimized, hollowed-out internal structure to manage material weight across its prominent 1/20 scale footprint. This smart configuration ensures an exceptionally lightweight addition that sits effortlessly on the deckhouse roof without causing structural stress, sagging, or alignment issues on high-end static presentations.

Premium Material Selection: High Detail Resin (Grey/White)

To satisfy the absolute highest demands of micro-detailed static presentation across this primary defensive assembly, this aft turret mount is crafted from premium High Detail Resin (available in Grey or White formulas).

• Exceptional Feature Definition: This premier formula achieves surgical multi-dimensional precision and an ultra-smooth, non-porous surface finish, capturing the finest mechanical facets—from delicate training ring teeth to subtle mounting bolt heads—with absolute sharpness and zero layer line distraction.
• Professional Foundation: Provides an ultra-smooth base specifically optimized for high-quality marine primers, complex multi-toned naval camouflage masking, and fine-scale technical pin-washes, ensuring flawless paint adherence.
• Superior Quality: Manufactured by distefan 3d print, ensuring clean surfaces, precise geometry alignment, and outstanding dimensional integrity for a luxurious, professional-grade finish.

Key Features and Specifications

• Accurate 1/20 Scale Precision: Precision-engineered for perfect, historically proportional integration with standard traditional 1/20 scale US PT Boat 109 and Elco 80-foot Motor Torpedo Boat models, custom large-format conversions, and museum-grade static displays.
• Historically Authentic Fleet Hardware: Authentically represents the physical configuration of the aft machine gun turret mount utilized aboard US Navy PT boats during World War II, including PT 109 in the Solomon Islands campaign.
• Unpainted Finish: Arrives completely unpainted, providing a blank canvas for your creative vision. Customize the assembly to reflect Tropical Green, Deck Gray, or specialized South Pacific camouflage schemes.
• The Definitive Superstructure Overhaul: Replaces simplified, blocky kit moldings or soft metal castings with a sophisticated, historically correct three-dimensional representation of vital naval weaponry architecture.

A Canvas for Battle-Tested Fleet Artistry

Arriving in its raw finish, the 1/20 US PT Boat 109 Aft Turret Mount serves as the ultimate starting point for advanced multi-layer painting, precise component color-blocking, and realistic maritime weathering.

• The Fleet Camouflage Scheme: Coat the outer turret coaming, gun shield, and mounting framework in authentic period-correct US Navy colors—such as Tropical Green or Dark Gray depending on the specific operational period of your PT 109 build—ensuring the assembly blends seamlessly into the ship's overall superstructure scheme. For the twin .50 caliber gun cradles, training tracks, and ammunition boxes, apply a base of dark gunmetal, parkerized steel, or olive drab for ammo canisters. Detail operator handgrips in bare steel or dark non-skid black to create striking mechanical depth.
• Realistic Frontline Operational Weathering: High-relief gun positions thrive on high-contrast texturing and pin-wash filtering. Use rich dark raw umber or black oil washes to let deep shadows settle naturally around the training ring track, inside the shield interior, and along the ammunition tray brackets. Add highly realistic weathering effects like spent brass casing scratches along the turret floor, subtle paint chipping along high-contact shield edges, faint white salt-crusting patterns dried onto weather-exposed metal faces from Pacific sea spray, and minor rust trickles weeping down to the deckhouse roof to capture the true look of vital naval hardware enduring intense tropical combat deployments.
