1/96 US Navy Ship's Engine Order Telegraph v3

1/96 US Navy Ship's Engine Order Telegraph v3: Wheelhouse Propulsion Command Fidelity

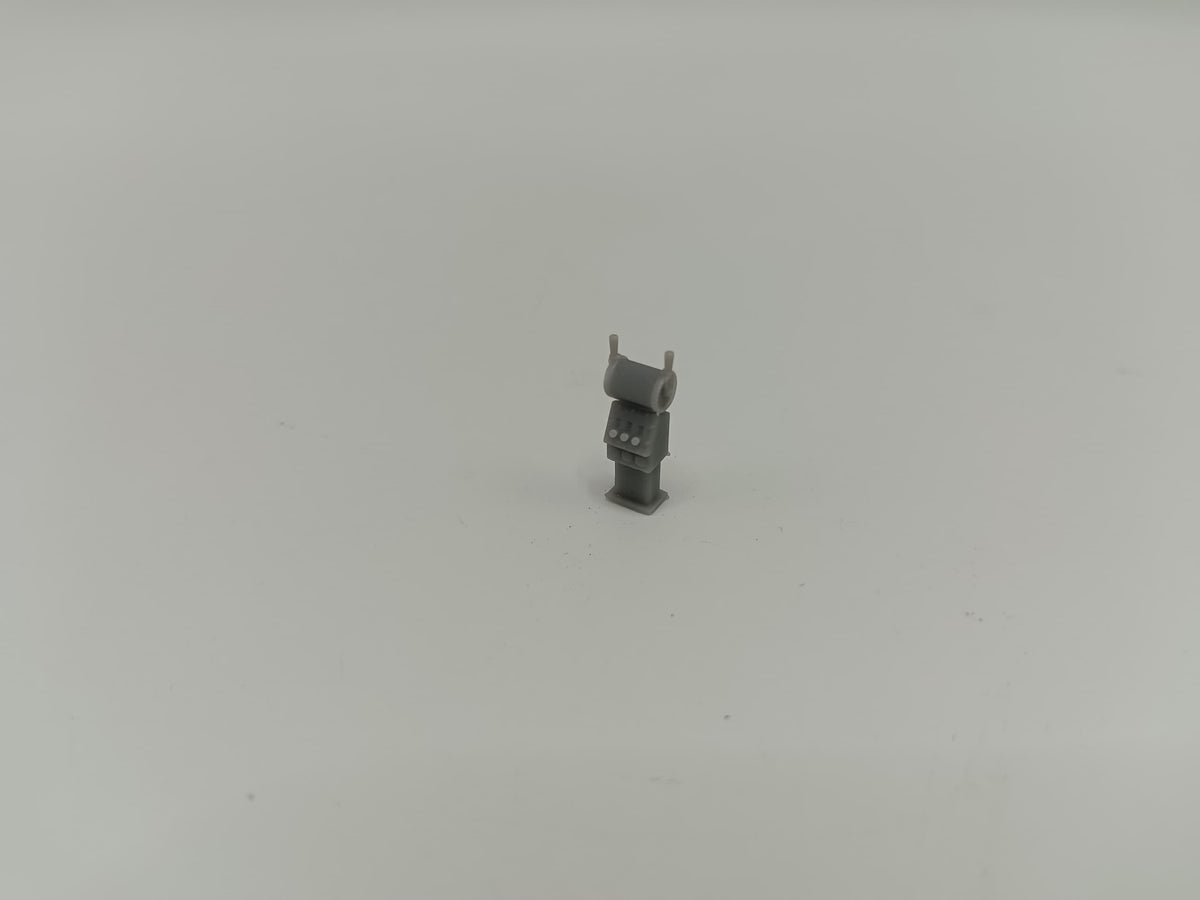

Bring an exceptional layer of technical density, structural authority, and naval combat realism to the pilot house interiors, flying bridge wings, and conning stations of your large-format combatant models with the masterfully engineered 1/96 Scale U.S. Navy (USN) Ship's Engine Order Telegraph v3. Serving as the primary electro-mechanical bridge-to-engine-room signaling conduit across virtually all United States Navy combatants throughout World War II and the postwar era - including Fletcher, Gearing, and Sumner destroyers, cruisers, battleships, and fleet auxiliaries - the Engine Order Telegraph (EOT, or "Chadburn") stood as the nerve center of propulsion control. Operated directly by the Officer of the Deck (OOD) or helmsman during high-stakes formation maneuvers, torpedo evasions, and combat turns, moving its weighted brass brass levers instantly rang bells and transmitted operational speed orders - from "Ahead Flank" to "Full Astern" - directly down to the throttlemen deep in the engine spaces. Standing at an authentic 15.00 mm (0.59 in) in overall height with a casing width of 5.40 mm (0.21 in), this Version 3 (v3) upgrade captures the dual-lever command handles, circular dial faces with speed quadrant bevels, central indicator needles, electrical conduit trunking, and flanged pedestal base of original Bureau of Ships (BuShips) engineering blueprints with flawless structural clarity, making it an indispensable asset for discerning maritime shipwrights anchoring their veteran fleet representations.

Engineering Precision and Wheelhouse Command Outfitting Fidelity

At an expansive 1/96 scale (the classic 1/8-inch-to-the-foot naval builder scale), wheelhouse control stands step completely out of the background to become primary mechanical focal points visible through open bridge windows, hatches, and flying bridge railings, exposing every millimeter of dial casing curvature, lever grip relief, and pedestal base bolting to close visual-spatial inspection. Measuring precisely 15.00 mm tall by 5.40 mm wide, this Version 3 replica captures the functional industrial profile of historic American naval wheelhouse machinery with surgical clarity, completely eliminating the soft features, blobby solid-molded plastic mounds, missing lever linkages, and tedious seam line cleanup typical of standard factory injection-molded plastic kits or soft white metal castings. Deployed inside the wheelhouse or onto an open bridge station of your 1/96 scale build, the assembly features true-to-scale physical contours, creating realistic physical shadow lines and deep visual relief that basic kit placeholders cannot match.

• Museum-Quality Arsenal Replication: Developed using original technical layouts, historical U.S. Navy Bureau of Ships builder blueprints, and archival shipyard electrical outfitting schematics to accurately reproduce the exact physical dimensions - 15.00 mm (0.59 in) height and 5.40 mm (0.21 in) width - alongside authentic telegraph lever geometry and pedestal footing contours of active wartime combat units.
• Prototypical Fleet Destroyer & Capital Warship Scope: Specifically tailored for large-format 1/96 scale U.S. Navy combatants, including Fletcher and Benson destroyers, Cleveland and Baltimore cruisers, Iowa-class battleships, custom scratch-built RC warship hulls, and museum-grade maritime diorama displays.
• Refined Version 3 (v3) Architectural Profile: Engineered to capture the late-war dual-face cylindrical head design with extended command levers, reinforced indicator bezels, and clean pedestal mounting geometry, reflecting the most common production variant fitted to wartime combatants.
• Exposed Hardware & Mechanical Detail: Authentically captures the circular double-sided instrument head, twin weighted control lever handles with grip knobs, raised dial face rims with quadrant section breaks, central internal pointer pivots, and the flanged tubular pedestal base with perimeter deck-mounting bolt impressions, preserving structural sharpness and realistic spatial proportions.
• True-to-Scale Volumetric Depth: Replicates the true physical three-dimensional presence of heavy naval electrical gear, casting realistic deep shadows beneath the overhanging lever arms, inside the dial bevels, and around the pedestal base against deck planking or non-skid flats with authentic mechanical contrast.
• Streamlined Deck Integration: Engineered with a precision-molded flat base contact pad designed to seat cleanly and securely flush onto plastic, wood, or fiberglass deck surfaces, drastically reducing assembly friction and streamlining installation.
• Intelligent Hollowed Engineering: Expertly designed in High Detail Resin (available in Grey or White formulas) with an optimized, lightweight structural profile to manage material mass across fine-scale components. This configuration ensures an exceptionally rigid, warp-free telegraph column with dead-straight command levers that resist bending or distortion over time.

Premium Material: High Detail Resin (Grey/White)

To satisfy the absolute highest demands of micro-detailed static presentation across delicate scale bridge hardware and fine instrumentation, this USN Engine Order Telegraph v3 is crafted from premium High Detail Resin (available in Grey or White formulas).

• Exceptional Feature Definition: This premier formula achieves surgical multi-dimensional precision and an ultra-smooth, non-porous surface finish, capturing the finest mechanical facets - from razor-sharp dial quadrant rims to micro-fine lever shafts and grip knobs - with absolute sharpness and zero layer line distraction.
• Professional Foundation: Provides an ultra-smooth base specifically optimized for high-quality marine primers, fine-scale technical pin-washes, micro-masking, and authentic wartime US Navy interior and exterior finishes, ensuring flawless paint adherence.
• Superior Quality: Manufactured by distefan 3d print, ensuring clean surfaces, straight vertical alignment, and outstanding dimensional integrity for a luxurious, professional-grade finish.

Key Features and Specifications

• Accurate 1/96 Scale Precision: Precision-engineered with exact historical measurements - Height: 15.00 mm (0.59 in), Width: 5.40 mm (0.21 in) - for seamless, historically proportional integration with standard 1/96 scale (1/8" = 1') U.S. Navy warship kits, custom scratch-built wheelhouses, and museum-grade static displays.
• Historically Authentic Fleet Hardware: Authentically represents the physical configuration of the standardized Version 3 double-face Engine Order Telegraph deployed across U.S. Navy warships and auxiliary craft throughout World War II and the postwar era.
• Bridge Station Ergonomics: Sized with authentic physical clearances to sit directly beside the ship's helm, pelorus, or chart table, realistically accommodating standing 1/96 scale bridge officer and helmsman figures during propulsion drills.
• Unpainted Finish: Arrives completely unpainted, providing a blank canvas for your creative vision. Customize the assembly to reflect polished wheelhouse brass, satin black instrument enamel, vertical 5-H Haze Gray, or weathered open-bridge finishes.
• The Definitive Bridge Outfitting Overhaul: Replaces simplified, featureless kit castings with a sophisticated, historically correct three-dimensional representation of vital naval propulsion command architecture.

A Canvas for Battle-Tested Fleet Artistry

Arriving in its raw finish, the 1/96 US Navy Ship's Engine Order Telegraph v3 serves as the ultimate starting point for advanced multi-layer painting, precise component color-blocking, and realistic maritime weathering.

• The Fleet Navigational Scheme: Base-coat the cylindrical pedestal stand and lower mounting flange in authentic period-correct vertical camouflage or interior enamel - such as standard 5-H Haze Gray or 5-N Navy Blue for open flying bridges, or semi-gloss sea-foam green or satin off-white for enclosed pilot houses. Finish the circular dial casing, bezel rings, and dual command levers in polished naval brass, burnished bronze, or semi-gloss black marine instrument enamel. Detail the dial face in crisp off-white or aged ivory, picking out the ahead (white/green) and astern (red) speed quadrant sectors, degree ticks, and indicator needles in fine black and red. Place a tiny drop of clear gloss acrylic varnish over each dial face to simulate the crystal-clear glass instrument face.
• Realistic Frontline Operational Weathering: High-relief bridge hardware thrives on rich washes, textural filters, and environmental staining. Apply rich dark raw umber and soot black oil washes into the lever pivot joints, around the dial bezel rim, and beneath the pedestal mounting ring bolts to create deep structural shadows. Add highly realistic weathering effects like bare-metal chipping and wear along the lever grip knobs where bridge officers repeatedly grasped the handles during high-tempo maneuvering, subtle green verdigris staining nestled into brass joints from humid sea air, dried white salt spray mineral crusting encrusted across windward faces on open flying bridge mountings, and delicate vertical rust or grime streaks weeping downward from the base toward deck waterways to capture the true look of vital frontline propulsion equipment enduring relentless high-seas combat operations.
