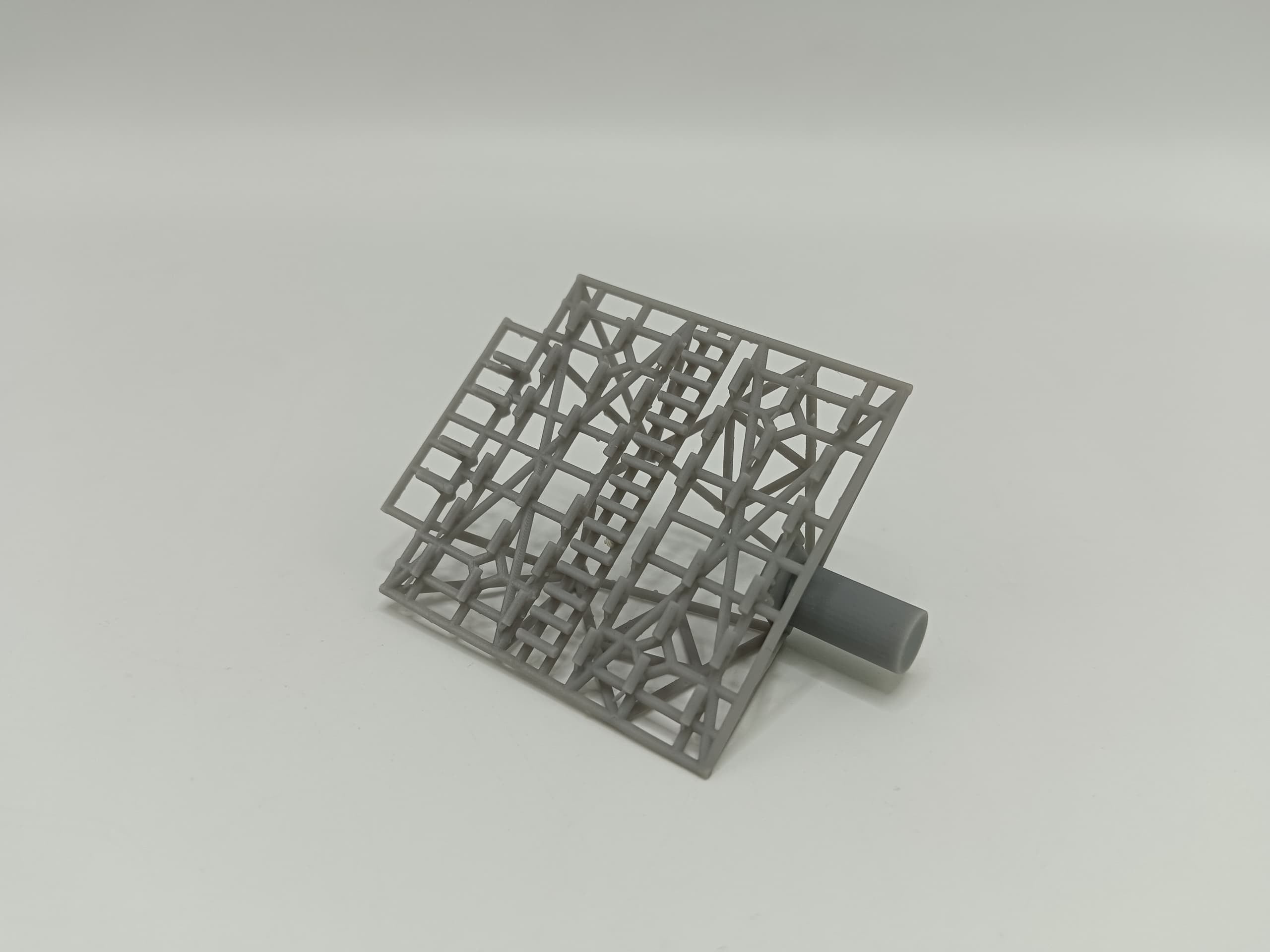

1/96 US SK Air Search Radar

1/96 US SK Air Search Radar: Mainmast Electronic Warfare Realism

Bring an exceptional layer of technical density, structural authority, and historical precision to the upper mainmast, radar platforms, and tripod superstructures of your large-format naval vessel models with the meticulously engineered 1/96 Scale U.S. Navy (USN) SK Air Search Radar. Serving as the primary long-range early warning radar system deployed aboard World War II U.S. Navy battleships, aircraft carriers, heavy cruisers, and light cruisers - most notably the Cleveland-class (CL-55) - the massive "bedspring" SK antenna array detected incoming enemy aircraft formations at distances exceeding 100 miles. At a dominant 1/96 scale, this standalone upgrade captures the open-grid mattress antenna array, dipole dipstick radiators, structural rear support truss work, turning gear pedestal, and wave-guide feed lines of original Navy Yard and Bureau of Ships blueprints with flawless structural clarity, making it an indispensable asset for discerning maritime shipwrights anchoring their veteran fleet representations.

Engineering Precision and Cleveland-Class Electronics Fidelity

At a dominant 1/96 scale, masthead radar arrays and electronic warfare gear step completely out of the background to become primary visual focal points atop the superstructure, exposing every millimeter of grid lattice spacing, support truss geometry, dipole alignment, and motor pedestal bolting to close visual-spatial inspection. This replica radar antenna captures the complex industrial profile of historic American naval radar technology with exquisite clarity, completely eliminating the soft features, solid-blocked lattice voids, fused dipole rows, and tedious multi-piece seam line cleanup typical of standard factory injection-molded plastic kit parts or photo-etched brass assemblies that lack true volumetric roundness and depth. Deployed onto the mainmast platform of your 1/96 scale build, every individual structural member features true-to-scale physical contours, creating realistic physical shadow lines and deep visual relief that basic plastic placeholders cannot match.

• Museum-Quality Yard Replication: Developed using original technical layouts, historical U.S. Navy Bureau of Ships specifications, and archival blueprint configurations to accurately reproduce the exact physical dimensions, lattice framework angles, and feed-horn geometry of active WWII fleet operations.
• Exposed Lattice & Antenna Detail: Authentically captures the open-grid mattress frame, individual dipole radiator elements, rear structural support framing, rotary joint housing, and heavy pedestal base, preserving structural sharpness and realistic spatial proportions.
• True-to-Scale Volumetric Depth: Replicates the true physical projection of the heavy radar reflector frame and rear support trusses, creating authentic deep shadow lines against skyward backgrounds and mast platforms with realistic mechanical contrast.
• Streamlined Masthead Integration: Features an engineered lower pedestal mounting base designed to seat cleanly onto standard 1/96 scale mast platforms, tripod tops, or custom brass mast fittings, drastically reducing assembly friction and streamlining installation.
• Intelligent Hollowed Engineering: Expertly designed in High Detail Resin Grey with an optimized, hollowed-out internal structure to manage material weight across its prominent 1/96 scale footprint. This smart configuration ensures an exceptionally lightweight assembly that sits effortlessly at high masthead positions without causing top-heavy strain, mast flex, or alignment issues on high-end static or operational RC presentations.

Premium Material: High Detail Resin Grey

To satisfy the absolute highest demands of micro-detailed static presentation across this primary electronic warfare sensor assembly, this SK air search radar is crafted exclusively from premium High Detail Resin Grey.

• Exceptional Feature Definition: This premier formula achieves surgical multi-dimensional precision and an ultra-smooth, non-porous surface finish, capturing the finest mechanical facets—from razor-thin grid lattice bars to subtle mounting bolt heads—with absolute sharpness and zero layer line distraction.
• Professional Foundation: Provides an ultra-smooth base specifically optimized for high-quality marine primers, fine-scale technical pin-washes, and multi-toned US Navy camouflage finishes, ensuring flawless paint adherence.
• Superior Quality: Manufactured by distefan 3d print, ensuring clean surfaces, precise geometry alignment, and outstanding dimensional integrity for a luxurious, professional-grade finish.

Key Features and Specifications

• Accurate 1/96 Scale Precision: Precision-engineered for perfect, historically proportional integration with standard traditional 1/96 scale US Navy warship models (specifically USS Cleveland CL-55 and sister cruisers), custom conversions, operational RC hulls, and museum-grade static displays.
• Historically Authentic Fleet Hardware: Authentically represents the physical configuration of the SK air search radar antenna array deployed across American capital ships and cruisers during World War II.
• Unpainted Finish: Arrives completely unpainted, providing a blank canvas for your creative vision. Customize the assembly to reflect Measure 21 overall Navy Blue, Measure 22 graded camouflage, Measure 32 patterns, or post-war Haze Gray finishes.
• The Definitive Electronics Overhaul: Replaces simplified, blocky kit moldings or flat photo-etch parts with a sophisticated, historically correct three-dimensional representation of vital naval radar architecture.

A Canvas for Battle-Tested Fleet Artistry

Arriving in its raw finish, the 1/96 US SK Air Search Radar serves as the ultimate starting point for advanced multi-layer painting, precise component color-blocking, and realistic maritime weathering.

• The Fleet Camouflage Scheme: Coat the structural lattice frame, rear support trusses, and motor pedestal in authentic period-correct US Navy vertical surface colors—such as 5-N Navy Blue, 5-O Ocean Gray, or 5-H Haze Gray depending on your USS Cleveland model's operational camouflage scheme—ensuring the hardware blends seamlessly into the masthead profile. Detail the central wave-guide feed lines, rotary joint collars, and coaxial connections in dark graphite, Parkerized steel, or dark iron to create striking mechanical depth.
• Realistic Frontline Operational Weathering: High-relief lattice structures thrive on high-contrast texturing and pin-wash filtering. Use rich dark raw umber or black oil washes to let deep shadows settle naturally between the grid lattice joints, behind dipole elements, and around the pedestal base bolts. Add highly realistic weathering effects like dark heavy grease residue around the rotary turning gear joint, subtle paint scuffs along high-contact maintenance access points, and faint white salt-crusting patterns dried onto weather-exposed antenna faces from sea spray to capture the true look of vital naval electronics enduring intense frontline Pacific deployments.
