1/144 USN Mk.19 Fire Control Director

1/144 USN Mk.19 Fire Control Director: Mid-Scale Fleet Gunnery Optics Fidelity

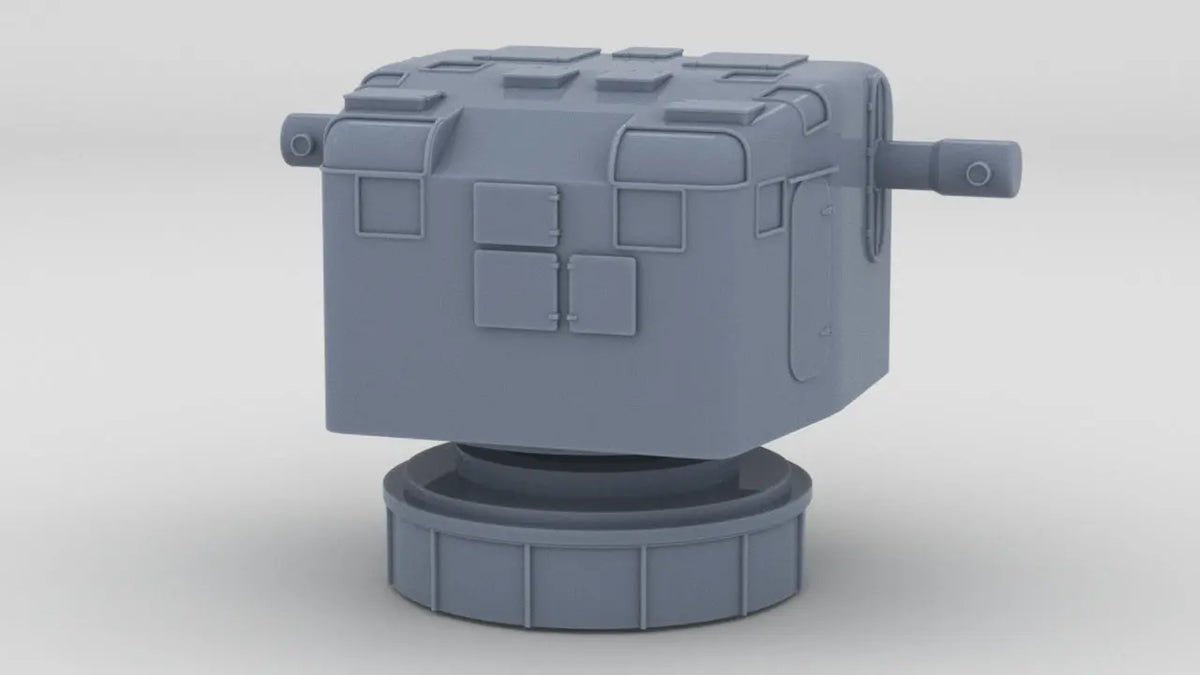

Bring an exceptional layer of technical density, structural authority, and naval combat realism to the superstructure decks, director tubs, and bridge wings of your mid-scale American warship models with the masterfully engineered 1/144 Scale USN Mk.19 Fire Control Director. Developed and fielded by the U.S. Navy Bureau of Ordnance during the late 1920s and 1930s, the Mark 19 director was a pivotal dual-purpose optical fire control station engineered to compute target range, bearing, and elevation for secondary surface and anti-aircraft batteries—principally the frontline 5-inch/25 caliber gun. Fitted across modernizing dreadnought battleships and early treaty heavy cruisers, the Mk.19 served on the front lines through the opening crucible of World War II, directing gunfire during the attack on Pearl Harbor, early Pacific carrier escort sorties, and fierce surface actions throughout the Solomons. Scaled to the versatile 1/144 naval builder scale, this dedicated standalone ordnance accessory captures the open-topped shield wall, transverse stereoscopic rangefinder tube, pointer and trainer sighting optics, crew platform, and rotating azimuth foundation ring of original Bureau of Ordnance (BuOrd) blueprints with flawless structural fidelity.

Engineering Precision and Fleet Gunnery Fire Control Fidelity

At 1/144 scale, optical fire control directors step out of the background to become prominent mechanical centerpieces, exposing every millimeter of shield plating thickness, rangefinder prism hoods, tracking handwheels, and foundation bolt circles to close visual inspection. This replica Mark 19 director captures the purposeful, open-well industrial silhouette of early American naval artillery computers with surgical clarity, eliminating the thick solid plastic tubs, missing optical tubes, soft molded handwheels, and tedious seam scraping common to mass-market kits or heavy white metal castings. Deployed within dedicated gun tubs on tripod masts, bridge wings, or deckhouse platforms of your 1/144 scale build, the director assembly features true-to-scale physical contours, creating realistic physical shadow lines and deep mechanical contrast that basic kit placeholders cannot match.

• Museum-Quality Arsenal Replication: Developed using original technical layouts, historical U.S. Navy Bureau of Ordnance blueprints, and archival shipyard outfitting sheets to accurately reproduce the exact physical dimensions, open shield wall contours, optical tube diameter, and turntable pedestal proportions of operational Mk.19 systems.
• Versatile 1/144 Warship Scope: Perfectly suited for large-format 1/144 scale naval combatants, custom scratch-built RC warships, bridge cutaway dioramas, and display vignettes representing U.S. Navy capital ships and cruisers in their pre-war and early-WWII fits:
  • Standard-Type Battleships: USS Nevada (BB-36), USS Oklahoma (BB-37), USS Pennsylvania (BB-38), USS Arizona (BB-39), USS Tennessee (BB-43), USS California (BB-44), USS Colorado (BB-45), USS Maryland (BB-46), and USS West Virginia (BB-48).
  • Treaty Heavy Cruisers: USS Pensacola (CA-24), USS Salt Lake City (CA-25), USS Augusta (CA-31), USS Chester (CA-27), and USS Chicago (CA-29).
• Exposed Hardware & Optical Detail: Authentically captures the transverse stereoscopic rangefinder tube, end-objective prism hoods, internal pointer and trainer periscope sights, elevation and training gear drives, crew standing footplates, and the flanged turntable base ring with raised fastener bolt impressions.
• True-to-Scale Volumetric Depth: Replicates the true physical three-dimensional presence of open-topped gunnery directors, casting realistic deep shadows inside the open operator cockpit, beneath the transverse optical crossbar, and around the circular pedestal wall against surrounding non-skid deck surfacing.
• Streamlined Deck Integration: Engineered with a precision-molded flat base contact pad designed to seat cleanly, squarely, and securely flush into standard 1/144 scale director tubs or raised superstructure platforms, drastically reducing assembly friction and streamlining installation.
• Intelligent Material Optimization: Expertly designed in High Detail Resin Grey with an optimized structural profile to manage material mass while preserving maximum rigidity, ensuring crisp, warp-free shield walls and dead-straight optical tubes that resist bending, sagging, or distortion over time.

Premium Material: High Detail Resin Grey

To satisfy the absolute highest demands of micro-detailed static presentation across delicate scale fire control gear and specialized naval optical instruments, this Mark 19 director is crafted exclusively from premium High Detail Resin Grey.

• Exceptional Feature Definition: This premier formula achieves surgical multi-dimensional precision and an ultra-smooth, non-porous surface finish, capturing the finest mechanical facets—from paper-thin shield rim bevels to miniature periscope viewing ports and turntable flange bolt heads—with absolute sharpness and zero layer line distraction.
• Professional Foundation: Provides an ultra-smooth base specifically optimized for high-quality marine primers, fine-scale technical pin-washes, micro-masking, and authentic pre-war and early-war US Navy camouflage finishes, ensuring flawless paint adherence.
• Superior Quality: Manufactured by distefan 3d print, ensuring clean surfaces, straight optical concentricity, and outstanding dimensional integrity for a luxurious, professional-grade finish.

Key Features and Specifications

• Accurate 1/144 Scale Precision: Precision-engineered for seamless, historically proportional integration with standard 1/144 scale capital ship and cruiser kits, scratch-built hulls, bridge conversions, and museum-grade static displays.
• Historically Authentic Fleet Hardware: Faithfully represents the physical configuration of the standardized Mark 19 fire control director operated across U.S. Navy battleships and heavy cruisers during the 1930s and through the pivotal battles of 1941–1942.
• Open-Cockpit Realism: Features a fully hollowed-out interior crew compartment with visible operator stations, elevation handwheels, and optical equipment mounts.
• Hollowed Lightweight Design: Features an optimized structural geometry that minimizes top-heavy weight for towering mast and bridge stability while maintaining maximum structural stiffness across fine shield walls.
• Unpainted Finish: Arrives completely unpainted, providing an open canvas for custom finishing. Customize the assembly to reflect standard pre-war No. 5 Standard Navy Gray, wartime Measure 1, Measure 21 (overall 5-N Navy Blue), Measure 22, or weathered sea-duty finishes.
• The Definitive Fire Control Overhaul: Replaces simplified, solid-block plastic placeholders with a sophisticated, open-well, historically correct three-dimensional representation of vital naval artillery calculation hardware.

A Canvas for Battle-Tested Fleet Artistry

Arriving in its raw finish, the 1/144 USN Mk.19 Fire Control Director serves as the ultimate starting point for advanced multi-layer painting, precise component color-blocking, and realistic maritime weathering.

• The Fleet Gunnery Scheme: Base-coat the cylindrical rotating pedestal, exterior splinter shields, and rangefinder bar in authentic period-correct vertical camouflage colors—such as pre-war Light Gray (5-L) or early-war 5-H Haze Gray / 5-D Dark Gray matching the vessel's upper works. Paint the interior cockpit walls and floor plates in anti-glare Deck Blue (20-B) or dark matte gray to reflect glare-suppression practices. Pick out the optical objective lenses and sighting periscope ends in gloss black with jewel-clear lens gloss drops to simulate optical glass, detailing the handwheels and training mechanisms in dark gunmetal, burnished steel, or oily graphite.
• Realistic Frontline Operational Weathering: High-elevation fire control stations thrive on rich washes, textural filters, and environmental staining. Apply rich dark raw umber and soot black oil washes into the open cockpit corners, around the rangefinder tube brackets, and along the turntable base ring to establish deep structural shadows. Add realistic weathering effects like bare-metal scuffs along the shield rim and footplates where crew boots scraped during intense battle-stations drills, subtle gunpowder and stack exhaust soot trailing across forward-facing facets, dried white salt spray mineral crusting layered heavily across the windward optical housings, and vertical rust streaks weeping downward from turntable scuppers to capture the true look of a frontline warship standing vigilant watch across contested Pacific waters.
