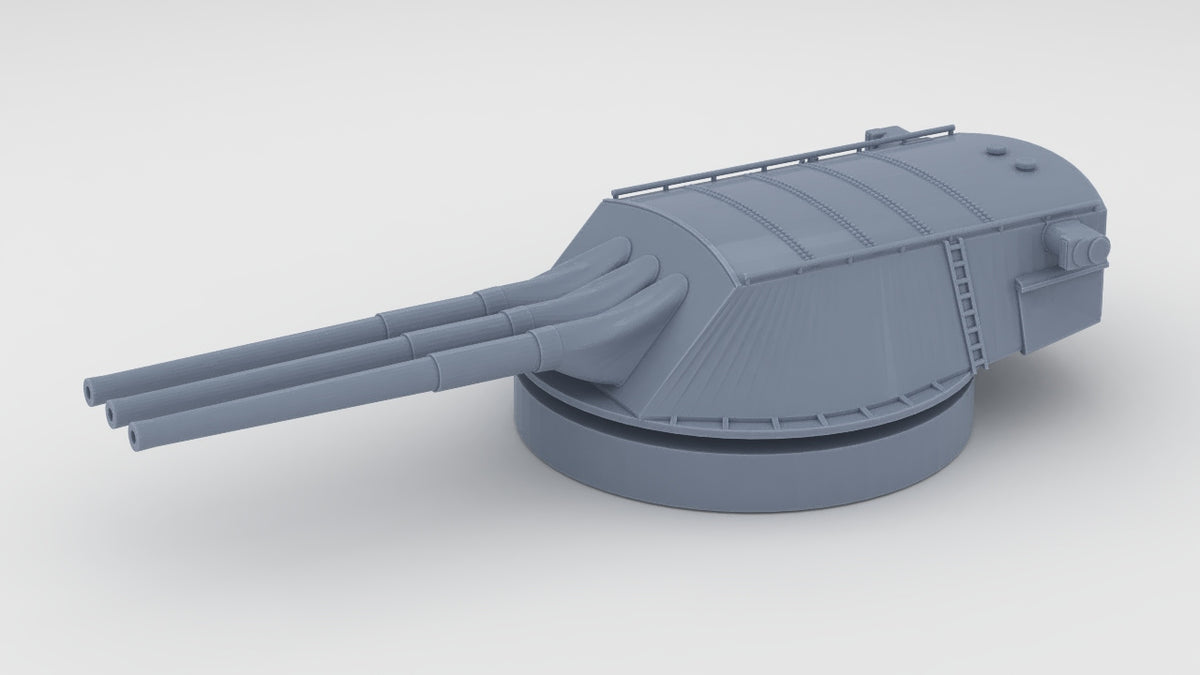

1/200 USN 14-inch/45-Caliber Gun Set (Turret 1)

1/200 USN 14-inch/45-Caliber Gun Set (Turret 1): Dreadnought Main Battery Forward Arsenal Realism

Bring an exceptional layer of technical density, structural authority, and naval combat realism to the forecastle weather deck of your large-format capital ship models with the masterfully engineered 1/200 Scale USN 14-inch/45-Caliber Gun Set (Turret 1). Formally designated as the 14"/45 caliber Mark 1/Mark 3 gun mounted in heavily armored three-gun turrets, this devastating main battery constituted the core offensive punch of the Pennsylvania-class battleship USS Arizona (BB-39). Positioned directly on the main deck at the bow, Turret 1 (the forward-most triple-gun installation) led the battle line during the dreadnought’s long operational service with the Pacific Fleet, remaining anchored in that pivotal position on the morning of December 7, 1941, at Pearl Harbor. Designed to engage enemy battle lines at long range with heavy armor-piercing shells, the turret featured an imposing sloped frontal face, massive cylindrical barbette, and independent gun sleeves. Scaled precisely to standard 1/200 builder scale, this dedicated standalone main battery overhaul includes the fully detailed triple turret housing, three turned-profile 14"/45 gun barrels, realistic canvas blast bags (gas bags/buckram covers), and a structurally separated deck barbette, capturing original Bureau of Ordnance (BuOrd) and Bureau of Ships (BuShips) builder blueprints with flawless fidelity.

Engineering Precision and Capital Ship Main Battery Fidelity

At 1/200 scale, the forward main battery turret is the primary silhouette centerpiece of the forecastle, exposed to immediate visual scrutiny regarding armor plate facet angles, barrel straightness, blast bag creasing, and barbette deck ring seams. This replica Turret 1 assembly captures the muscular, armored profile of pre-war American naval heavy artillery with surgical clarity, eliminating the thick, soft-molded plastic seams, poorly draped vinyl mantlet covers, missing armor plate joins, and drooped multi-piece barrels typical of mass-production plastic kits. Deployed onto the forward weather deck of your 1/200 scale build, each component features true-to-scale physical relief, creating realistic physical shadow lines and deep mechanical contrast that basic kit placeholders cannot match.

• Museum-Quality Arsenal Replication: Developed using original technical layouts, historical U.S. Navy Bureau of Ordnance blueprints, and archival Pearl Harbor photographic surveys to accurately reproduce the exact physical dimensions, front glacis plate slope, roof overhang, gun port spacing, and cylindrical barbette diameter of Turret 1 on the USS Arizona (BB-39).
• Comprehensive Complete Weapon Station: Delivered as a coordinated multi-part arsenal set:
  • Main Turret Armor Shell: Faithfully reproduces the multi-angled face plate, curved rear bustle, sighting periscope hoods, roof access hatches, and exterior armor joint lines.
  • Independent 14"/45 Barrels: Features three true-to-scale, hollowed-muzzle gun barrels capturing the stepped sleeve bands, muzzle crowns, and dead-straight alignment.
  • Realistic Canvas Blast Bags (Gas Bags): Sculpted with authentic organic fabric folds, retention clamp banding, and seam relief where the canvas sleeves sealed the open gun ports against explosive muzzle flash and sea spray.
  • Separated Deck Barbette: Sized and contoured specifically to seat onto the main deck, capturing the heavy cylindrical armored wall, deck-joint coamings, and turntable seating flange.
• Prototypical 1/200 Capital Ship Scope: Specifically engineered for large-format 1/200 scale battleship models (including the Trumpeter USS Arizona BB-39 kit and related Pennsylvania-class builds), custom scratch-built RC hulls, and museum-grade maritime diorama displays.
• Exposed Hardware & Mechanical Detail: Authentically captures the armored rangefinder hood ears on the rear sides, sighting scope blisters, roof-mounted shell hoist access scuttles, perimeter tie-down cleats, and barbette deck mounting rings with raised structural fastener impressions.
• True-to-Scale Volumetric Depth: Replicates the true physical three-dimensional presence of heavy naval armor, casting realistic deep shadows beneath the gun barrels, around the canvas blast bag folds, and where the overhang of the turret bustle extends over the cylindrical barbette.
• Streamlined Deck Integration: Engineered with precision-molded flat lower barbette mating surfaces designed to seat cleanly, squarely, and securely flush onto standard 1/200 scale wood planked decks, drastically reducing assembly friction and streamlining installation.
• Intelligent Hollowed Engineering: Expertly designed in High Detail Resin Grey with an optimized internal core cavity across the turret shell and barbette to manage material mass while preserving maximum rigidity, ensuring crisp, warp-free gun barrels and structural walls that resist distortion over time.

Premium Material: High Detail Resin Grey

To satisfy the absolute highest demands of micro-detailed static presentation across delicate scale ordnance and specialized naval armor mountings, this 14-inch/45-caliber gun set is crafted exclusively from premium High Detail Resin Grey.

• Exceptional Feature Definition: This premier formula achieves surgical multi-dimensional precision and an ultra-smooth, non-porous surface finish, capturing the finest mechanical facets—from razor-sharp armor plate bevels to miniature roof hatch dogs, subtle canvas stitching, and barbette flange bolt heads—with absolute sharpness and zero layer line distraction.
• Professional Foundation: Provides an ultra-smooth base specifically optimized for high-quality marine primers, fine-scale technical pin-washes, micro-masking, and authentic pre-war and early-war US Navy camouflage finishes, ensuring flawless paint adherence.
• Superior Quality: Manufactured by distefan 3d print, ensuring clean surfaces, dead-straight barrel concentricity, and outstanding dimensional integrity for a luxurious, professional-grade finish.

Key Features and Specifications

• Accurate 1/200 Scale Precision: Precision-engineered for seamless, historically proportional integration with standard 1/200 scale capital ship kits, scratch-built hulls, and museum-grade static displays.
• Historically Authentic Fleet Hardware: Faithfully represents the physical configuration of the standardized 14-inch/45-caliber triple main battery Turret 1 as fitted aboard the USS Arizona (BB-39) in late 1941.
• Complete Arsenal Suite: Includes one (1) high-detail triple turret shell, three (3) 14"/45 gun barrels, three (3) sculpted canvas blast bags (gas bags), and one (1) separated deck barbette.
• Separated Barbette Modularity: Allows modelers to paint, weather, and align the barbette and turret separately before final assembly, ensuring clean deck borders without paint bleed.
• Hollowed Lightweight Design: Features an engineered structural geometry that minimizes top-deck weight on the hull while maintaining maximum structural stiffness across every armor facet and barrel.
• Unpainted Finish: Arrives completely unpainted, providing an open canvas for custom finishing. Customize the assembly to reflect standard U.S. Navy Measure 1 (5-D Dark Gray lower hull/turrets with light gray upper works), wartime Measure 21 (overall 5-N Navy Blue), or pre-war No. 5 Standard Navy Gray finishes.
• The Definitive Main Battery Overhaul: Replaces simplified, ill-fitting kit plastic parts and unconvincing vinyl mantlet covers with a sophisticated, historically correct three-dimensional representation of vital capital ship naval artillery.

A Canvas for Battle-Tested Fleet Artistry

Arriving in its raw finish, the 1/200 USN 14-inch/45-Caliber Gun Set (Turret 1) serves as the ultimate starting point for advanced multi-layer painting, precise component color-blocking, and realistic maritime weathering.

• The Battleship Row Scheme: Base-coat the armored turret shell, roof, and cylindrical barbette in authentic period-correct vertical camouflage colors—such as 5-D Dark Gray or pre-war No. 5 Standard Navy Gray matching BB-39's hull and main deck level in late 1941. Paint the heavy 14-inch gun barrels in matching camouflage gray or dark weathered gunmetal, highlighting the open muzzle bores in matte black. Finish the sculpted canvas blast bags (gas bags) in a contrasting weathered canvas buff, off-white, or blackened treated-canvas tone, carefully picking out the retaining metal band clamps in dark Parkerized steel. Paint the sighting scope lenses in gloss black with jewel-clear lens gloss drops to simulate optical glass.
• Realistic Frontline Operational Weathering: High-relief main battery turrets thrive on rich washes, textural filters, and environmental staining. Apply rich dark raw umber and soot black oil washes into the deep folds of the canvas blast bags, around the roof hatch coamings, and along the lower turret bustle overhang to establish deep structural shadows. Add realistic weathering effects like delicate bare-metal chipping along the roof edge where crew boots struck during gunnery drills, dried white salt spray mineral crusting layered heavily across the forward glacis plate and barrel sleeves from taking green water over the bow during heavy Pacific swells, and subtle vertical rust streaks weeping downward from roof scuttles and barbette deck joint seams toward the teak waterways to capture the true look of a majestic Pacific Fleet dreadnought standing ready at Pearl Harbor.
