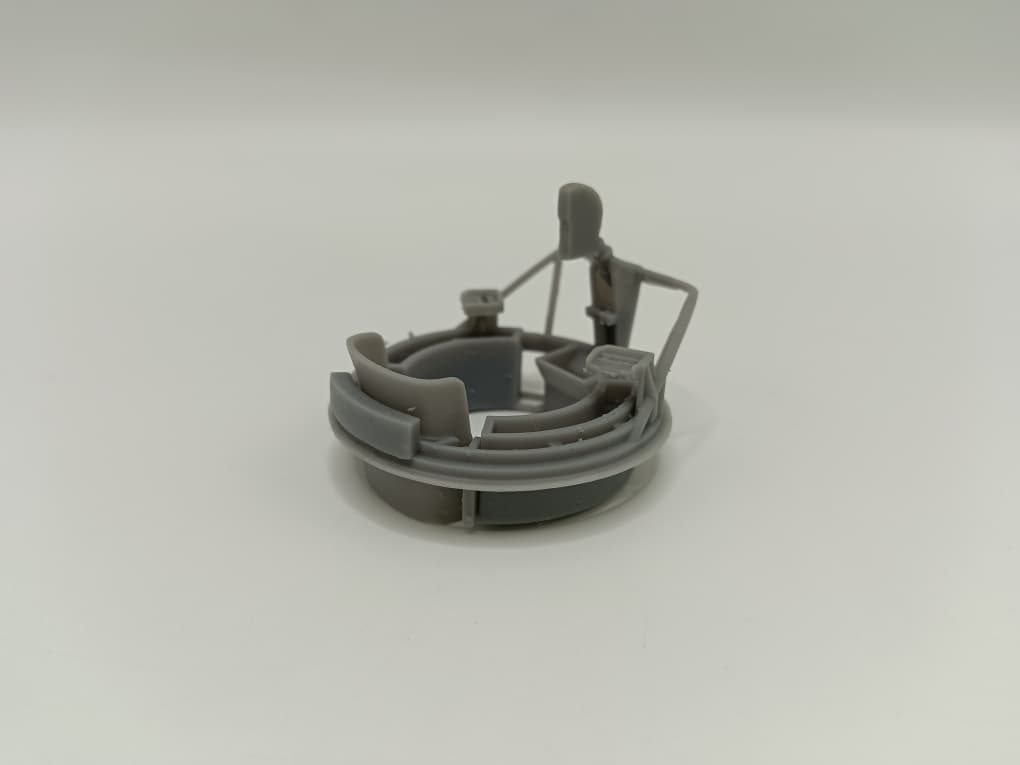

1/32 US PT Boat 109 Aft Turret Mount

1/32 US PT Boat 109 Aft Turret Mount: Mark 17 Twin .50-Caliber Gun Carriage Realism

Bring an exceptional layer of technical density, structural authority, and combat-ready precision to the aft machine gun tub of your large-format patrol boat models with the masterfully engineered 1/32 Scale U.S. Navy (USN) PT Boat 109 Aft Turret Mount. Serving as the primary close-in anti-aircraft and surface-suppression weapon carriage aboard early-production 80-foot Elco motor torpedo boats—most notably Lieutenant John F. Kennedy's PT-109 during its 1943 combat tours in the Solomon Islands—the Mark 17 rotating gun mount supported twin .50-caliber Browning M2 aircraft-pattern heavy machine guns. Positioned inside the armored aft circular tub, this heavy mechanical assembly gave the gunner rapid 360-degree manual traversing and elevation control against low-flying Japanese aircraft, armored barges, and coastal targets. At an imposing 1/32 scale, this standalone upgrade captures the structural central pedestal, rotating azimuth ring, gunner's foot platform, dual cradle trunnions, elevation quadrant teeth, and hand-locking clamps of original Bureau of Ordnance blueprints with flawless structural clarity, making it an indispensable asset for discerning maritime shipwrights anchoring their veteran coastal patrol representations.

Engineering Precision and Mark 17 Carriage Fidelity

At a commanding 1/32 scale, weapon mount carriages step completely out of the background to become prominent mechanical centerpieces within open deck tubs, exposing every millimeter of structural pedestal flanging, traversing ring rollers, gun cradle side plates, and friction brake levers to close visual-spatial inspection. This replica Mark 17 aft turret mount captures the intricate industrial profile of World War II American naval ordnance with exquisite clarity, completely eliminating the soft features, solid-blocked webbing, missing mechanical linkages, and tedious seam line cleanup typical of standard factory injection-molded plastic kit parts or soft white metal castings. Deployed inside the aft gun tub of your 1/32 scale build, the assembly features true-to-scale physical contours, creating realistic physical shadow lines and deep visual relief that basic kit placeholders cannot match.

• Museum-Quality Arsenal Replication: Developed using original technical layouts, historical U.S. Navy Bureau of Ordnance blueprints, and archival Elco shipyard drawings of PT-109 to accurately reproduce the exact physical dimensions, cradle spread, pivot centerlines, and pedestal footings of active frontline combat craft.
• Complete Mark 17 Architecture: Authentically captures the conical center pedestal column, rotating carriage collar, gunner's non-skid standing grate, twin M2 cradle receiver brackets, elevation trunnion bearings, and dual charging clearance slots, preserving structural sharpness and realistic spatial proportions.
• True-to-Scale Volumetric Depth: Replicates the true physical three-dimensional silhouette of a heavy naval twin machine gun carriage, creating authentic deep shadow lines against the inner armored tub walls and deckhouse casing with realistic mechanical contrast.
• Streamlined Turret Integration: Features an engineered base mounting flange designed to seat cleanly and securely into standard 1/32 scale Elco aft gun tubs and deckhouse rings, drastically reducing assembly friction and streamlining installation.
• Intelligent Hollowed Engineering: Expertly designed in High Detail Resin (available in Grey or White formulas) with an optimized, lightweight internal structure to manage material mass across its prominent 1/32 scale footprint. This smart configuration ensures an exceptionally rigid, warp-free carriage that mounts effortlessly without sagging, snapping under the weight of twin .50-cal gun bodies, or causing top-heavy balance issues on static presentations or operational RC patrol hulls.

Premium Material: High Detail Resin (Grey/White)

To satisfy the absolute highest demands of micro-detailed static presentation across delicate scale ordnance components, this PT-109 aft turret mount is crafted from premium MSLA High Detail Resin (available in Grey or White formulas).

• Exceptional Feature Definition: This premier formula achieves surgical multi-dimensional precision and an ultra-smooth, non-porous surface finish, capturing the finest mechanical facets—from razor-thin elevation gear teeth to crisp mounting bolt heads—with absolute sharpness and zero layer line distraction.
• Professional Foundation: Provides an ultra-smooth base specifically optimized for high-quality marine primers, fine-scale technical pin-washes, precision detail hand-painting, and authentic wartime US Navy paint finishes, ensuring flawless paint adherence.
• Superior Quality: Manufactured by distefan 3d print, ensuring clean surfaces, precise geometry alignment, and outstanding dimensional integrity for a luxurious, professional-grade finish.

Key Features and Specifications

• Accurate 1/32 Scale Precision: Precision-engineered for perfect, historically proportional integration with standard traditional 1/32 scale Elco 80-foot PT boat models (such as the classic Revell 1/32 PT-109 kit), custom large-format conversions, operational RC hulls, and museum-grade static displays.
• Historically Authentic Fleet Hardware: Authentically represents the physical configuration of the standardized Mark 17 twin .50-caliber gun mount utilized in the aft turrets of Elco 103-class motor torpedo boats during 1942 and 1943 combat tours.
• Twin .50-Cal Ready: Specifically tailored to receive standard 1/32 scale Browning M2 aircraft-type heavy machine guns, ammunition chutes, and twin ready-service ammo cans with authentic spatial clearance.
• Unpainted Finish: Arrives completely unpainted, providing a blank canvas for your creative vision. Customize the assembly to reflect standard U.S. Navy topside hull grays, tropical green camouflage tones, bare steel wear, or weathered Parkerized ordnance finishes.
• The Definitive Gun Mount Overhaul: Replaces simplified, blobby plastic kit parts with a sophisticated, historically correct three-dimensional representation of vital naval close-in defense architecture.

A Canvas for Battle-Tested Fleet Artistry

Arriving in its raw finish, the 1/32 US PT Boat 109 Aft Turret Mount serves as the ultimate starting point for advanced multi-layer painting, precise component color-blocking, and realistic maritime weathering.

• The Fleet Paint Scheme: Base-coat the lower pedestal column and rotating carriage frame in authentic period-correct U.S. Navy surface colors—such as standard 5-H Haze Gray or the mottled tropical green tones of the Measure 31/20L camouflage scheme applied across the Solomon Islands. Finish the gun cradle trunnions, elevation quadrants, and locking levers in dark Parkerized steel, gunmetal, or satin black, and detail the gunner's foot platform in weathered bare aluminum or dark non-skid charcoal to create sharp mechanical contrast within the gun tub.
• Realistic Frontline Operational Weathering: High-relief weapon mounts thrive on rich washes, textural filters, and environmental staining. Use rich dark raw umber and soot black oil washes to let deep shadows settle naturally around the base pedestal gussets, beneath the gunner's platform grate, and inside the cradle pivot journals. Add highly realistic weathering effects like bare-metal friction burnishing along the elevation quadrants where the guns pivoted rapidly during dive-bomber attacks, scuffed paint on the footplate where the gunner braced in heavy work boots, dark spilled lubricating oil pooled around the azimuth ring bearings, and subtle dried white salt spray encrustations across weather-exposed faces to capture the true look of heavy naval combat hardware enduring punishing nocturnal engagements through the Slot.
