1/32 US PT Boat 109 Torpedo Tube Port

1/32 US PT Boat 109 Torpedo Tube Port: Early 80-Foot Elco Strike Armament Realism

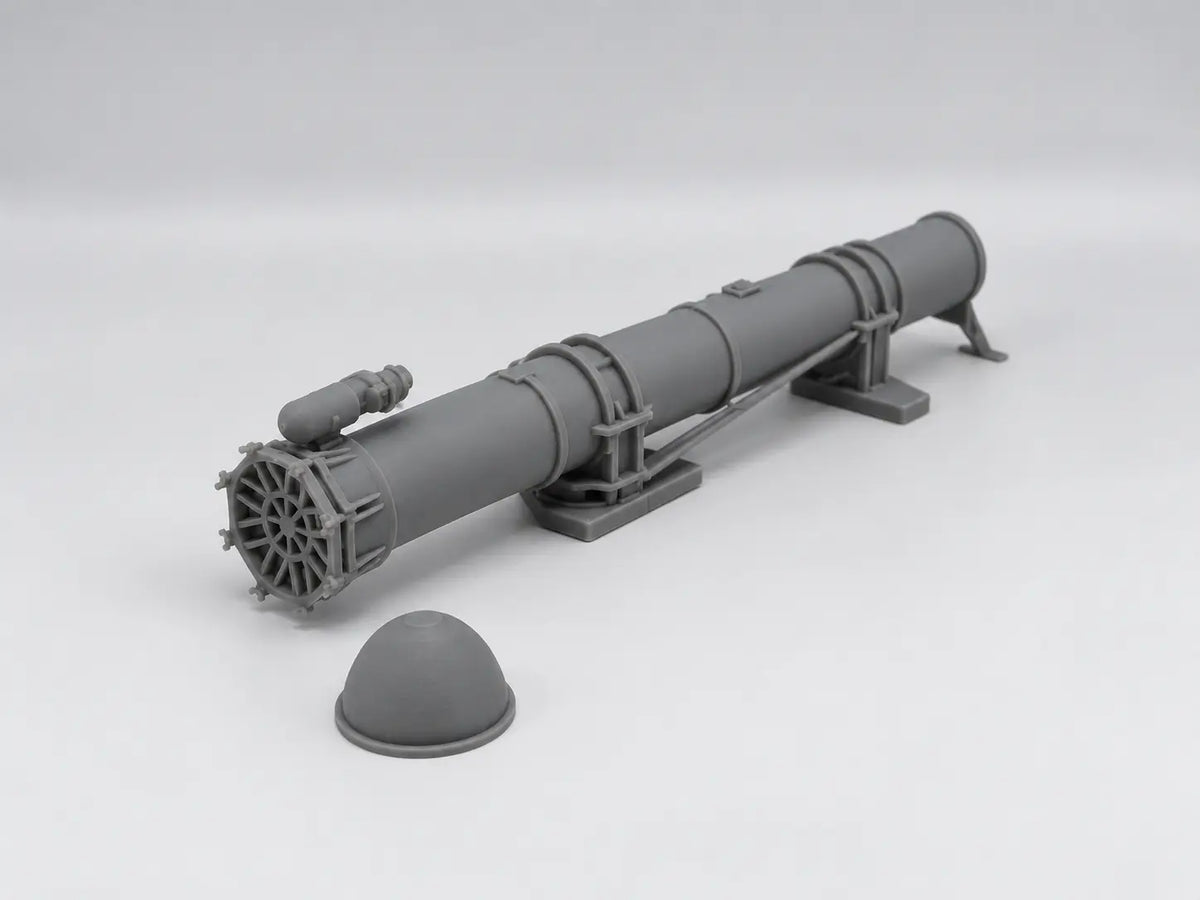

Bring an exceptional layer of technical density, structural authority, and frontline striking power to the forward port weather deck and side waterways of your large-format patrol boat models with the masterfully engineered 1/32 Scale U.S. Navy (USN) PT Boat 109 Torpedo Tube Port. Prior to the late-war introduction of lightweight roll-off gravity racks, early-production 80-foot Elco 103-class motor torpedo boats—most famously Lieutenant John F. Kennedy's PT-109 during its 1943 combat tours in the Solomon Islands—relied on heavy cylindrical, impulse-fired Mark 18 21-inch torpedo tubes. Engineered specifically to house and launch Mark 8 steam-gas torpedoes across naval surface engagements, these port-mounted launcher tubes contained integrated black-powder impulse chambers, mechanical trip latches, bronze guide tracks, and heavy structural mounting cradles secured directly into the mahogany deck stringers. At an imposing 1/32 scale, this dedicated port-handed standalone upgrade captures the cylindrical barrel walls, recessed muzzle rim, training clamp collars, black-powder expansion pot, electrical firing solenoids, manual trip levers, and base saddle deck stanchions of original Elco Naval Division and Bureau of Ordnance schematics with flawless structural clarity, making it an indispensable asset for discerning maritime shipwrights anchoring their veteran coastal patrol representations.

Engineering Precision and Elco Naval Ordnance Fidelity

At a commanding 1/32 scale, main deck torpedo tubes step completely out of the background to become primary visual focal points along the sheer line, exposing every millimeter of barrel wall thickness, internal guide rail profile, pneumatic bleeder valves, deck mounting shoes, and firing mechanism linkages to close visual-spatial inspection. This replica port torpedo tube captures the muscular industrial profile of historic American naval strike weaponry with exquisite clarity, completely eliminating the soft features, flat non-hollowed openings, thick solid-molded plastic kit parts, and tedious longitudinal seam line cleanup typical of standard factory injection-molded plastic kits or soft white metal castings. Deployed onto the forward port deck of your 1/32 scale build, the assembly features true-to-scale physical contours, creating realistic physical shadow lines and deep visual relief that basic kit placeholders cannot match.

• Museum-Quality Arsenal Replication: Developed using original technical layouts, historical U.S. Navy Bureau of Ordnance blueprints, and archival Elco shipyard drawings of PT-109 to accurately reproduce the exact physical dimensions, tube length, barrel diameter, and port-specific mounting cradle geometry of active frontline combat craft.
• Dedicated Port Configuration: Specifically engineered with port-handed mechanical details, including correctly oriented impulse chamber fittings, outboard safety latches, wiring conduits, and deck saddle stanchion offsets tailored for the port side of the forward deckhouse trunk.
• Exposed Ordnance & Mechanical Detail: Authentically captures the hollowed tube interior with raised internal guide rails, rear breech door hinges, top-mounted black powder impulse expansion flask, manual firing hammer trip lever, bronze gyro-setting spindle access covers, and heavy tubular deck mounting stanchions with perimeter bolt impressions, preserving structural sharpness and realistic spatial proportions.
• True-to-Scale Volumetric Depth: Replicates the true physical three-dimensional silhouette of heavy naval deck tubes, creating authentic deep shadow lines against mahogany deck planking, cabin trunks, and side grab rails with realistic mechanical contrast.
• Streamlined Deck Integration: Features engineered contact mounting pads designed to seat cleanly and securely into standard 1/32 scale Elco boat deck locations, drastically reducing assembly friction and streamlining installation.
• Intelligent Hollowed Engineering: Expertly designed in High Detail Resin Grey with an optimized, lightweight internal structure to manage material mass across its prominent 1/32 scale footprint. This smart configuration ensures an exceptionally rigid, straight, and lightweight launcher that mounts effortlessly to the deck without causing adhesive slumps, paint peeling, or structural distortion on high-end static presentations or operational RC patrol hulls.

Premium Material: High Detail Resin Grey

To satisfy the absolute highest demands of micro-detailed static presentation across delicate scale maritime weaponry, this PT-109 port torpedo tube is crafted exclusively from premium High Detail Resin Grey.

• Exceptional Feature Definition: This premier formula achieves surgical multi-dimensional precision and an ultra-smooth, non-porous surface finish, capturing the finest mechanical facets—from razor-thin tube lip edges to crisp impulse flask threading—with absolute sharpness and zero layer line distraction.
• Professional Foundation: Provides an ultra-smooth base specifically optimized for high-quality marine primers, fine-scale technical pin-washes, precision detail hand-painting, and authentic wartime US Navy paint finishes, ensuring flawless paint adherence.
• Superior Quality: Manufactured by distefan 3d print, ensuring clean surfaces, precise geometry alignment, and outstanding dimensional integrity for a luxurious, professional-grade finish.

Key Features and Specifications

• Accurate 1/32 Scale Precision: Precision-engineered for perfect, historically proportional integration with standard traditional 1/32 scale Elco 80-foot PT boat models (such as the classic Revell 1/32 PT-109 kit), custom large-format conversions, operational RC hulls, and museum-grade static displays.
• Historically Authentic Fleet Hardware: Authentically represents the physical configuration of the standardized Mark 18 21-inch torpedo launch tube installed on the port side of early-production Elco 103-class motor torpedo boats during 1942 and 1943 combat tours.
• Functional Port Geometry: Accurately replicates port-handed operator positions and mounting cradle alignments, perfectly mirroring its starboard counterpart for an authentic full-deck weapon suite.
• Unpainted Finish: Arrives completely unpainted, providing a blank canvas for your creative vision. Customize the assembly to reflect standard U.S. Navy topside hull grays, tropical green camouflage tones, bare steel, or weathered ordnance finishes.
• The Definitive Deck Weapon Overhaul: Replaces simplified, two-piece plastic kit moldings with a sophisticated, historically correct three-dimensional representation of vital naval striking architecture.

A Canvas for Battle-Tested Fleet Artistry

Arriving in its raw finish, the 1/32 US PT Boat 109 Torpedo Tube Port serves as the ultimate starting point for advanced multi-layer painting, precise component color-blocking, and realistic maritime weathering.

• The Fleet Paint Scheme: Base-coat the outer launch tube barrel and deck mounting cradles in authentic period-correct U.S. Navy surface colors—such as standard 5-H Haze Gray or the surrounding tropical green tones of the Measure 31/20L camouflage scheme applied in the Solomon Islands. Finish the top-mounted black powder impulse chamber in dark Parkerized steel, paint the internal bronze guide rails in metallic aged bronze or polished brass, and detail the electrical firing solenoid and manual trip lever in satin black with bare steel wear highlights.
• Realistic Frontline Operational Weathering: High-relief deck ordnance thrives on rich washes, textural filters, and environmental staining. Use rich dark raw umber and soot black oil washes to let deep shadows settle naturally around the barrel clamping bands, beneath the deck saddle stanchions, and inside the recessed breech hinges. Add highly realistic weathering effects like bare-metal chipping along the top of the barrel where crewmen walked during torpedo reloading drills, dark grease staining around the guide rail tracks and impulse chamber relief valves, dried white salt spray encrustations along weather-exposed port surfaces, and subtle rust weeping down toward deck scuppers from steel mounting hardware to capture the true look of heavy naval strike weaponry enduring active night combat patrols through the Slot.
