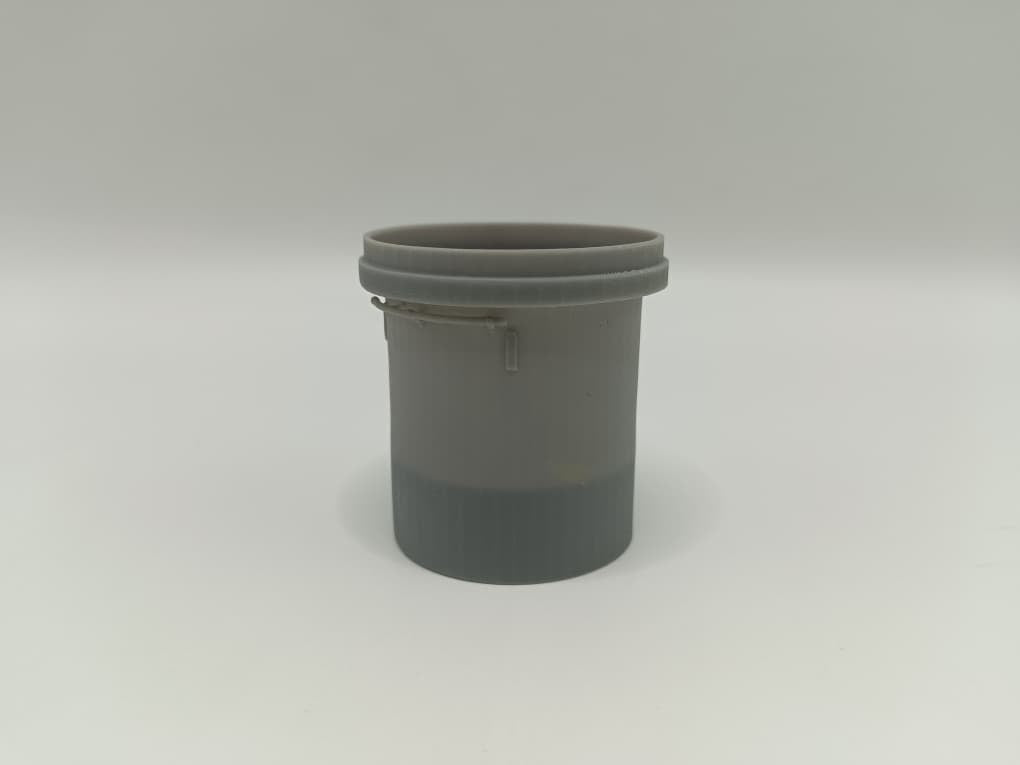

1/32 US PT Boat Aft Limiting Stop Turret

1/32 US PT Boat Aft Limiting Stop Turret: Elco 103-Class Gun Tub Architecture Realism

Bring an exceptional layer of technical density, structural authority, and historical safety-interlock precision to the midships and aft deckhouse weapon stations of your large-format patrol torpedo boat models with the masterfully engineered 1/32 Scale U.S. Navy (USN) PT Boat Aft Limiting Stop Turret. Designed specifically for early-to-mid wartime 80-foot Elco motor torpedo boats—spanning production runs PT-103 through PT-196 (including PT-109) and PT-314 through PT-367—these armored circular machine gun tubs housed the devastating twin .50-caliber Browning M2 aircraft machine gun mounts. Crucial to safe combat operations, the aft turret featured mechanical depression and azimuth limiting stops: heavy welded cam tracks and mechanical buffer stops engineered to physically block the gunner from inadvertently depressing or swinging twin .50-cal barrels into the boat's own cockpit, masthead rigging, companionways, or crewmen during frantic close-quarters night dogfights. At an imposing 1/32 scale, this standalone upgrade captures the cylindrical tub armor, internal reinforcing ribs, traversing ring track, depression stop cams, and deck coaming mounting flanges of original Elco Naval Division blueprints with flawless structural clarity, making it an indispensable asset for discerning maritime shipwrights anchoring their veteran coastal patrol representations.

Engineering Precision and Elco Anti-Aircraft Station Fidelity

At a commanding 1/32 scale, circular machine gun tubs step completely out of the background to become prominent visual centerpieces along the deckhouse sheer, exposing every millimeter of armored collar lip thickness, internal vertical stiffener channels, floor drain scuppers, and mechanical gun stops to close visual-spatial inspection. This replica aft limiting stop turret captures the rugged industrial profile of historic American patrol boat armament with exquisite clarity, completely eliminating the soft features, overly thick injection-molded walls, missing interior details, and tedious seam line cleanup typical of standard factory plastic kits or soft white metal castings. Deployed onto the deckhouse roof of your 1/32 scale build, the assembly features true-to-scale physical contours, creating realistic physical shadow lines and deep visual relief that basic kit placeholders cannot match.

• Museum-Quality Arsenal Replication: Developed using original technical layouts, historical Elco shipyard construction drawings, and archival Bureau of Ordnance schematics to accurately reproduce the exact physical dimensions, wall taper, internal diameter, and mechanical limiting cam profiles of active wartime combat craft.
• Aft Turret Mechanical Limiting Geometry: Faithfully replicates the specific depression and traverse limiting stop rails and strike cams designed to prevent field-of-fire intrusion into the forward wheelhouse, main mast stays, and radio aerials.
• Exposed Structural & Functional Detail: Authentically captures the circular armored shield plating, upper rolled safety lip, interior structural angle braces, traversing gear ring teeth, ready-service ammunition can bracket mounts, and deck attachment rim with perimeter rivet impressions, preserving structural sharpness and realistic spatial proportions.
• True-to-Scale Volumetric Depth: Replicates the true physical three-dimensional silhouette of heavy naval anti-aircraft cockpits, creating authentic deep shadow lines against mahogany deckhouse roofs and companionway hatches with realistic mechanical contrast.
• Streamlined Deckhouse Integration: Features an engineered flat base mounting rim designed to seat cleanly and securely into standard 1/32 scale Elco deckhouse cutouts, drastically reducing assembly friction and streamlining installation.
• Intelligent Hollowed Engineering: Expertly designed in High Detail Resin Grey with an optimized, lightweight internal structure to manage material mass across its prominent 1/32 scale footprint. This smart configuration ensures an exceptionally rigid, warp-free, and lightweight turret that bonds effortlessly to cabin roofs without causing adhesive slumps, paint peeling, or structural distortion on high-end static presentations or large operational RC patrol hulls.

Premium Material: High Detail Resin Grey

To satisfy the absolute highest demands of micro-detailed static presentation across delicate scale naval gun stations, this Elco aft limiting stop turret is crafted exclusively from premium High Detail Resin Grey.

• Exceptional Feature Definition: This premier formula achieves surgical multi-dimensional precision and an ultra-smooth, non-porous surface finish, capturing the finest mechanical facets—from razor-thin limiting track contours to crisp bolt heads—with absolute sharpness and zero layer line distraction.
• Professional Foundation: Provides an ultra-smooth base specifically optimized for high-quality marine primers, fine-scale technical pin-washes, precision detail hand-painting, and authentic wartime US Navy paint finishes, ensuring flawless paint adherence.
• Superior Quality: Manufactured by distefan 3d print, ensuring clean surfaces, precise geometry alignment, and outstanding dimensional integrity for a luxurious, professional-grade finish.

Key Features and Specifications

• Accurate 1/32 Scale Precision: Precision-engineered for perfect, historically proportional integration with standard traditional 1/32 scale Elco 80-foot PT boat models (such as the classic Revell 1/32 PT-109 kit), custom large-format conversions, operational RC hulls, and museum-grade static displays.
• Historically Authentic Fleet Hardware: Authentically represents the physical configuration of the standardized aft gun tub with mechanical limiting stops installed on Elco 103-class motor torpedo boats (hulls 103–196 and 314–367) during World War II.
• Weapon Mount Ready: Engineered to accept standard twin .50-caliber M2 Browning pedestal mounts, traversing rings, and standing gunner figures with true-to-scale clearances.
• Unpainted Finish: Arrives completely unpainted, providing a blank canvas for your creative vision. Customize the assembly to reflect standard U.S. Navy topside hull grays, tropical green camouflage tones, bare steel wear, or weathered anti-glare interior finishes.
• The Definitive Weapon Station Overhaul: Replaces simplified, two-piece plastic kit moldings with a sophisticated, historically correct three-dimensional representation of vital naval close-in defense architecture.

A Canvas for Battle-Tested Fleet Artistry

Arriving in its raw finish, the 1/32 US PT Boat Aft Limiting Stop Turret serves as the ultimate starting point for advanced multi-layer painting, precise component color-blocking, and realistic maritime weathering.

• The Fleet Paint Scheme: Base-coat the exterior armor plating and deck attachment rim in authentic period-correct U.S. Navy surface colors—such as standard 5-H Haze Gray or the mottled tropical green tones of the Measure 31/20L camouflage scheme applied across the Solomon Islands. Finish the interior tub walls in flat anti-glare gray or dark olive green, paint the traversing gear teeth and limiting cam rails in bare Parkerized steel or graphite, and detail the gunner's foot platform in stained dark wood or weathered non-skid black.
• Realistic Frontline Operational Weathering: High-relief weapon cockpits thrive on rich washes, textural filters, and environmental staining. Use rich dark raw umber and soot black oil washes to let deep shadows settle naturally behind the vertical stiffener ribs, under the upper rolled rim, and around the floor scuppers. Add highly realistic weathering effects like bare-metal chipping and friction wear along the limiting stop strike cams where traversing stops hammered under heavy recoil, scuffed floor paint from the gunner's heavy work shoes, spilled cartridge lubricant staining around the traversing ring, dried white salt spray residue along windward armor plates, and subtle rust weeping down toward deck scuppers from base mounting rivets to capture the true look of heavy naval combat hardware enduring intense night engagements through the Slot.
