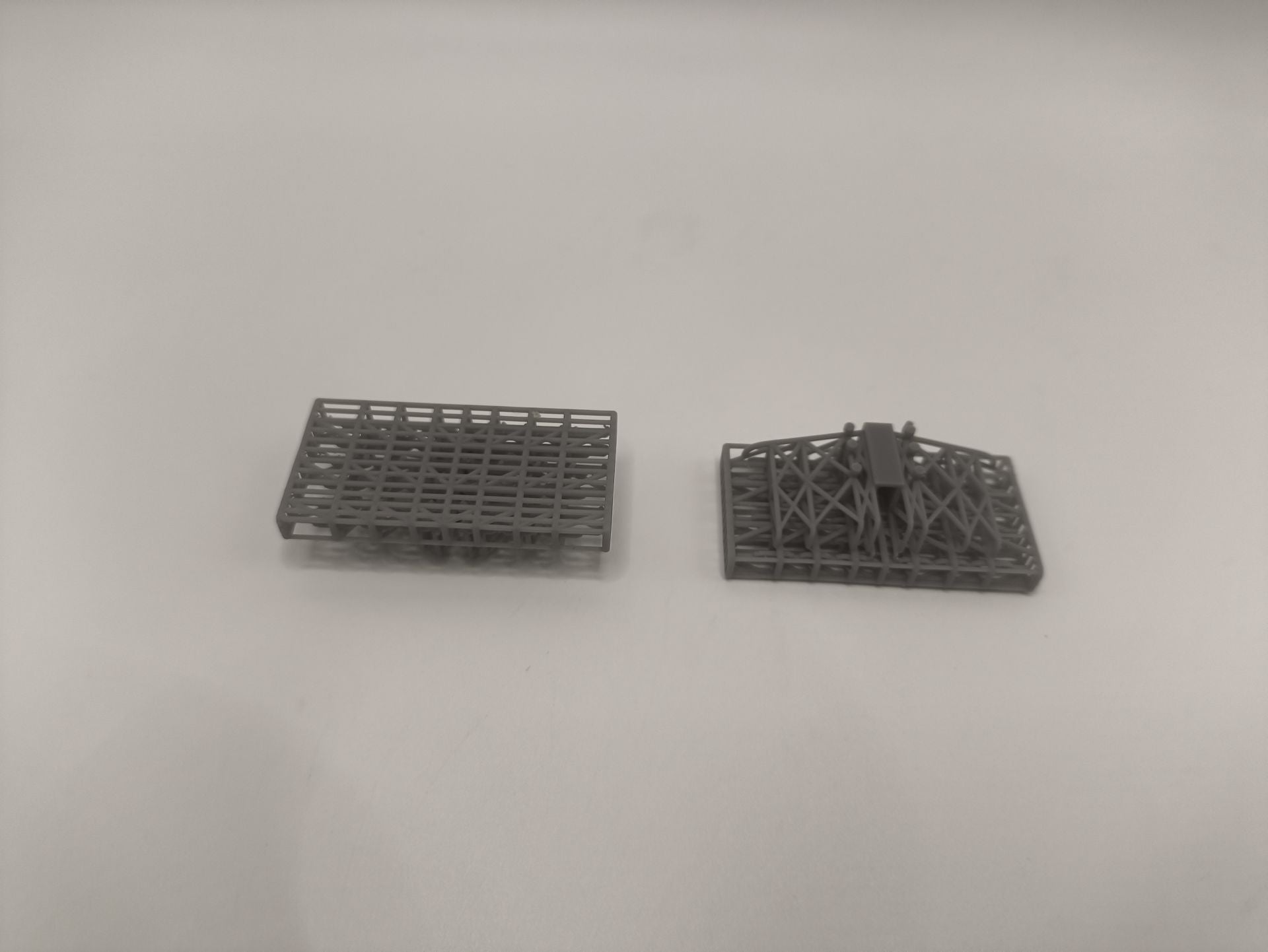

1/96 DKM FuMO 23 Radar Station

1/96 DKM FuMO 23 Radar Station: Kriegsmarine Electronic Warfare Realism

Bring an unmatched layer of technical density, historical accuracy, and modern electronic warfare realism to the command tower of your capital ship model with the meticulously engineered 1/96 Scale Deutsche Kriegsmarine (DKM) FuMO 23 Radar Station. Short for Funkmessortung (Radio Direction Finding), the FuMO 23 mattress antenna was a pioneering technical achievement mounted high atop the armored fire control directors of Germany’s most legendary warships, including the battleships Bismarck and Tirpitz, and the Admiral Hipper-class heavy cruisers. Operating on a 368 MHz frequency to scan the horizons for Allied convoy shadows and incoming aircraft, this distinctive rectangular array is the ultimate crown for a WWII German flagship superstructure. At this expansive 1/96 scale, this upgrade component captures the delicate dipoles, open-frame lattice backing, and heavy rotational housing of the original naval hardware with museum-grade precision, making it an indispensable asset for discerning maritime shipwrights.

Engineering Precision & Electronic Fidelity

In 1/96 scale, topside radar mattresses and antenna frameworks form major visual highlights, exposing every delicate dipole array, support arm, and rotational bearing ring to close visual inspection. This component replica captures the complex industrial architecture of the FuMO 23 with exquisite fidelity, completely eliminating the soft features, out-of-scale grid thickness, and tedious assembly cleanup typical of standard factory multi-piece plastic kit parts or flat, fragile two-dimensional photo-etched brass layers. Every structural horizontal bar and dipole face transition is rendered with sharp, industrial clarity, providing a rigid, high-fidelity centerpiece that commands attention.

• Museum-Quality Replication: Developed using original technical layouts and historical capital ship blueprints to accurately capture the specific rectangular mattress frame dimensions, dipole spacing, and backing structure characteristic of WWII German naval electronics.
• Intricate Framework Detailing: Features an incredibly detailed antenna face showcasing crisp individual radar element housings, wave guides, rear structural reinforcement framing, and the accurate mounting interface designed to lock directly onto your director hoods.
• Three-Dimensional Depth: Replicates the true volumetric depth and open lattice backing of the real steel and wire radar system, creating authentic shadow lines and realistic negative spaces that flat photo-etch upgrades cannot realistically duplicate.
• Intelligent Lightened Engineering: Expertly designed with an optimized hollowed-out internal structure across the main support column and housing to drastically reduce topside material weight. This smart design ensures an exceptionally lightweight superstructure addition that mounts effortlessly to delicate rangefinder directors or mast platforms without causing top-heavy balance issues, structural sagging, or warping on large-scale display models.

Premium Material: High Detail Resin Grey

To ensure the razor-thin antenna elements, fine lattice frames, and microscopic alignment rivets showcase the absolute sharpest technical definitions, this electronic warfare asset is crafted from professional High Detail Resin Grey.

• Exceptional Feature Definition: The high-quality resin achieves superior multi-dimensional precision and a remarkably smooth surface finish, perfect for maintaining sharp, uniform profiles on thin structural frames without any distracting layer lines.
• Professional Foundation: Provides an ultra-smooth, non-porous base specifically optimized for high-quality marine primers, complex multi-toned masking tapes, and optimal naval paint adherence.
• Superior Quality: Manufactured by distefan 3d print, ensuring clean surfaces, precise geometry alignment, and outstanding dimensional integrity for a luxurious, professional-grade finish.

Key Features & Specifications

• Accurate 1/96 Scale Precision: Precision-engineered for perfect, historically proportional integration with massive 1/96 scale Kriegsmarine battleship, battlecruiser, and heavy cruiser kits, custom scratch builds, and premium museum-grade maritime dioramas.
• Historically Authentic Infrastructure: Authentically represents the advanced early-to-mid-war tactical layout of the primary fire control radar configurations deployed heavily across both the North Sea and Atlantic combat theaters.
• Unpainted Finish: Arrives completely unpainted, providing a blank canvas for your creative vision. Explore authentic German Navy palettes—such as Baltic Sea camouflage tracking designs or standard superstructure gray—to match your ship's specific operational timeline.
• The Definitive Topside Upgrade: Replaces simplified, solid-blocked molding or flexible kit plastics with a sophisticated, historically correct three-dimensional representation of vital naval sensors.

A Canvas for Baltic Fleet Artistry

Arriving in its raw resin finish, the DKM FuMO 23 Radar Station serves as the ultimate starting point for advanced multi-layer painting, precise camouflage tracking, and realistic maritime weathering.

• The "Atlantic Raider" Look: Coat the primary rear framework and mounting housing in authentic German Navy superstructure gray (Hellgrau) or track the ship's bold, sweeping geometric Baltic camouflage stripes cleanly across the antenna assembly to maintain absolute pattern continuity along the tower. The uniform resin surfaces are ideal for clean color-blocking and maintaining razor-sharp masking line transitions. Detail the individual front dipole receivers in a slightly darker metallic or specialized gray palette to mimic weather-resistant electronic components.
• Realistic Weathering: The commanding 1/96 scale is an elite playground for precision micro-detailing. Use subtle dark oil or pin-washes to let deep shadows settle naturally around the lattice intersections, dipole brackets, and mounting bolts. Add highly realistic weathering effects like vertical orange-brown rust weeping from the heavy steel support hinges, dark soot deposits from the ship's funnel exhaust drifting across the upper framework lines, and realistic white salt-crusting tracing the outer edges to capture the true look of a veteran German capital ship enduring grueling combat deployments in the heavy northern seas.
