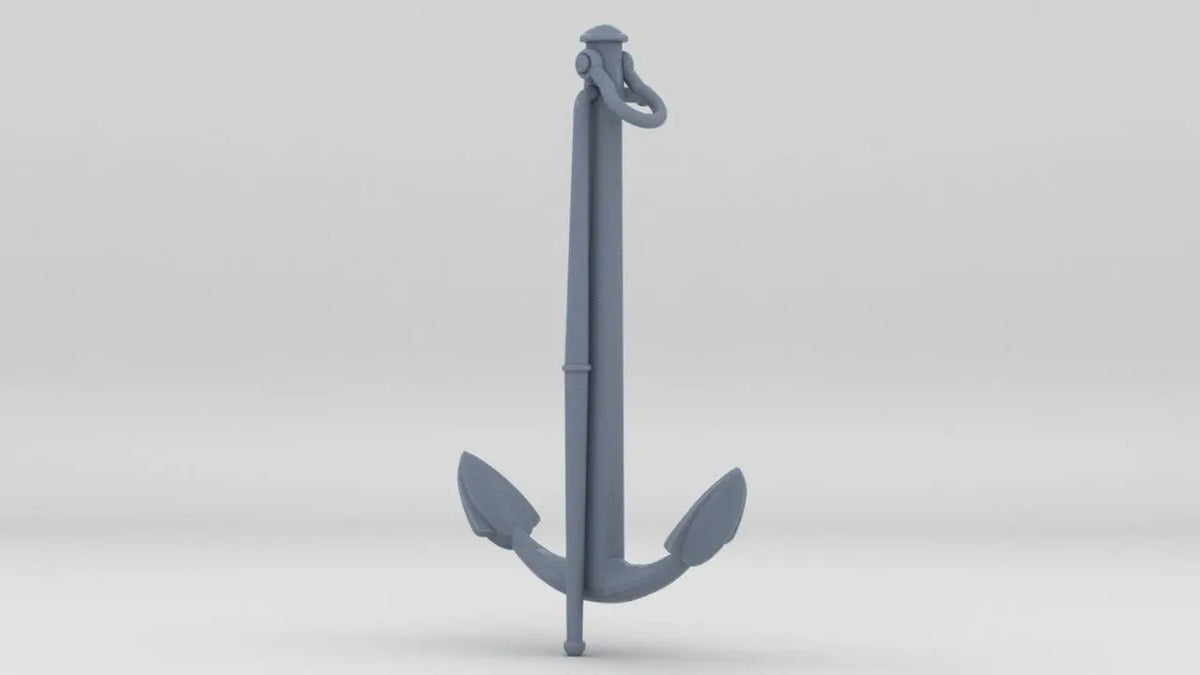

1/20 IJN 400lbs. Admiralty Pattern Anchor

1/20 IJN 400lbs. Admiralty Pattern Anchor: Coastal Combatant, Auxiliary & Historic Schooner Ground Tackle Fidelity

Bring an exceptional layer of technical density, structural authority, and naval operational realism to your large-format maritime models, historical sailing yachts, and museum displays with the masterfully engineered 1/20 Scale IJN 400lbs. Admiralty Pattern Anchor. Representing the classic 400-pound (approx. 181 kg) class of stocked ground tackle, this specific weight class played a prominent dual role across maritime history: serving as agile bower, kedge, and stream anchors aboard Imperial Japanese Navy coastal sub-chasers, auxiliary gunboats, picket craft, and motor launches, while precisely matching the historical bower anchor outfit of famous 19th-century pilot schooners, notably the historic 1851 yacht America. Operating with a fixed transverse stock that forces one of its two broad spade flukes to bite deeply into silt, sand, or gravel under tension, this traditional anchor provided dependable holding power across tidal shallows and coastal anchorages. Scaled precisely to 1/20 builder scale - measuring 74 mm (2.91 inches) in overall length, 48 mm (1.89 inches) across the curved arms, and featuring a 75 mm (2.95 inches) stock length - this dedicated standalone piece faithfully captures original naval forging layouts and period maritime architecture with flawless fidelity.

Engineering Precision and Scale Ground Tackle Fidelity

At 1/20 scale, auxiliary ground tackle moves completely into the foreground as a distinct, museum-grade physical showpiece. Every millimeter of forged shank transition, spade fluke beveling, stock retaining collar geometry, and shackle clevis pin detail is open to direct visual scrutiny. This replica 400-pound Admiralty Pattern anchor captures the balanced, muscular industrial profile of traditional maritime forging with surgical clarity, eliminating the thick, soft-molded contours, rounded fluke edges, missing stock keys, and asymmetric flash warpage typical of mass-market white-metal castings or basic plastic components. Deployed in timber deck chocks on a forecastle, lashed securely against a bulwark, suspended from cathead tackle, or displayed standalone on a collector plinth, the assembly features true-to-scale physical relief, creating realistic physical shadow lines and deep mechanical contrast that standard kit placeholders cannot match.

• Museum-Quality Architectural Replication: Developed using historical naval ground tackle specifications, period shipyard rigging treatises, and archival maritime records to accurately reproduce the exact physical dimensions, fluke blade taper, crown juncture geometry, and transverse stock proportions of the standardized 400-pound Admiralty Pattern anchor.
• Versatile 1/20 Maritime Scope: Specifically engineered for large-format 1/20 scale IJN coastal auxiliaries, sub-chasers, harbor launches, working RC vessels, and period 19th-century sailing vessels, including the racing schooner America (1851).
• Exposed Hardware & Forging Detail: Authentically captures the tapered square-to-octagonal shank, sweeping curved arms with reinforced crown root, sharpened spade flukes with raised central stiffening spines, functional transverse stock with ball-end terminal and bent retaining arm, stock-locking collar keyway, and open bow shackle with structural pin head detail.
• True-to-Scale Volumetric Depth: Replicates the true physical three-dimensional presence of heavy wrought iron and forged naval steel, casting realistic deep shadows beneath the curved arms, behind the angled flukes, and through the open eye of the mooring shackle.
• Functional Scale Rigging Clearance: Features an open shackle throat and authentic spacing between the shank, stock, and arms, allowing modelers to run real scale stud-link chain, wire cable, or natural hemp/manila anchor rodes directly through the shackle eye for true operational rigging.
• Intelligent Material Optimization: Expertly designed in High Detail Resin Grey with an optimized structural profile to manage material mass while preserving maximum rigidity, ensuring razor-sharp, warp-free fluke blades, a dead-straight shank, and a rigid stock that resist drooping, bending, or snapping under the tension of miniature rigging lines.

Premium Material: High Detail Resin Grey

To satisfy the absolute highest demands of micro-detailed static presentation across delicate scale maritime hardware and specialized fleet equipment, this 1/20 scale anchor is crafted exclusively from premium High Detail Resin Grey.

• Exceptional Feature Definition: This premier formula achieves surgical multi-dimensional precision and an ultra-smooth, non-porous surface finish, capturing the finest mechanical facets—from razor-sharp fluke edges and crown forge blend lines to miniature shackle pin heads and stock-collar keyways—with absolute sharpness and zero layer line distraction.
• Professional Foundation: Provides an ultra-smooth base specifically optimized for high-quality marine primers, fine-scale technical pin-washes, chipping mediums, micro-masking, and authentic naval arsenal finishes, ensuring flawless paint adherence.
• Superior Quality: Manufactured by distefan 3d print, ensuring clean surfaces, true axial symmetry, and outstanding dimensional integrity for a luxurious, professional-grade finish.

Key Features and Specifications

• Accurate 1/20 Scale Precision: Precision-engineered for seamless, historically proportional integration with large-scale 1/20 IJN vessels, coastal combatants, period sailing craft, and museum-grade collector exhibits.
• Accurate Reference Proportions: Measures 74 mm (2.91 inches) in overall length, 48 mm (1.89 inches) in arm width, and 75 mm (2.95 inches) in stock length, based on historical 400-pound Admiralty Pattern anchor dimensions.
• Dual Historical Relevance: Faithfully represents the physical configuration of the standardized 400-pound anchor employed across Imperial Japanese Navy auxiliary and patrol craft during World War II, as well as classic mid-19th-century schooners like America (1851).
• Hollowed Lightweight Rigidity: Features an engineered structural geometry that minimizes weight while maintaining exceptional structural stiffness across the long shank and slender stock arms.
• Unpainted Finish: Arrives completely unpainted, providing an open canvas for custom finishing. Customize the anchor to reflect standard IJN shipyard gray (Kure, Sasebo, Yokosuka), protective black asphaltum tar, weathered wrought iron, or oxidized harbor service finishes.
• The Definitive Ground Tackle Overhaul: Replaces simplified, soft-edged commercial accessories with a sophisticated, mechanically correct three-dimensional representation of historic naval ground tackle.

A Canvas for Battle-Tested Fleet Artistry

Arriving in its raw finish, the 1/20 IJN 400lbs. Admiralty Pattern Anchor serves as the ultimate starting point for advanced multi-layer painting, precise component color-blocking, and realistic maritime weathering.

• The Authentic Maritime Scheme: For IJN auxiliary and patrol vessels, base-coat the anchor assembly in authentic period-correct shipyard gray—such as dark Kure Gray, greenish Sasebo Gray, or neutral Yokosuka Gray. For classic service or 19th-century schooners like America, finish the entire anchor in a semi-gloss or satin black asphaltum lacquer, representing the historical tarred coating used to protect forged iron from saltwater corrosion. Paint the heavy shackle pin, stock key, and crown attachment ring in dark Parkerized steel, burnished graphite, or oily dark metal to create subtle mechanical contrast against the main body.
• Realistic Frontline Operational Weathering: Anchors submerged in seabed silt, dragged across rocky shoals, and lashed on exposed forecastle decks thrive on rich washes, textural filters, and environmental staining. Apply rich dark raw umber and soot black oil washes into the crown juncture, around the shackle pin lugs, and behind the spade flukes to establish deep physical shadow definition. Add realistic weathering effects like bare-metal silver and dark steel burnishing along the cutting edges of the spade flukes and the bottom of the crown where ground contact scraped away protective paint, dried white salt spray mineral crusting layered across upper surfaces, localized rust blooms weeping downward from the shackle eye and stock collar, and gritty dried mud deposits clinging to the inner fluke corners to capture the true look of a veteran vessel at anchor in coastal waters.
