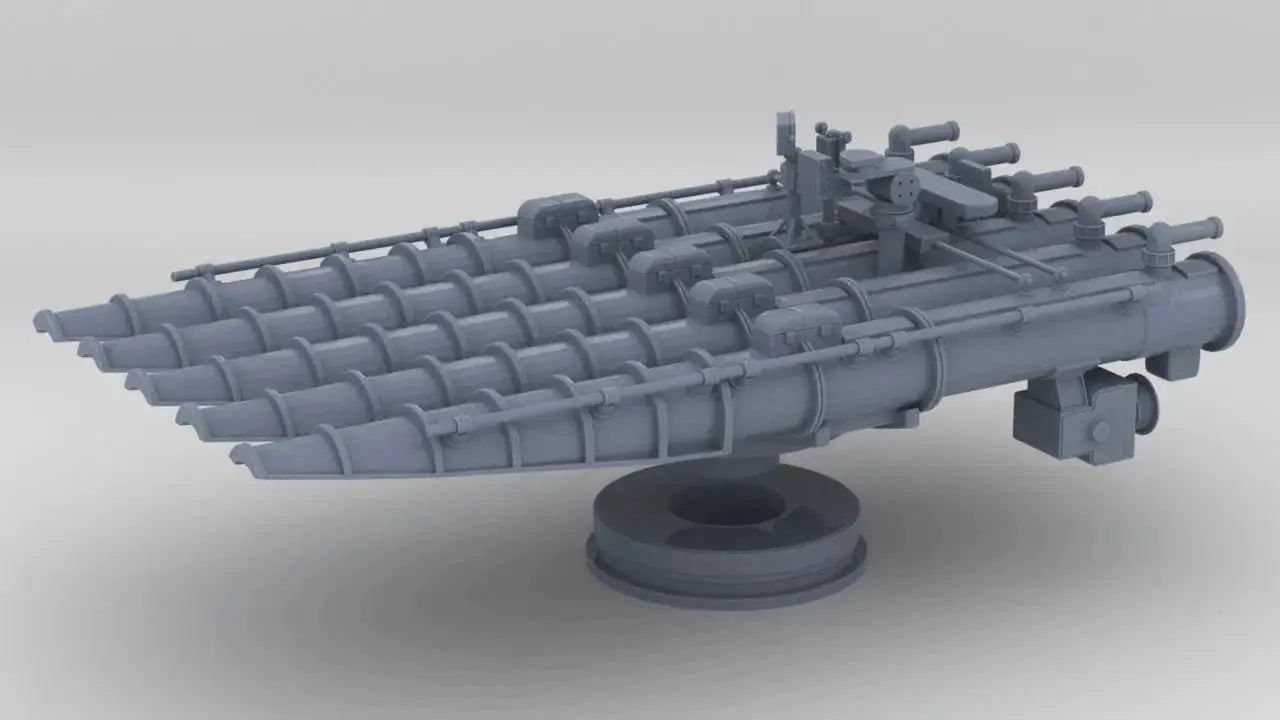

1/125 USN 21in Quintuple Torpedo Mount Set

1/125 USN 21in Quintuple Torpedo Mount Set: Destroyer Surface Strike Weapon Architecture Realism

Bring an exceptional layer of technical density, structural authority, and naval combat realism to the amidships torpedo decks, blast-shield walkways, and centerline weapon stations of your large-format destroyer models with the masterfully engineered 1/125 Scale U.S. Navy (USN) 21in Quintuple Torpedo Mount Set. Serving as the primary offensive anti-ship striking armament aboard World War II United States Navy destroyers—most notably the legendary Fletcher, Gearing, Allen M. Sumner, Benson, and Gleaves classes—the standardized Mark 14 and Mark 15 21-inch quintuple torpedo tube mounts delivered lethal salvos of Mark 15 torpedoes against enemy battle lines, heavy cruisers, and merchant convoys throughout intense Pacific night surface actions. Positioned prominently along the ship's centerline between the boiler uptakes and deckhouses, these massive trainable quintuple banks featured heavy traversing carriages, spoon-shaped muzzle blast lips, pneumatic impulse charging chambers, spoon-extension safety latches, and an elevated armored operator cockpit with gyro-setting controls. At a prominent 1/125 scale, this standalone upgrade captures the cylindrical tube barrels, mechanical firing gear, training gearboxes, operator control cab, and circular deck foundation turntable of original Bureau of Ordnance (BuOrd) engineering blueprints with flawless structural clarity, making it an indispensable asset for discerning maritime shipwrights anchoring their veteran fleet representations.

Engineering Precision and Fleet Destroyer Ordnance Fidelity

At an expansive 1/125 scale, centerline torpedo armament steps completely out of the background to become a dominant mechanical centerpiece across the ship's waist, exposing every millimeter of barrel wall thickness, pneumatic impulse line piping, traversing handwheel gear teeth, and foundation turntable bolting to close visual-spatial inspection. This replica quintuple torpedo mount set captures the muscular industrial profile of historic American naval ordnance with exquisite clarity, completely eliminating the soft features, thick solid-cast plastic barrels, missing pneumatic hardware, and tedious seam line cleanup typical of standard factory injection-molded plastic kits or soft white metal castings. Deployed onto the torpedo deck of your 1/125 scale build, each mount features true-to-scale physical contours, creating realistic physical shadow lines and deep visual relief that basic kit placeholders cannot match.

• Museum-Quality Arsenal Replication: Developed using original technical layouts, historical U.S. Navy Bureau of Ordnance blueprints, and archival shipyard builder plans to accurately reproduce the exact physical dimensions, tube cluster spacing, carriage layout, and operator station geometry of active wartime combat units.
• Prototypical Fleet Application: Designed specifically for large-format 1/125 scale U.S. Navy fleet destroyers (such as vintage and modern 1/125 scale Fletcher-class kits), scratch-built hulls, operational RC combat models, and museum-grade maritime diorama displays.
• Comprehensive Destroyer Suite: Packaged as a dedicated multi-mount set to provide complete forward and aft centerline battery coverage across the vessel's amidships deck layout.
• Exposed Mechanical & Firing Detail: Authentically captures the five 21-inch barrel assemblies with muzzle lips, breech-loading door hinge hardware, black-powder and pneumatic impulse chambers, mechanical gyro-setting shafts, training gearboxes, and open or armored operator stations with handwheels, preserving structural sharpness and realistic spatial proportions.
• True-to-Scale Volumetric Depth: Replicates the true physical three-dimensional presence of heavy naval torpedo train assemblies, casting realistic deep shadows beneath the tube cluster, behind the operator cab, and against non-skid deck surfaces with authentic mechanical contrast.
• Streamlined Deck Integration: Features an engineered turntable mounting base with an integrated central locating pivot designed to seat cleanly and securely into standard 1/125 scale deck recesses, drastically reducing assembly friction and streamlining installation.
• Intelligent Material Optimization: Expertly designed in High Detail Resin (available in Grey or White formulas) with an optimized, lightweight structural profile to manage material mass across its prominent 1/125 scale footprint. This configuration ensures an exceptionally rigid, warp-free, and lightweight weapon assembly that mounts effortlessly without causing localized deck sagging or top-heavy balance issues on static presentations or large operational RC destroyer hulls.

Premium Material: High Detail Resin (Grey/White)

To satisfy the absolute highest demands of micro-detailed static presentation across delicate scale weapon machinery, this USN 21in quintuple torpedo mount set is crafted from premium High Detail Resin (available in Grey or White formulas).

• Exceptional Feature Definition: This premier formula achieves surgical multi-dimensional precision and an ultra-smooth, non-porous surface finish, capturing the finest mechanical facets—from razor-sharp barrel muzzle lips to minute training gear teeth—with absolute sharpness and zero layer line distraction.
• Professional Foundation: Provides an ultra-smooth base specifically optimized for high-quality marine primers, fine-scale technical pin-washes, precision detail hand-painting, and authentic wartime US Navy vertical camouflage finishes, ensuring flawless paint adherence.
• Superior Quality: Manufactured by distefan 3d print, ensuring clean surfaces, straight barrel alignment, and outstanding dimensional integrity for a luxurious, professional-grade finish.

Key Features and Specifications

• Accurate 1/125 Scale Precision: Precision-engineered for perfect, historically proportional integration with standard 1/125 scale U.S. Navy destroyer kits, custom scratch-built RC warships, and museum-grade static maritime displays.
• Historically Authentic Fleet Hardware: Authentically represents the physical configuration of the standardized Mark 14 and Mark 15 21-inch quintuple torpedo tube mounts deployed aboard U.S. Navy destroyers across major Pacific naval engagements, including Guadalcanal, Empress Augusta Bay, and Leyte Gulf.
• Open Tube Muzzle Realism: Features hollowed barrel muzzles with authentic internal relief, eliminating the shallow, blank plastic face typical of stock kit components.
• Unpainted Finish: Arrives completely unpainted, providing a blank canvas for your creative vision. Customize the mounts to reflect standard U.S. Navy Measure 12 Modified, Measure 21 (all-over 5-N Navy Blue), Measure 22 (graded Haze Gray/Navy Blue), or complex Measure 31/32 dazzle camouflage schemes.
• The Definitive Amidships Armament Overhaul: Replaces simplified, two-piece plastic kit moldings with a sophisticated, historically correct three-dimensional representation of vital naval striking ordnance.

A Canvas for Battle-Tested Fleet Artistry

Arriving in its raw finish, the 1/125 USN 21in Quintuple Torpedo Mount Set serves as the ultimate starting point for advanced multi-layer painting, precise component color-blocking, and realistic maritime weathering.

• The Fleet Weapon Scheme: Base-coat the five-tube cluster, carriage arms, and operator cab in authentic period-correct U.S. Navy vertical surface colors—such as overall 5-N Navy Blue for a classic Measure 21 scheme, or standard 5-H Haze Gray for Measure 22. Paint the interior barrel bores in dark soot black or gunmetal, finish the pneumatic impulse tanks in semi-gloss black or Parkerized dark iron, and pick out operator handwheels, gyro indicators, and elevation quadrants in dark steel, graphite, or aged brass. If displaying a tube loaded, detail the rounded bronze nose and steel casing of an exposed Mark 15 torpedo seated just inside the muzzle lip to create striking metallic contrast.
• Realistic Frontline Operational Weathering: High-relief torpedo banks thrive on rich washes, textural filters, and environmental staining. Apply rich dark raw umber and neutral black oil washes around the individual barrel saddles, under the carriage framework, and between the base turntable gear teeth to establish deep mechanical shadows. Add highly realistic weathering effects like bare-metal chipping and wear along the operator cab entryways and footplates where torpedomen stood drill watches, dark cartridge and gear lubricant weeping from the traversing gearboxes, dried white salt spray encrustations along windward barrel surfaces from pounding Pacific head seas, and subtle vertical rust streaks weeping down toward deck waterways to capture the true look of frontline naval ordnance enduring relentless surface combat operations.
