1/16 US PT Boat 109 Shaft Set

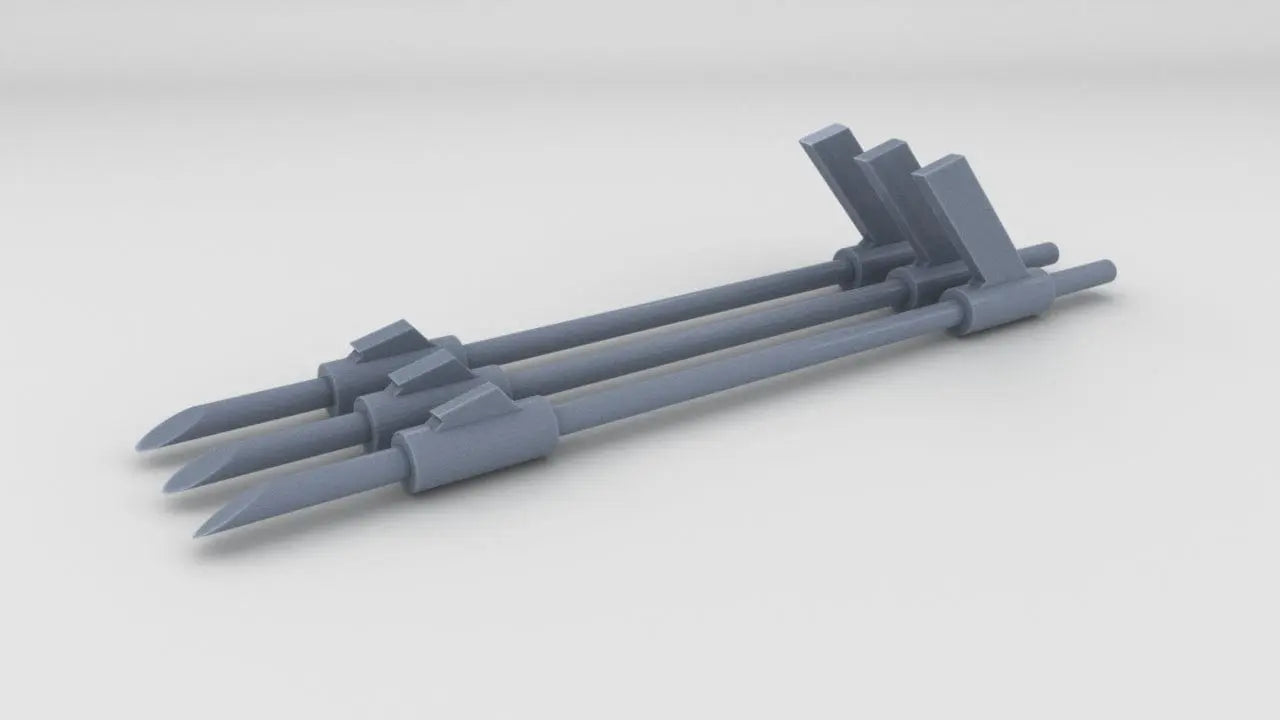

1/16 USN PT Boat 109 Shaft Set: Large-Scale Combat Propulsion Realism

Bring an exceptional layer of technical density, underwater authority and historical precision to the lower hull running gear layout of your heavy patrol craft with the meticulously engineered 1/16 Scale US Navy (USN) PT Boat 109 Shaft Set. Serving as the vital mechanical linkages transferring the massive raw horsepower of three Packard marine engines directly to the high-speed propellers, these propulsion shafts were critical to the legendary speed and agility of the Elco 80-foot class patrol torpedo boats. Deployed along the deep centerline and quarter-hull steps, this triple-shaft configuration allowed the nimble wooden "Green Dragons" to hammer through volatile ocean swells, execute high-stakes torpedo runs and dodge heavy enemy fire in the volatile waters of the Solomon Islands. At this commanding, ultra-large 1/16 format, this comprehensive hardware upgrade set captures the distinct cylindrical shaft profiles, heavy stabilizing strut supports and hull-mounting block geometry of the original naval gear with museum-grade precision, making it an indispensable asset for discerning maritime shipwrights and large-scale radio-controlled (RC) static hull builders.

Engineering Precision and Lower Hull Fidelity

At a massive 1/16 scale, underwater running gear and propulsion lines transition from basic background shapes into dominant visual focal points, exposing every shaft angle, bearing sleeve contour and strut interface to close visual inspection. This replica set captures the rugged mechanical profile of the standardized Elco shipyard hardware with exquisite clarity, completely eliminating the soft contours, thick molding flash and tedious alignment cleanup typical of standard multi-piece factory kit parts. Every individual shaft cylinder, V-strut support framing and structural hull-attachment pad is rendered with sharp, industrial clarity, providing a flawless structural foundation right out of the box.

• Museum-Quality Shipyard Replication: Developed using original technical layouts, historical shipyard blueprints and archival data to accurately reproduce the exact physical dimensions, shaft lengths and strut angles characteristic of the PT-109 under-hull profile.
• Complete High-Impact Propulsion Layout: Packaged as a comprehensive multi-station hardware solution containing a precision-matched set, providing the exact triple-shaft and strut array required to fully populate the lower machinery gear of your large-format patrol craft.
• True-to-Scale Component Profiles: Replicates the true curved structural thickness of the cast-bronze struts and steel shaft sleeves, creating authentic water-flow lines and realistic structural relief that standard factory kit parts or flat aftermarket modifications cannot realistically duplicate.
• Intelligent Lightened Engineering: Designed with an optimized internal profile to reduce overall weight and conserve material. This smart layout ensures lightweight structural additions that mount cleanly to delicate lower hulls or plastic without causing surface distortion, warping or assembly alignment issues.

Premium Material: High Detail Resin Grey

To ensure the uniform cylindrical shafts, crisp strut bracket alignment steps and smooth hydrodynamic faces showcase the absolute sharpest technical definitions, this primary underwater hardware set is crafted from professional High Detail Resin Grey.

• Exceptional Feature Definition: The high-quality resin achieves superior multi-dimensional precision and a remarkably smooth surface finish, perfect for maintaining sharp, uniform profiles on long structural elements and critical running fixtures without any distracting layer lines.
• Professional Foundation: Provides an ultra-smooth, non-porous base specifically optimized for high-quality marine primers, fine multi-toned anti-fouling coatings and optimal naval paint adherence.
• Superior Quality: Manufactured by distefan 3d print, ensuring clean surfaces, precise geometry alignment and outstanding dimensional integrity for a luxurious, professional-grade finish.

Key Features and Specifications

• Accurate 1/16 Scale Precision: Precision-engineered for perfect, historically proportional integration with massive 1/16 scale PT boat kits, high-end museum display projects and custom scratch-built shipyard refits.
• Elco 80' Class Specific Hardware: Engineered with specific historical accuracy to match the unique structural constraints, shaft alley arrangements and localized running hardware nuances correct for an authentic Pacific theater configuration.
• Unpainted Finish: Arrives completely unpainted, providing a blank canvas for your creative vision. Customize the assemblies to reflect factory-fresh shipyard coatings or heavily fouled, campaign-ready combat gear.
• The Definitive Propulsion Upgrade: Replaces simplified, blocky molding or soft injection-molded plastic kit parts with a sophisticated, historically correct three-dimensional representation of vital naval mechanical architecture.

A Canvas for Battle-Tested Fleet Artistry

Arriving in its raw resin finish, the USN PT Boat 109 Shaft Set serves as the ultimate starting point for advanced multi-layer painting, precise material color-blocking and realistic maritime weathering.

• The "Green Dragon" Hull: Coat the primary strut supports and mounting pads in authentic period-correct US Navy underwater paints—such as standard copper-based anti-fouling Red or durable Dull Black—ensuring the ship's lower waterline scheme flows flawlessly across the mounting blocks. Block out the active rotating shaft lines in a metallic steel, bright chrome or polished dark iron tone to contrast sharply against the primary hull colors. The uniform resin surfaces are ideal for clean color-blocking and maintaining razor-sharp masking line transitions against the lower hull margins.
