1/192 USN 5"/38 Cal. "Double Knuckle" Mount Hard, Late Set

1/192 USN 5"/38 Cal. "Double Knuckle" Mount Hard, Late Set: Fletcher-Class Main Battery Architecture Realism

Bring an exceptional layer of technical density, structural authority, and naval combat realism to the forecastle sheer, amidships superstructures, and fantail stations of your mid-scale destroyer models with the masterfully engineered 1/192 Scale U.S. Navy (USN) 5"/38 Cal. "Double Knuckle" Mount Hard, Late Set. Revered as the finest dual-purpose naval gun of World War II, the standardized 5-inch/38 caliber Mark 12 gun in the enclosed Mark 30 single mount formed the primary surface-strike and long-range anti-aircraft battery across the United States Navy’s legendary Fletcher-class destroyers. Fitted in this specialized late-war "Double Knuckle" configuration, these reinforced gunhouse shields featured distinctive dual horizontal plate-breaks across the lower front apron and barbette interface—an engineering refinement developed to optimize interior crew clearances, reinforce ballistic splinter resistance, and deflect heavy green water during high-speed Pacific combat task force sorties. At a dedicated 1/192 scale (the classic 1/16-inch-to-the-foot naval scale), this complete main battery upgrade captures the faceted armor face contours, reinforced "double knuckle" lower apron folds, gun barrel collar sleeves, sighting hood ports, rear crew access doors, and underside turntable rings of original Bureau of Ordnance (BuOrd) engineering blueprints with flawless structural clarity, making it an indispensable asset for discerning maritime shipwrights anchoring their veteran fleet representations.

Engineering Precision and Fleet Destroyer Gunnery Fidelity

At an intricate 1/192 scale, main battery gunhouses step completely out of the background to become dominant mechanical centerpieces commanding the profile from bow to stern, exposing every millimeter of shield plate taper, sighting port brow depth, rear door dogging lever detail, and foundation turntable bolting to close visual-spatial inspection. This replica 5"/38 late-set mount collection captures the muscular industrial profile of historic American naval gunnery with surgical clarity, completely eliminating the soft features, blobby contours, incorrect apron angles, and tedious multi-piece seam line cleanup typical of standard factory injection-molded plastic kits or soft white metal castings. Deployed across Mounts 51 through 55 on your 1/192 scale build, each turret features true-to-scale physical contours, creating realistic physical shadow lines and deep visual relief that basic kit placeholders cannot match.

• Museum-Quality Arsenal Replication: Developed using original technical layouts, historical U.S. Navy Bureau of Ordnance blueprints, and archival shipyard gunnery plans to accurately reproduce the exact physical dimensions, "double knuckle" apron break angles, gun barrel elevation axis, and rear ventilation louvers of active wartime combat units.
• Late-War Fletcher-Class Specific: Specifically tailored for late-war and modernized 1/192 scale Fletcher-class destroyers (as well as related Benson, Gleaves, and Sumner applications), accurately capturing the reinforced "Hard" shield geometry with double knuckle apron folds utilized throughout intense 1944–1945 Pacific operations.
• Complete Main Battery Complement: Packaged as a dedicated multi-mount battery set, providing the full complement required to completely re-arm all primary 5-inch stations along the centerline of your vessel.

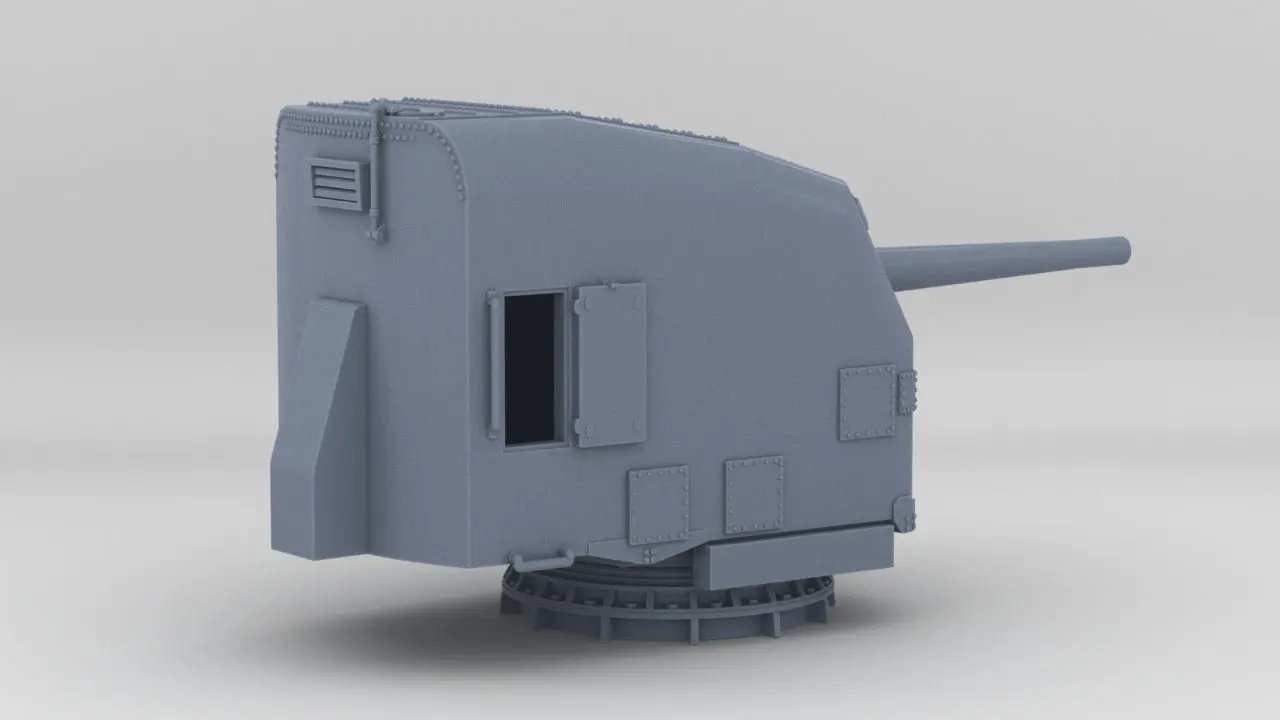

• Exposed Gunhouse & Mechanical Detail: Authentically captures the 5"/38 gun barrel with muzzle flare and canvas blast bag attachment rim, optical sighting hood visors with rain brows, rear double-door access panels with hinge and latch impressions, shell ejection chute covers, roof stiffener ribs, and lower barbette mounting coamings, preserving structural sharpness and realistic spatial proportions.
• True-to-Scale Volumetric Depth: Replicates the true physical three-dimensional presence of heavy naval gun mounts, casting realistic deep shadows beneath the gunhouse apron overhangs, around the gun barrel collars, and against teak-surfaced or non-skid steel deck plating with authentic mechanical contrast.
• Streamlined Deck Integration: Features engineered circular base mounting rings with integrated central locating pivots designed to seat cleanly and securely into standard 1/192 scale deck recesses or flat deckhouses, drastically reducing assembly friction and streamlining installation.
• Intelligent Hollowed Engineering: Expertly designed in High Detail Resin Grey with an optimized, lightweight internal profile to manage material mass across its prominent 1/192 scale footprint. This configuration ensures an exceptionally rigid, warp-free, and lightweight turret shell that mounts effortlessly without causing localized deck sagging or top-heavy balance issues on static presentations or operational RC destroyer hulls.

Premium Material: High Detail Resin Grey

To satisfy the absolute highest demands of micro-detailed static presentation across delicate scale ordnance hardware, this USN 5"/38 caliber "Double Knuckle" mount set is crafted exclusively from premium High Detail Resin Grey.

• Exceptional Feature Definition: This premier formula achieves surgical multi-dimensional precision and an ultra-smooth, non-porous surface finish, capturing the finest mechanical facets—from razor-sharp shield knuckle plate edges to delicate sighting hood slits—with absolute sharpness and zero layer line distraction.
• Professional Foundation: Provides an ultra-smooth base specifically optimized for high-quality marine primers, fine-scale technical pin-washes, micro-masking, and authentic wartime US Navy camouflage finishes, ensuring flawless paint adherence.
• Superior Quality: Manufactured by distefan 3d print, ensuring clean surfaces, straight gun barrel alignment, and outstanding dimensional integrity for a luxurious, professional-grade finish.

Key Features and Specifications

• Accurate 1/192 Scale Precision: Precision-engineered for perfect, historically proportional integration with standard 1/192 scale (1/16" = 1') U.S. Navy destroyer kits, custom scratch-built hulls, operational RC combat models, and museum-grade maritime dioramas.
• Historically Authentic Fleet Hardware: Authentically represents the physical configuration of the standardized Mark 30 late-pattern enclosed mount deployed aboard U.S. Navy destroyers during the Philippine Sea, Leyte Gulf, Iwo Jima, and Okinawa campaigns.
• Distinctive "Double Knuckle" Apron Geometry: Features the distinct lower faceted armor knuckle breaks designed into later-production mounts to clear deck obstructions and reinforce the forward shield plate against concussive blasts.
• Unpainted Finish: Arrives completely unpainted, providing a blank canvas for your creative vision. Customize the mounts to reflect standard U.S. Navy Measure 21 (all-over 5-N Navy Blue), Measure 22 (graded 5-H Haze Gray / Navy Blue), Deck Blue (20-B), or complex Measure 31/32 dazzle camouflage patterns.
• The Definitive Main Battery Overhaul: Replaces simplified, two-piece split plastic kit moldings with a sophisticated, historically correct three-dimensional representation of vital naval striking ordnance.

A Canvas for Battle-Tested Fleet Artistry

Arriving in its raw finish, the 1/192 USN 5"/38 Cal. "Double Knuckle" Mount Hard, Late Set serves as the ultimate starting point for advanced multi-layer painting, precise component color-blocking, and realistic maritime weathering.

• The Fleet Weapon Scheme: Base-coat the faceted gunhouse shield, rear doors, and lower barbette collar in authentic period-correct U.S. Navy vertical surface colors—such as overall 5-N Navy Blue for a classic Pacific Measure 21 scheme, or standard 5-H Haze Gray for Measure 22. Paint the gun barrels in matching camouflage or dark Parkerized gunmetal, finish the flexible canvas blast bloomers (gun bags) in off-white, light gray, or weathered cream canvas, and detail the interior recess of the sighting hoods in flat anti-glare charcoal. Pick out rear door latches, dogging levers, and foundation ring bolts in dark graphite or aged steel to establish crisp mechanical contrast against the surrounding armor plate.
• Realistic Frontline Operational Weathering: High-relief enclosed gunhouses thrive on rich washes, textural filters, and environmental staining. Apply rich dark raw umber and neutral soot black oil washes along the distinct "double knuckle" plate seams, beneath the sighting brows, and around the rear access door frames to create deep structural shadows. Add highly realistic weathering effects like subtle powder burns and muzzle blast soot feathering backward across the forward roof from high-tempo anti-aircraft barrage fire, bare-metal chipping and foot wear along the rear door sills where gun captains entered the mount, dried white salt spray mineral crusting heavily layered over the lower forward apron from pounding Pacific swells, and delicate vertical rust streaks weeping down toward deck waterways to capture the true look of frontline fleet artillery defending against relentless kamikaze attacks.
