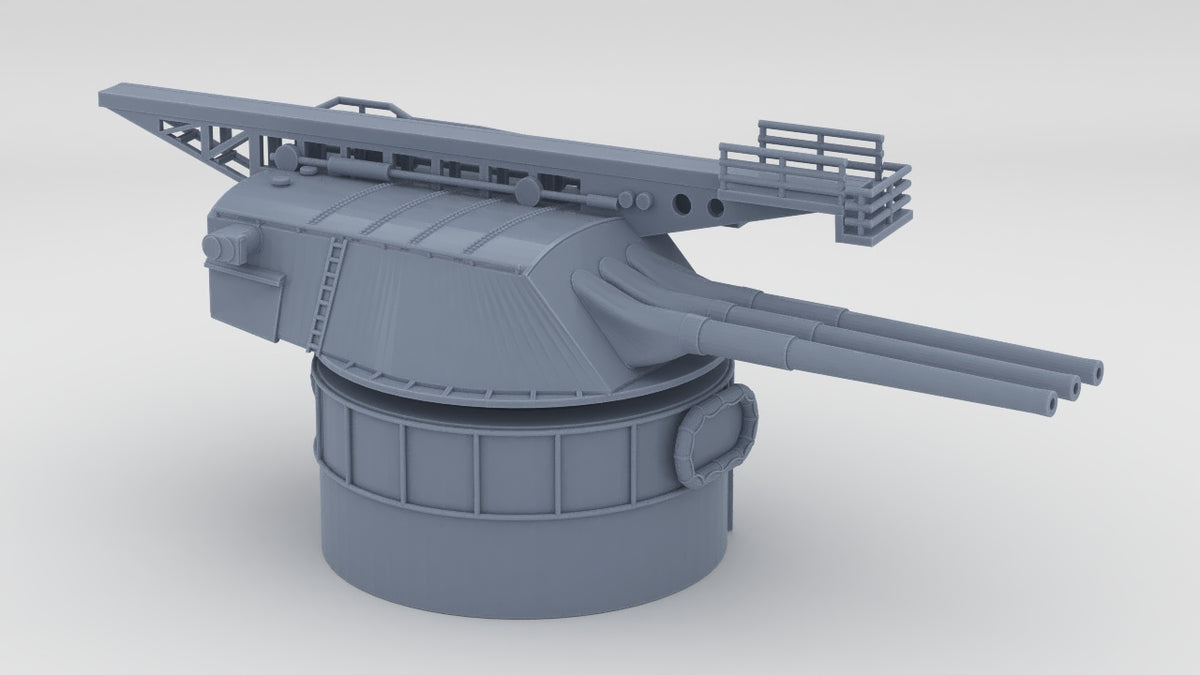

1/200 USN 14-inch/45-Caliber Gun Set (Turret 3 with Aircraft Catapult)

1/200 USN 14-inch/45-Caliber Gun Set (Turret 3 with Aircraft Catapult): Dreadnought Main Battery & Naval Aviation Fidelity

Bring an exceptional layer of technical density, structural authority, and naval combat realism to the aft quarterdeck and rear superstructure lines of your large-format capital ship models with the masterfully engineered 1/200 Scale USN 14-inch/45-Caliber Gun Set (Turret 3 with Aircraft Catapult). Formally designated as the 14"/45 caliber Mark 1/Mark 3 gun mounted in heavily armored three-gun turrets, this devastating battery served as the elevated, super-firing anchor of the stern main armament aboard the Pennsylvania-class battleship USS Arizona (BB-39). Distinguishing Turret 3 from all other main battery mounts aboard the dreadnought was the factory-fitted powder-charge aircraft catapult mounted directly atop its armored roof. Configured specifically to launch the ship's Vought-Sikorsky OS2U Kingfisher observation-scout floatplane on fleet spotting, reconnaissance, and anti-submarine missions, this combined artillery and naval aviation platform defined the iconic aft silhouette of the USS Arizona during her Pacific Fleet service through the morning of December 7, 1941, at Pearl Harbor. Scaled precisely to standard 1/200 builder scale, this dedicated standalone overhaul includes the fully detailed triple turret housing with roof-mounted catapult turntable foundation, three turned-profile 14"/45 gun barrels, realistic canvas blast bags (gas bags/buckram covers), the tall aft super-firing deck barbette, and a high-detail P-type powder catapult rail assembly with Kingfisher launch carriage and recovery cradle, capturing original Bureau of Ordnance (BuOrd) and Bureau of Ships (BuShips) builder blueprints with flawless fidelity.

Engineering Precision, Super-Firing Artillery & Aircraft Catapult Fidelity

At 1/200 scale, the aft super-firing turret topped by an aircraft catapult represents one of the most mechanically complex and high-contrast focal points of the entire ship, exposed to immediate visual scrutiny across open lattice girders, catapult launch rails, armor plate slope angles, barrel concentricity, and tall barbette cylinder relief. This replica Turret 3 assembly captures the muscular profile of pre-war American naval heavy artillery integrated with precision naval aviation gear, completely eliminating the thick, soft-molded plastic seams, poorly draped vinyl mantlet covers, warped photo-etched catapult frets, and drooped multi-piece barrels typical of mass-production plastic kits. Deployed aft of the mainmast tripod on your 1/200 scale build, each component features true-to-scale physical relief, creating realistic physical shadow lines and deep mechanical contrast that basic kit placeholders cannot match.

• Museum-Quality Arsenal Replication: Developed using original technical layouts, historical U.S. Navy Bureau of Ordnance blueprints, and archival Pearl Harbor photographic surveys to accurately reproduce the exact physical dimensions, front glacis plate slope, roof overhang, gun port spacing, tall cylindrical super-firing barbette proportions, and full P-type powder catapult geometry of Turret 3 on the USS Arizona (BB-39).
• Comprehensive Multi-Part Weapons and Aviation Suite: Delivered as a coordinated multi-part arsenal set:
  • Main Turret Armor Shell: Faithfully reproduces the multi-angled face plate, curved rear bustle, sighting periscope hoods, roof access hatches, exterior armor joint lines, and circular roof-top catapult turntable mounting collar.
  • Independent 14"/45 Barrels: Features three true-to-scale, hollowed-muzzle gun barrels capturing the stepped sleeve bands, muzzle crowns, and dead-straight alignment.
  • Realistic Canvas Blast Bags (Gas Bags): Sculpted with authentic organic fabric folds, retention clamp banding, and seam relief where the canvas sleeves sealed the open gun ports against explosive muzzle flash and sea spray.
  • Tall Aft Super-Firing Deck Barbette: Sized and contoured specifically to seat onto the aft deckhouse transition, capturing the elongated armored cylinder wall, deck-joint coamings, and turntable seating flange.
  • P-Type Aircraft Catapult & Carriage: Captures the full open-truss catapult rail beam, rotating turntable base, compressed-air/powder impulse piston housing, buffer cylinder, Kingfisher launching shuttle carriage, and aircraft belly float securing cradle.
• Prototypical 1/200 Capital Ship Scope: Specifically engineered for large-format 1/200 scale battleship models (including the Trumpeter USS Arizona BB-39 kit and related Pennsylvania-class builds), custom scratch-built RC hulls, and museum-grade maritime diorama displays.
• Exposed Hardware & Mechanical Detail: Authentically captures the armored rangefinder hood ears on the rear sides, sighting scope blisters, roof-mounted shell hoist access scuttles, perimeter tie-down cleats, catapult arresting gear pulleys, and tall barbette deck mounting rings with raised structural fastener impressions.
• True-to-Scale Volumetric Depth: Replicates the true physical three-dimensional presence of heavy naval armor and structural aviation steel, casting realistic deep shadows beneath the raised gun barrels, around the canvas blast bag folds, through the open trusswork of the catapult beam, and down the full height of the tall super-firing barbette face.
• Streamlined Deck Integration: Engineered with precision-molded flat lower barbette mating surfaces designed to seat cleanly, squarely, and securely flush onto standard 1/200 scale deck surfaces, drastically reducing assembly friction and streamlining installation.
• Intelligent Hollowed Engineering: Expertly designed in High Detail Resin Grey with an optimized internal core cavity across the turret shell and tall barbette to manage material mass while preserving maximum rigidity, ensuring crisp, warp-free gun barrels, dead-straight catapult rails, and structural walls that resist distortion over time.

Premium Material: High Detail Resin Grey

To satisfy the absolute highest demands of micro-detailed static presentation across delicate scale ordnance, fine aircraft catapult trusses, and specialized naval armor mountings, this 14-inch/45-caliber gun set is crafted exclusively from premium High Detail Resin Grey.

• Exceptional Feature Definition: This premier formula achieves surgical multi-dimensional precision and an ultra-smooth, non-porous surface finish, capturing the finest mechanical facets—from razor-sharp armor plate bevels and open catapult lattice diagonal ribs to miniature roof hatch dogs, subtle canvas stitching, and barbette flange bolt heads—with absolute sharpness and zero layer line distraction.
• Professional Foundation: Provides an ultra-smooth base specifically optimized for high-quality marine primers, fine-scale technical pin-washes, micro-masking, and authentic pre-war and early-war US Navy camouflage finishes, ensuring flawless paint adherence.
• Superior Quality: Manufactured by distefan 3d print, ensuring clean surfaces, straight catapult rail alignment, dead-straight barrel concentricity, and outstanding dimensional integrity for a luxurious, professional-grade finish.

Key Features and Specifications

• Accurate 1/200 Scale Precision: Precision-engineered for seamless, historically proportional integration with standard 1/200 scale capital ship kits, scratch-built hulls, and museum-grade static displays.
• Historically Authentic Fleet Hardware: Faithfully represents the physical configuration of the standardized 14-inch/45-caliber triple main battery Turret 3 with roof-mounted OS2U Kingfisher aircraft catapult as fitted aboard the USS Arizona (BB-39) in late 1941.
• Complete Combined Battery & Aviation Suite: Includes one (1) high-detail triple turret shell with catapult mounting platform, three (3) 14"/45 gun barrels, three (3) sculpted canvas blast bags (gas bags), one (1) tall super-firing separated deck barbette, one (1) open-truss catapult rail assembly, and one (1) floatplane launching carriage.
• Separated Barbette Modularity: Allows modelers to paint, weather, and align the tall barbette, turret, and catapult structure separately before final assembly, ensuring clean deck borders without paint bleed.
• Hollowed Lightweight Design: Features an engineered structural geometry that minimizes top-deck weight on the hull while maintaining maximum structural stiffness across every armor facet, barrel, and extended catapult girder.
• Unpainted Finish: Arrives completely unpainted, providing an open canvas for custom finishing. Customize the assembly to reflect standard U.S. Navy Measure 1 (5-D Dark Gray lower works with light gray upper works), wartime Measure 21 (overall 5-N Navy Blue), or pre-war No. 5 Standard Navy Gray finishes.
• The Definitive Super-Firing & Aviation Battery Overhaul: Replaces simplified, ill-fitting kit plastic parts, fragile photo-etch frets, and unconvincing vinyl mantlet covers with a sophisticated, historically correct three-dimensional representation of vital capital ship naval artillery and floatplane launch hardware.

A Canvas for Battle-Tested Fleet Artistry

Arriving in its raw finish, the 1/200 USN 14-inch/45-Caliber Gun Set (Turret 3 with Aircraft Catapult) serves as the ultimate starting point for advanced multi-layer painting, precise component color-blocking, and realistic maritime weathering.

• The Battleship Row Scheme: Base-coat the armored turret shell, roof, and tall cylindrical barbette in authentic period-correct vertical camouflage colors—such as 5-D Dark Gray or pre-war No. 5 Standard Navy Gray matching BB-39's hull and aft superstructure level in late 1941. Paint the heavy 14-inch gun barrels in matching camouflage gray or dark weathered gunmetal, highlighting the open muzzle bores in matte black. Finish the sculpted canvas blast bags (gas bags) in a contrasting weathered canvas buff, off-white, or blackened treated-canvas tone, carefully picking out the retaining metal band clamps in dark Parkerized steel. Base-coat the catapult lattice girder, turntable ring, and launching shuttle in matching vertical gray, detailing the shuttle guide shoes, impulse piston ram, and wire cable sheaves in oily graphite, dark gunmetal, and burnished steel to reflect lubricated mechanical steel surfaces.
• Realistic Frontline Operational Weathering: High-relief super-firing turrets with complex topside aviation gear thrive on rich washes, textural filters, and environmental staining. Apply rich dark raw umber and soot black oil washes into the deep folds of the canvas blast bags, inside the open lattice openings of the catapult girder, around the roof hatch coamings, and along the lower turret bustle overhang to establish deep structural shadows. Add realistic weathering effects like bare-metal chipping and wear along the catapult shuttle rails where the Kingfisher launch cradle ran, dark grease stains around the catapult pivot bearing and buffer cylinders, delicate paint scuffs along the turret roof walkway where aviation mechanics prepped the aircraft, dried white salt spray mineral crusting layered across forward-facing glacis facets and barrel sleeves, and vertical rust streaks weeping down the tall cylindrical barbette wall toward deck waterways to capture the true look of a majestic Pacific Fleet dreadnought standing ready at Pearl Harbor.
