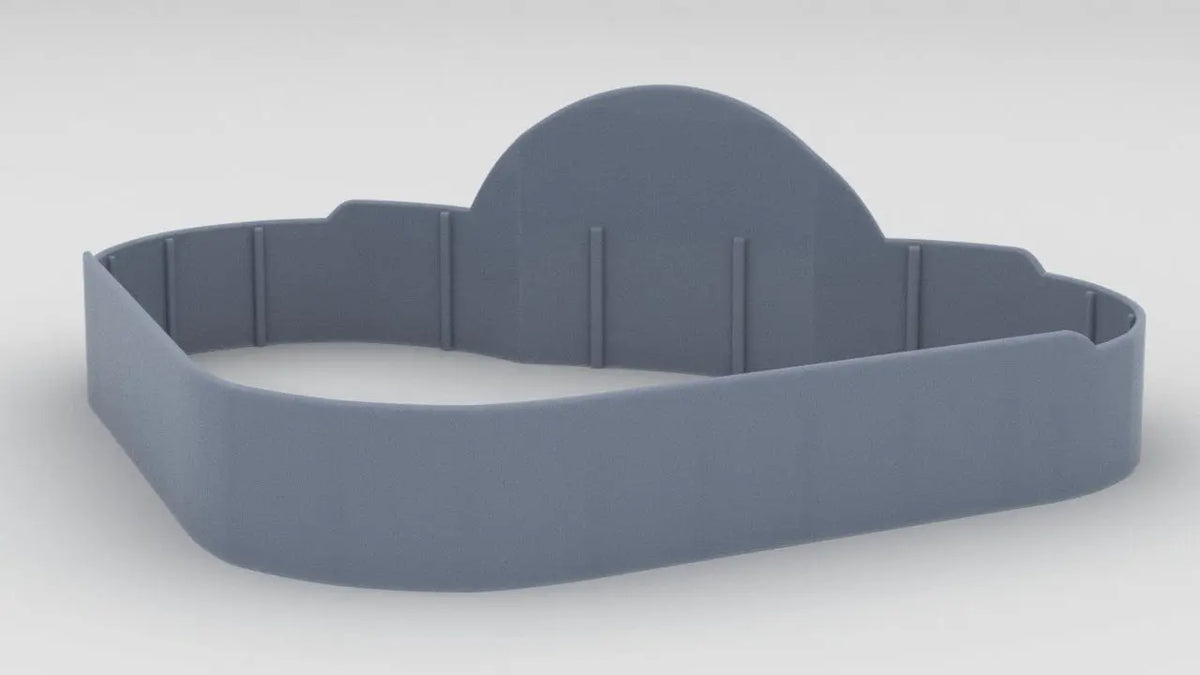

1/200 USS Heermann 20mm After Tub w/ Blast Shield

1/200 USS Heermann 20mm After Tub w/ Blast Shield: Fletcher-Class Close-In AA Architecture Realism

Bring an exceptional layer of technical density, structural authority, and naval combat realism to the aft deckhouse, torpedo handling areas, and fantail approaches of your mid-scale destroyer models with the masterfully engineered 1/200 Scale USS Heermann (DD-532) 20mm After Tub with Blast Shield. Celebrated in naval history for her legendary heroism during the Battle off Samar as part of "Taffy 3," the Fletcher-class fleet destroyer USS Heermann faced point-blank gunfire from Imperial Japanese battleships and relentless kamikaze dives. To defend against deadly low-angle aerial attacks and strafing runs, her aft superstructure carried dedicated 20mm Oerlikon anti-aircraft gun tubs equipped with heavy protective splinter blast shields. These elevated stations safeguarded gunners and ready-service ammunition from concussive gun muzzle blasts from adjacent 5-inch/38 caliber main battery mounts as well as enemy strafing splinters. At a precise 1/200 scale (classic 1/16-inch-to-the-foot builder scale), this standalone architectural upgrade captures the thin curved blast shield plating, exterior vertical angle-iron stiffener gussets, elevated tub floor coaming, integrated 20mm Oerlikon pedestal mount, and under-deck support brackets of original Bureau of Ships (BuShips) builder blueprints with flawless structural clarity, making it an indispensable asset for discerning maritime shipwrights anchoring their veteran fleet representations.

Engineering Precision and Fleet Destroyer AA Station Fidelity

At 1/200 scale, elevated anti-aircraft tubs step completely out of the background to become prominent mechanical focal points commanding the vessel's amidships and aft deckhouse profiles, exposing every millimeter of shield plate curvature, stiffener rib spacing, and structural support alignment to close visual-spatial inspection. This replica after 20mm gun tub captures the utilitarian industrial silhouette of historic American destroyer construction with surgical clarity, completely eliminating the thick, out-of-scale solid plastic walls, soft rounded rims, missing structural ribs, and tedious seam line cleanup typical of standard factory injection-molded plastic kits or soft white metal castings. Deployed onto the aft deckhouse structure of your 1/200 scale build, the assembly features true-to-scale physical contours, creating realistic physical shadow lines and deep visual relief that basic kit placeholders cannot match.

• Museum-Quality Arsenal Replication: Developed using original technical layouts, historical U.S. Navy Bureau of Ships builder blueprints, and archival shipyard refit schematics to accurately reproduce the exact physical dimensions, splinter shield curvature, and under-tub support geometry of active wartime Fletcher-class units.
• Prototypical USS Heermann & Fletcher Scope: Specifically engineered for 1/200 scale Fletcher-class destroyer models, custom scratch-built hulls, and museum-grade maritime diorama displays depicting USS Heermann (DD-532) or sister ships in their 1944–1945 combat fits.
• Integrated Weapon & Shield Suite: Engineered as an all-inclusive architectural assembly incorporating the curved anti-splinter blast shield, structural deck tub floor, exterior vertical stiffener ribs, and an integrated 20mm Oerlikon Mark 4 gun on a Mark 10 single pedestal mount.
• Exposed Hardware & Structural Detail: Authentically captures the razor-thin curved armor blast shield, exterior vertical structural angle-iron stiffeners, drainage scupper notches at deck level, gunner foot-tread ring, and authentic under-deck mounting gussets, preserving structural sharpness and realistic spatial proportions.
• True-to-Scale Volumetric Depth: Replicates the true physical three-dimensional presence of elevated naval gun stations, casting realistic deep shadows beneath the overhanging platform edges and inside the tub enclosure against aft deckhouse bulkheads with authentic mechanical contrast.
• Streamlined Deck Integration: Engineered with precision-molded alignment contact pads on the tub underside designed to seat cleanly and securely flush onto standard 1/200 scale deckhouse roofs or aft superstructure decks, drastically reducing assembly friction and streamlining installation.
• Intelligent Hollowed Engineering: Expertly designed in High Detail Resin (available in Grey or White formulas) with an optimized, lightweight structural profile to manage material mass while preserving maximum rigidity. This configuration ensures an exceptionally crisp, warp-free gun tub with scale-thin blast shield plating that bonds securely without causing adhesive slumps, paint peeling, or localized platform sagging over time.

Premium Material: High Detail Resin (Grey/White)

To satisfy the absolute highest demands of micro-detailed static presentation across delicate scale architectural and ordnance components, this USS Heermann after 20mm tub set is crafted from premium High Detail Resin (available in Grey or White formulas).

• Exceptional Feature Definition: This premier formula achieves surgical multi-dimensional precision and an ultra-smooth, non-porous surface finish, capturing the finest mechanical facets—from razor-thin blast shield rims to micro-fine stiffener ribs and 20mm gun barrel contours—with absolute sharpness and zero layer line distraction.
• Professional Foundation: Provides an ultra-smooth base specifically optimized for high-quality marine primers, fine-scale technical pin-washes, micro-masking, and authentic wartime US Navy vertical and horizontal camouflage finishes, ensuring flawless paint adherence.
• Superior Quality: Manufactured by distefan 3d print, ensuring clean surfaces, true curvature alignment, and outstanding dimensional integrity for a luxurious, professional-grade finish.

Key Features and Specifications

• Accurate 1/200 Scale Precision: Precision-engineered for seamless, historically proportional integration with standard 1/200 scale U.S. Navy Fletcher-class destroyer kits, custom scratch-built deckhouses, and museum-grade static displays.
• Historically Authentic Fleet Hardware: Authentically represents the physical configuration of the standardized aft elevated 20mm anti-aircraft gun tubs with blast shields fitted aboard Fletcher-class destroyers during high-tempo Pacific combat operations throughout 1944 and 1945.
• Integrated Firepower: Features an accurately scaled 20mm Oerlikon cannon complete with receiver housing, shoulder rests, and drum magazine, perfectly proportioned within the protective blast shield enclosure.
• Unpainted Finish: Arrives completely unpainted, providing a blank canvas for your creative vision. Customize the assembly to reflect standard U.S. Navy Measure 21 (all-over 5-N Navy Blue), Measure 22 (graded 5-H Haze Gray / Navy Blue), Measure 31/32 dazzle patterns, or the battle-tested Samar scheme.
• The Definitive AA Tub Overhaul: Replaces thick, simplified kit-supplied plastic mounds with a sophisticated, razor-thin, historically correct three-dimensional representation of vital destroyer close-in air defense architecture.

A Canvas for Battle-Tested Fleet Artistry

Arriving in its raw finish, the 1/200 USS Heermann 20mm After Tub w/ Blast Shield serves as the ultimate starting point for advanced multi-layer painting, precise component color-blocking, and realistic maritime weathering.

• The Fleet Warship Scheme: Base-coat the exterior blast shield surfaces, vertical stiffeners, and lower support framing in authentic period-correct U.S. Navy vertical camouflage colors—such as overall 5-N Navy Blue for Measure 21, or 5-H Haze Gray over a Navy Blue hull band for Measure 22—matching the surrounding aft deckhouse walls. Paint the interior tub floor and inner blast shield faces in Deck Blue (20-B) to reflect standard non-skid deck surfacing. Detail the 20mm gun receiver, barrel, and drum magazine in dark Parkerized gunmetal, burnished steel, or graphite, and pick out the top rim of the blast shield with subtle bare-metal burnishing along high-contact crew access zones to establish sharp mechanical contrast against the vertical gray camouflage.
• Realistic Frontline Operational Weathering: Fine-scale elevated platforms thrive on rich washes, textural filters, and environmental staining. Apply rich dark raw umber and neutral black oil washes along the interior base of the blast shield, between the exterior vertical stiffener ribs, and around the gun pedestal mounting bolts to establish deep structural shadows. Add highly realistic weathering effects like bare-metal chipping and foot wear across the tub deck where gunners pivoted during frenzied air attacks, subtle gunpowder soot staining around the gun barrel muzzle, dried white salt spray mineral crusting encrusted heavily over the windward shield face from churning Pacific swells, and delicate vertical rust streaks weeping downward from the drainage scuppers toward main deck waterways to capture the true look of a veteran fleet destroyer enduring relentless frontline combat operations.
