1/32 USN PT Boat 109 Main Mast

1/32 USN PT Boat 109 Main Mast: Elco 103-Class Rigging & Sensor Architecture Realism

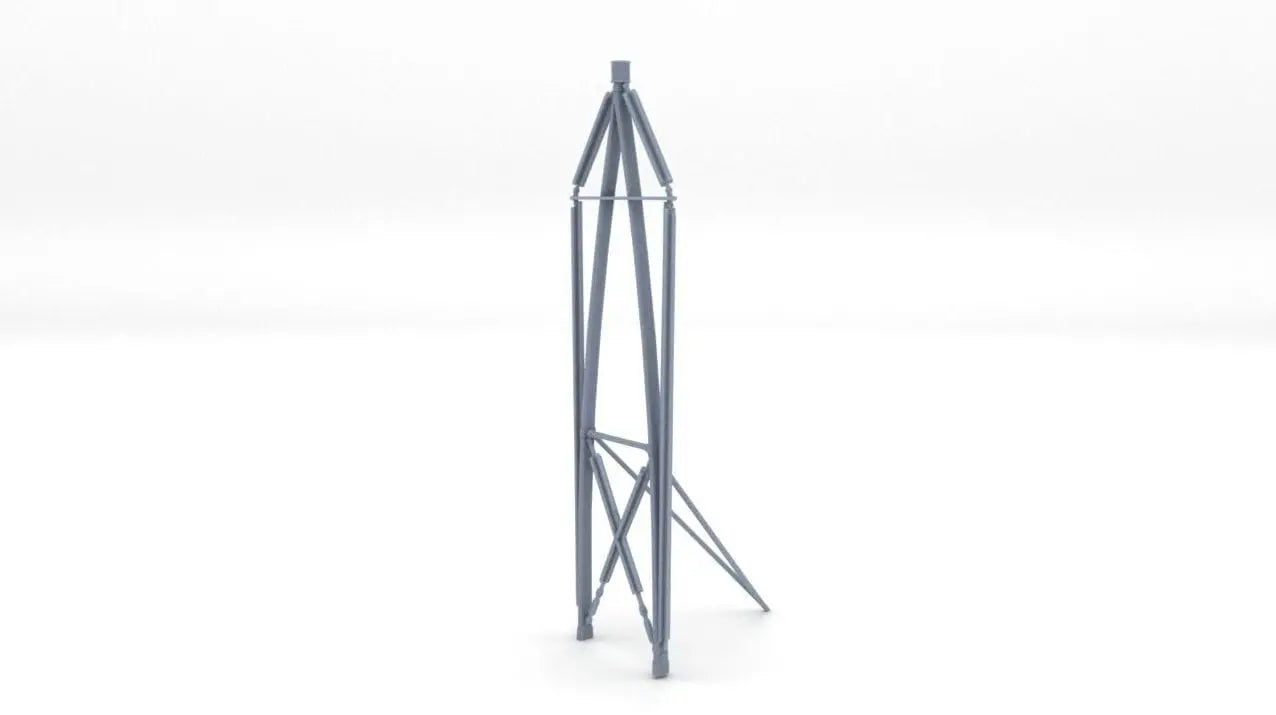

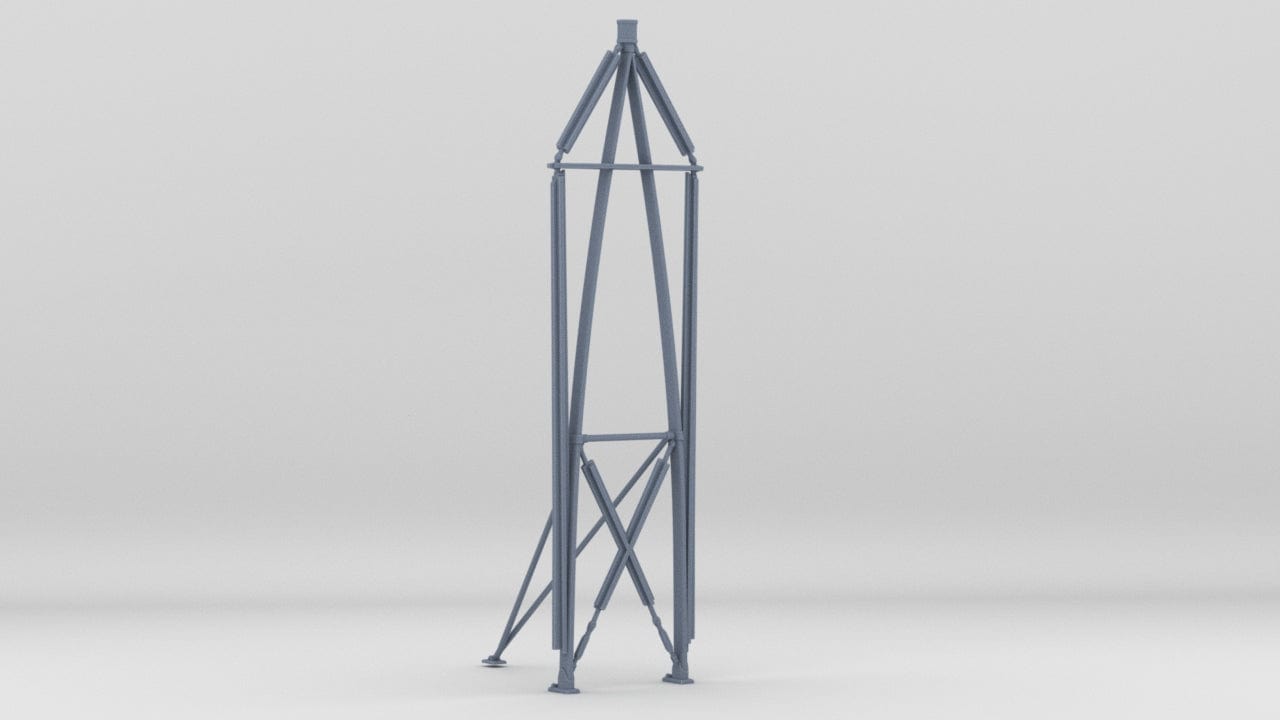

Bring an exceptional layer of technical density, structural authority, and historical precision to the cabin trunk roof, masthead rigging stations, and navigation sensor platforms of your large-format patrol torpedo boat models with the masterfully engineered 1/32 Scale U.S. Navy (USN) PT Boat 109 Main Mast. Purpose-designed for the iconic 80-foot Elco 103-class motor torpedo boats built during 1942 and 1943—specifically covering hull series PT-103 through PT-196 (including Lieutenant John F. Kennedy’s legendary PT-109) and PT-314 through PT-388—this historically accurate mast assembly served as the central nerve post for tactical signaling, radio communications antennas, navigation running lights, and aerial recognition gear. At a commanding 1/32 scale, this standalone upgrade captures the tapered tubular wood-and-steel mast pole, cross-tree yardarm, yardarm sheave holes, stay-wire eyelets, masthead 360-degree white anchor light fixture, running light brackets, and reinforced deck stepped collar of original Elco Naval Division blueprints with flawless structural clarity, making it an indispensable asset for discerning maritime shipwrights anchoring their veteran coastal patrol representations.

Engineering Precision and Elco Rigging Fidelity

At an expansive 1/32 scale, masthead rigging and upper deck hardware step completely out of the background to become primary visual focal points towering above the helm cockpit and engine room trunk, exposing every millimeter of pole taper, yardarm cross-brace joinery, halyard eyelets, and base mounting flange bolting to close visual-spatial inspection. This replica main mast captures the functional, streamlined profile of early wartime Elco motor torpedo boat rigging with exquisite clarity, completely eliminating the soft features, warped injection pins, out-of-scale thick moldings, and tedious seam line cleanup typical of standard factory injection-molded plastic kit parts or soft white metal castings. Deployed atop the cabin roof of your 1/32 scale build, the mast assembly features true-to-scale physical contours, creating realistic physical shadow lines and deep visual relief that basic kit placeholders cannot match.

• Museum-Quality Arsenal Replication: Developed using original technical layouts, historical Elco shipyard construction blueprints, and archival wartime photography of PT-109 and active Motor Torpedo Boat Squadron (RON 2 / RON 5) craft to accurately reproduce the exact physical dimensions, rake angle, yardarm length, and hardware fittings of early-production 80-foot Elco hulls.
• Prototypical Fleet Application Range: Historically accurate for early Elco 103-class production blocks built across 1942 and 1943, specifically hull contracts PT-103 through PT-196 and PT-314 through PT-388.
• Exposed Rigging & Lighting Detail: Authentically captures the tapered vertical spar, transverse yardarm with rigging halyard guide holes, masthead all-around anchor light lamp housing, colored navigation lantern bracket pads, radio lead-in insulator posts, and structural stay-wire turnbuckle lugs, preserving structural sharpness and realistic spatial proportions.
• True-to-Scale Volumetric Depth: Replicates the true physical three-dimensional silhouette of a freestanding naval patrol mast, creating authentic deep shadow lines against mahogany deckhouse roofs, open cockpit windscreens, and roll-off torpedo tubes with realistic mechanical contrast.
• Streamlined Deckhouse Integration: Features an engineered stepped mounting pin and base collar designed to seat cleanly and securely into standard 1/32 scale Elco cabin roof recesses, drastically reducing assembly friction and streamlining installation.
• Intelligent Hollowed Engineering: Expertly designed in High Detail Resin Grey with an optimized, lightweight internal structure to manage material mass across its prominent 1/32 scale vertical footprint. This smart configuration ensures an exceptionally rigid, straight, and lightweight mast that mounts effortlessly without warping, snapping under fine rigging line tension, or causing balance distortion on high-end static presentations or large operational RC hulls.

Premium Material: High Detail Resin Grey

To satisfy the absolute highest demands of micro-detailed static presentation across delicate scale maritime rigging, this Elco PT boat main mast is crafted exclusively from premium High Detail Resin Grey.

• Exceptional Feature Definition: This premier formula achieves surgical multi-dimensional precision and an ultra-smooth, non-porous surface finish, capturing the finest mechanical facets—from razor-thin yardarm taper to delicate lamp fixture bezels—with absolute sharpness and zero layer line distraction.
• Professional Foundation: Provides an ultra-smooth base specifically optimized for high-quality marine primers, fine-scale technical pin-washes, precision detail hand-painting, and authentic wartime US Navy camouflage finishes, ensuring flawless paint adherence.
• Superior Quality: Manufactured by distefan 3d print, ensuring clean surfaces, straight vertical alignment, and outstanding dimensional integrity for a luxurious, professional-grade finish.

Key Features and Specifications

• Accurate 1/32 Scale Precision: Precision-engineered for perfect, historically proportional integration with standard traditional 1/32 scale Elco 80-foot PT boat models (such as the classic Revell 1/32 PT-109 kit), custom large-format conversions, operational RC hulls, and museum-grade static displays.
• Historically Authentic Fleet Hardware: Authentically represents the physical configuration of the standardized early-production Elco 103-class main mast deployed across South Pacific and Mediterranean combat theaters during 1942 and 1943.
• Rigging-Ready Architecture: Designed with pre-formed eyelets and attachment points to facilitate clean, realistic rigging of radio aerial wire, signal halyards, and structural stay lines without requiring tedious micro-drilling.
• Unpainted Finish: Arrives completely unpainted, providing a blank canvas for your creative vision. Customize the assembly to reflect standard U.S. Navy Measure 31/20L (tropical green disruptive scheme), overall standard Navy Gray (5-H), weathered black night-patrol camouflage, or natural varnished spar details.
• The Definitive Topside Rigging Overhaul: Replaces fragile, warped plastic kit parts with a sophisticated, historically correct three-dimensional representation of vital naval signaling and radio architecture.

A Canvas for Battle-Tested Fleet Artistry

Arriving in its raw finish, the 1/32 USN PT Boat 109 Main Mast serves as the ultimate starting point for advanced multi-layer painting, precise component color-blocking, and realistic maritime weathering.

• The Fleet Paint Scheme: Coat the main vertical spar, cross yardarm, and stepped deck collar in authentic period-correct U.S. Navy topside colors—such as standard 5-H Haze Gray or the famous mottled tropical green tones of the Measure 31/20L camouflage applied in the Solomon Islands. Pick out the masthead 360-degree all-around anchor light in clear glass over silver backing with a brass protective cage, paint radio wire insulator collars in ceramic gloss white or dark brown bakelite, and detail metal stay-wire turnbuckle lugs in dark Parkerized gray or bare steel to create striking mechanical depth above the cabin roof.
• Realistic Frontline Operational Weathering: High-relief mast structures thrive on high-contrast texturing and pin-wash filtering. Use rich dark raw umber or black oil washes to let deep shadows settle naturally around the yardarm intersection, beneath mounting stay-wire eyes, and around the stepped base collar. Add highly realistic weathering effects like subtle chipped paint on the base flange where crew members grabbed the mast while securing deck lashings, faint white salt-spray residue dried along windward spar surfaces, and dark vertical streaks weeping downward from metallic rigging attachment points to capture the true look of an active combat patrol boat enduring relentless equatorial sun and nocturnal operations through the Slot.
