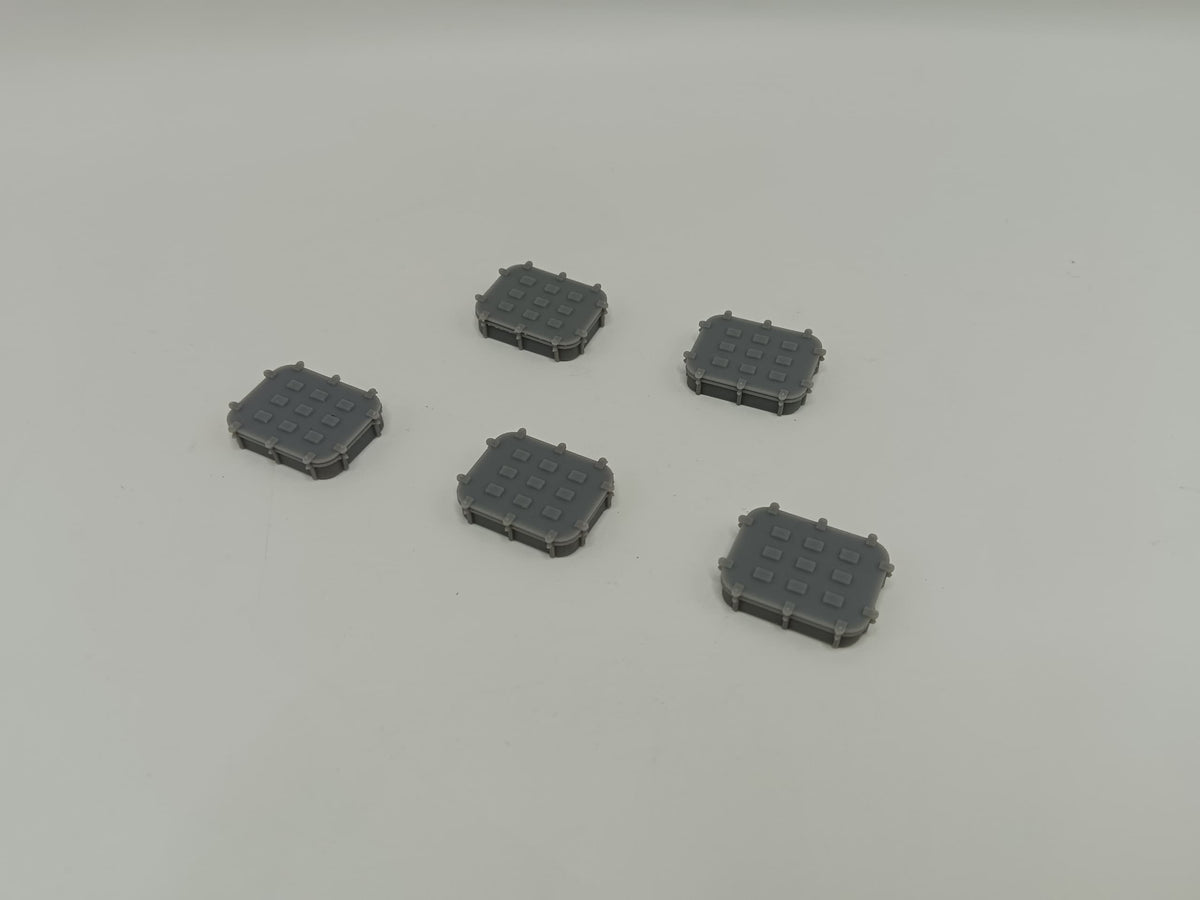

1/39 USN Deck Hatches Set (5pcs)

1/39 USN Deck Hatches Set (5pcs): Compact Square Scuttles & Handling Access Realism

Bring an exceptional layer of technical density, structural authority, and naval combat realism to the forecastle sheer, amidships gun platforms, and superstructure flats of your large-format combatant models with the masterfully engineered 1/39 Scale U.S. Navy (USN) Deck Hatches Set (5pcs). Serving as critical watertight barriers, void-space inspection ports, and rapid ammunition-handling scuttles across United States Navy combatants throughout World War II and the postwar era—including Patrol Torpedo (PT) boats, patrol craft, landing craft, destroyers, and auxiliaries—these compact square scuttles maintained compartment watertight integrity while facilitating high-tempo operations. Positioned around weapon tubs, handling rooms, and weather-deck flats, these heavy steel access points featured raised water-shedding coamings designed to block rushing green water from flooding interior holds, paired with perimeter dogging latches and raised diamond-tread covers. Sized to exact dimensions of 24.00 mm in length, 19.55 mm in width, and 6.20 mm in overall height, this dedicated 5-piece standalone suite captures the structural coaming relief, hinge leaves, locking dogs, and non-skid plate texturing of original Bureau of Ships (BuShips) architectural blueprints with flawless structural clarity, making it an indispensable asset for discerning maritime shipwrights anchoring their veteran fleet representations.

Engineering Precision and Fleet Damage Control Fidelity

At an imposing 1/39 scale, deck-mounted access scuttles step completely out of the background to become primary mechanical focal points commanding the horizontal deck profile, exposing every millimeter of structural coaming height, hinge pin relief, dogging lever contours, and deck attachment seam lines to close visual-spatial inspection. Measuring precisely 24.00 mm long by 19.55 mm wide with a prominent 6.20 mm vertical coaming height, this 5-piece replica scuttle set captures the rugged industrial profile of historic American naval architecture with surgical clarity, completely eliminating the soft features, flat molded-on plastic squares, missing dogging levers, and tedious scribing typical of standard factory injection-molded plastic kits or generic photo-etched metal sheets. Deployed across the weather flats, gun tub walkways, or foredeck planking of your 1/39 scale build, each scuttle features true-to-scale physical contours, creating realistic physical shadow lines and deep visual relief that basic kit placeholders cannot match.

• Museum-Quality Arsenal Replication: Developed using original technical layouts, historical U.S. Navy Bureau of Ships builder blueprints, and archival shipyard construction records to accurately reproduce the exact physical dimensions—24.00 mm (0.94 in) length, 19.55 mm (0.77 in) width, and 6.20 mm (0.24 in) height—alongside prototypical dogging hardware and coaming geometry of active wartime combat units.
• Prototypical Fleet & Littoral Scope: Specifically tailored for large-format 1/39 scale naval combat craft (such as classic scale patrol craft and scratch-built hulls), PT boats, landing craft, deckhouse sections, and museum-grade maritime diorama displays.
• Dedicated 5-Piece Handling Suite: Packaged as a dedicated 5-piece collection of matching compact square scuttles, providing the ideal quantity to outfit multiple gun stations, ammunition hoist trunks, or void-space access points across your vessel.
• Exposed Hardware & Mechanical Detail: Authentically captures the heavy raised water-shedding coaming rims, exterior hinge leaves, perimeter dogging latch levers with locking wedges, and authentic raised diamond non-skid tread plating, preserving structural sharpness and realistic spatial proportions.
• True-to-Scale Volumetric Depth: Replicates the true physical three-dimensional presence of heavy naval access ways, casting realistic deep shadows beneath the 6.20 mm raised coamings against surrounding deck surfaces with authentic mechanical contrast.
• Streamlined Deck Integration: Engineered with precision-molded flat lower seating faces designed to mount cleanly and securely flush onto 1/39 scale plastic, wood, or fiberglass deck surfaces, drastically reducing assembly friction and streamlining installation.
• Intelligent Hollowed Engineering: Expertly designed in High Detail Resin Grey with an optimized structural profile to manage material mass across its prominent 1/39 scale footprint. This configuration ensures exceptionally rigid, warp-free deck fittings that bond securely without causing adhesive slumps, paint peeling, or localized deck distortion over time.

Premium Material: High Detail Resin Grey

To satisfy the absolute highest demands of micro-detailed static presentation across delicate scale deck architecture, this USN compact deck hatch set is crafted exclusively from premium High Detail Resin Grey.

• Exceptional Feature Definition: This premier formula achieves surgical multi-dimensional precision and an ultra-smooth, non-porous surface finish, capturing the finest mechanical facets—from razor-sharp dogging handle levers to delicate hinge pin sleeves—with absolute sharpness and zero layer line distraction.
• Professional Foundation: Provides an ultra-smooth base specifically optimized for high-quality marine primers, fine-scale technical pin-washes, micro-masking, and authentic wartime US Navy vertical and horizontal camouflage finishes, ensuring flawless paint adherence.
• Superior Quality: Manufactured by distefan 3d print, ensuring clean surfaces, straight rectangular alignment, and outstanding dimensional integrity for a luxurious, professional-grade finish.

Key Features and Specifications

• Accurate 1/39 Scale Precision: Precision-engineered with exact dimensions—Length: 24.00 mm (0.94 in), Width: 19.55 mm (0.77 in), Height: 6.20 mm (0.24 in)—for seamless, historically proportional integration with large-format 1/39 scale naval combat craft, custom scratch-built deck sections, weapon vignettes, and museum-grade static displays.
• Historically Authentic Fleet Hardware: Authentically represents the physical configuration of the standardized compact square scuttles and ammunition handling hatches deployed aboard U.S. Navy warships and patrol craft throughout World War II and the Cold War era.
• Tactical Deck Utility: Sized with authentic physical clearances to sit cleanly adjacent to 20mm Oerlikon tubs, 40mm Bofors mounts, or torpedo deck gear without obstructing crew foot paths.
• Unpainted Finish: Arrives completely unpainted, providing a blank canvas for your creative vision. Customize the assemblies to reflect standard U.S. Navy Deck Blue (20-B), 5-N Navy Blue, 5-H Haze Gray coamings, or weathered service finishes.
• The Definitive Weather-Deck Overhaul: Replaces simplified, featureless kit moldings with a sophisticated, historically correct three-dimensional representation of vital naval ingress and ammunition handling architecture.

A Canvas for Battle-Tested Fleet Artistry

Arriving in its raw finish, the 1/39 USN Deck Hatches Set (5pcs) serves as the ultimate starting point for advanced multi-layer painting, precise component color-blocking, and realistic maritime weathering.

• The Fleet Deck Scheme: Base-coat the hatch covers and top coaming faces in authentic U.S. Navy horizontal surface colors—such as standard Deck Blue (20-B) on steel decks, or match surrounding vertical camouflage like 5-H Haze Gray or 5-N Navy Blue along superstructure bulkheads and gun deck coamings. Detail the external dogging levers, latching wedges, and hinge pins in dark Parkerized steel, graphite, or aged iron to highlight functional mechanical hardware. If displayed in an open ammunition-supply configuration, finish the interior underside of the hatch cover in satin off-white or dark zinc chromate primer red, detailing the perimeter rubber sealing gasket in matte black to establish sharp visual contrast.
• Realistic Frontline Operational Weathering: Large-format 1/39 scale deck fittings thrive on rich washes, textural filters, and environmental staining. Apply rich dark raw umber and soot black oil washes around the base of the 6.20 mm coaming where it meets the deck, into the hinge pin recesses, and around each dogging lever pivot to create deep structural shadows. Add highly realistic weathering effects like bare-metal chipping and heavy foot-traffic wear along the upper coaming lip where ammunition handling parties repeatedly stepped during general quarters drills, dried white salt spray mineral crusting layered across windward faces from crashing head seas, subtle oily grime weeping from hinge pins, and vertical rust streaks weeping downward toward deck waterways to capture the true look of vital frontline hardware enduring relentless high-seas combat operations.
