1/50 USN Binnacle Ship's Compass

1/50 USN Binnacle Ship's Compass (Mark VII): Wheelhouse & Bridge Navigation Station Realism

Bring an exceptional layer of technical density, structural authority, and historical precision to the enclosed wheelhouse, open flying bridge wings, secondary steering stations, and chartroom spaces of your large-format naval vessel models with the masterfully engineered 1/50 Scale U.S. Navy (USN) Binnacle Ship's Compass. Serving as the primary navigational anchor and magnetic steering reference aboard World War II and mid-century U.S. Navy capital ships, cruisers, destroyers (Fletcher, Gleaves, Benson, Sumner classes), destroyer escorts (DE), patrol craft, and fleet auxiliaries, the standardized Mark VII magnetic compass and binnacle stand provided vital, fail-safe course heading data when gyroscopes lost electrical power during heavy surface combat. At a dominant 1/50 scale, this standalone upgrade captures the cylindrical brass binnacle pedestal, port and starboard quadrantal corrector spheres (Kelvin's balls), gimbaled compass bowl, Flinders bar tube, glass sighting hood, and flared deck mounting base of original Bureau of Ships blueprints with flawless structural clarity, making it an indispensable asset for discerning maritime shipwrights anchoring their veteran fleet representations.

Engineering Precision and Fleet Navigational Architecture Fidelity

At a prominent 1/50 scale, bridge navigational instruments step completely out of the background to become primary visual focal points through pilot house glazing or across open flying bridge decks, exposing every millimeter of binnacle housing curvature, corrector sphere bracket offsets, compass card graduation ring, hood hinge detail, and base flange bolt heads to close visual-spatial inspection. This replica Mark VII binnacle captures the functional elegance of historic American naval outfitting with exquisite clarity, completely eliminating the soft features, flat two-dimensional photo-etched limitations, solid-blocked support arms, and tedious seam line cleanup typical of standard factory injection-molded plastic kit parts or soft white metal castings. Deployed onto the bridge deck of your 1/50 scale build, the binnacle features true-to-scale physical dimensions, creating realistic physical shadow lines and deep visual relief that basic kit placeholders cannot match.

• Museum-Quality Arsenal Replication: Developed using original technical layouts, historical U.S. Navy Bureau of Ships navigational equipment specifications, and archival shipyard wheelhouse schematics to accurately reproduce the exact physical dimensions, pedestal height, and quadrantal sphere geometry of active fleet Mark VII installations.

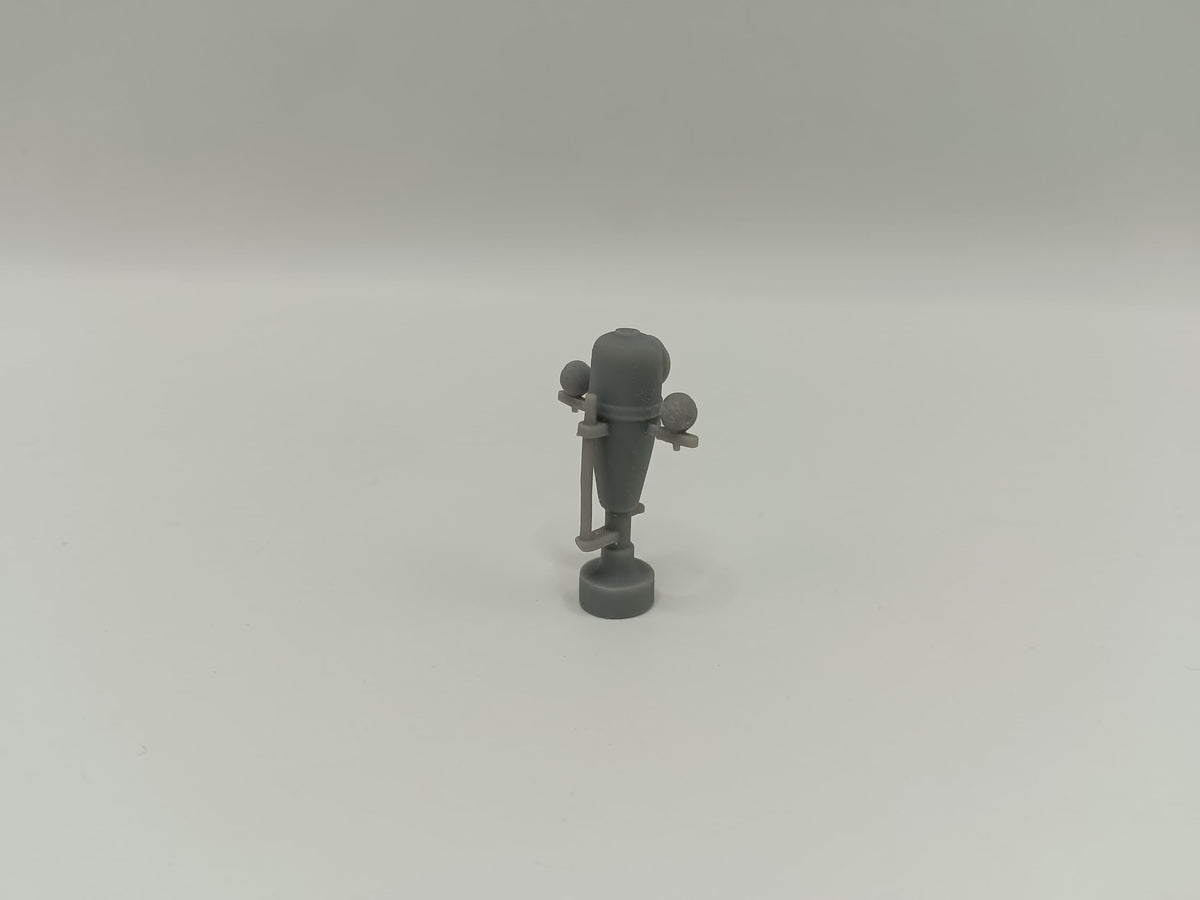

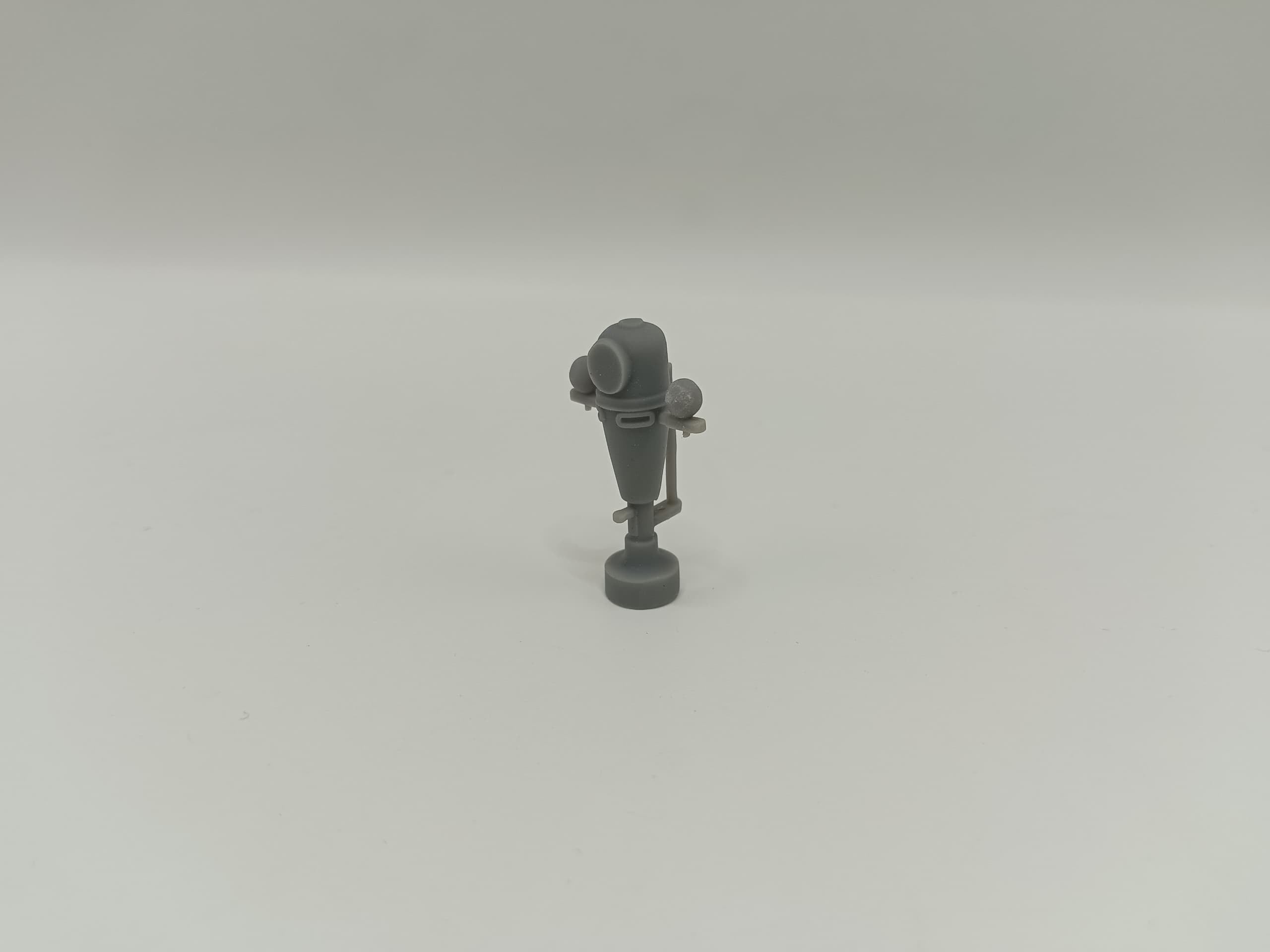

• Exposed Navigational & Mechanical Detail: Authentically captures the central cylindrical housing, dual projecting soft-iron quadrantal corrector sphere brackets (port and starboard), vertical forward Flinders bar case, gimbal-mounted compass bowl with inner floating card recess, inspection access door, and flared deck base plate with raised perimeter bolt heads, preserving structural sharpness and realistic spatial proportions.
• True-to-Scale Volumetric Depth: Replicates the true physical three-dimensional silhouette of a freestanding naval binnacle stand, creating authentic deep shadow lines against the ship's wheel helm, engine order telegraphs, captain chairs, and bulkhead consoles with realistic mechanical contrast.
• Streamlined Deck Integration: Features an engineered flat mounting pedestal pad designed to seat cleanly onto standard 1/50 scale plastic, wood, resin, or fiberglass decks, drastically reducing assembly friction and streamlining installation.
• Intelligent Hollowed Engineering: Expertly designed in High Detail Resin Grey with an optimized, lightweight internal profile to manage material mass across its prominent 1/50 scale footprint. This smart configuration ensures an exceptionally lightweight fitting that attaches effortlessly to bridge decks without causing adhesive slumps, paint peeling, or alignment distortion on high-end static presentations or large operational RC hulls.

Premium Material: High Detail Resin Grey

To satisfy the absolute highest demands of micro-detailed static presentation across delicate scale bridge instruments, this USN Mark VII binnacle compass is crafted exclusively from premium High Detail Resin Grey.

• Exceptional Feature Definition: This premier formula achieves surgical multi-dimensional precision and an ultra-smooth, non-porous surface finish, capturing the finest mechanical facets—from razor-thin corrector bracket arms to subtle pedestal access latch seams—with absolute sharpness and zero layer line distraction.
• Professional Foundation: Provides an ultra-smooth base specifically optimized for high-quality marine primers, fine-scale technical pin-washes, precision detail hand-painting, and multi-toned US Navy finishes, ensuring flawless paint adherence.
• Superior Quality: Manufactured by distefan 3d print, ensuring clean surfaces, precise geometry alignment, and outstanding dimensional integrity for a luxurious, professional-grade finish.

Key Features and Specifications

• Accurate 1/50 Scale Precision: Precision-engineered for perfect, historically proportional integration with standard traditional 1/50 scale U.S. Navy warships, destroyers, patrol craft, custom pilot house interiors, standalone bridge diorama vignettes with 1/50 scale figures, and museum-grade static displays.
• Historically Authentic Fleet Hardware: Authentically represents the physical configuration of the standardized Mark VII magnetic compass binnacle pedestal deployed across American naval wheelhouses and flying bridges during World War II and the post-war era.
• Unpainted Finish: Arrives completely unpainted, providing a blank canvas for your creative vision. Customize the assembly to reflect standard U.S. Navy interior semi-gloss white, Deck Blue (20-B), 5-H Haze Gray, polished marine brass, dark weathered bronze, or painted soft-iron corrector sphere finishes.
• The Definitive Bridge Station Overhaul: Replaces simplified, blobby plastic moldings or flat photo-etched compromises with a sophisticated, historically correct three-dimensional representation of vital naval command architecture.

A Canvas for Battle-Tested Fleet Artistry

Arriving in its raw finish, the 1/50 USN Binnacle Ship's Compass serves as the ultimate starting point for advanced multi-layer painting, precise component color-blocking, and realistic maritime weathering.

• The Fleet Paint Scheme: Coat the central pedestal column and flared deck base plate in authentic period-correct U.S. Navy surface colors—such as interior pilot house semi-gloss white, seafoam green, 5-H Haze Gray, or dark Deck Blue (20-B)—ensuring the stand integrates cleanly into the surrounding deck layout. Paint the upper compass hood, gimbal ring, and Flinders bar in polished brass or aged dark bronze, detail the port and starboard quadrantal corrector spheres in traditional navigation safety colors (port sphere in flat red, starboard sphere in flat green, or both in painted black iron), and paint the interior compass card face in ivory white with fine black compass rose graduations under a gloss clear lens coat.
• Realistic Frontline Operational Weathering: High-relief bridge equipment thrives on high-contrast texturing and pin-wash filtering. Use rich dark raw umber or black oil washes to let deep shadows settle naturally around the base mounting flange joints, under the corrector sphere support arms, and around the maintenance access panel edges. Add highly realistic weathering effects like bright bare-brass friction burnishing along the upper hood edges and access latch where the helmsman and navigator rested their hands during night watches, subtle chipped paint on the base plate revealing reddish-brown primer, faint white salt-crusting patterns on open flying bridge installations, and vertical rust streaks weeping down toward deck scuppers from base mounting joints to capture the true look of vital navigational gear enduring active open-ocean combat operations.
