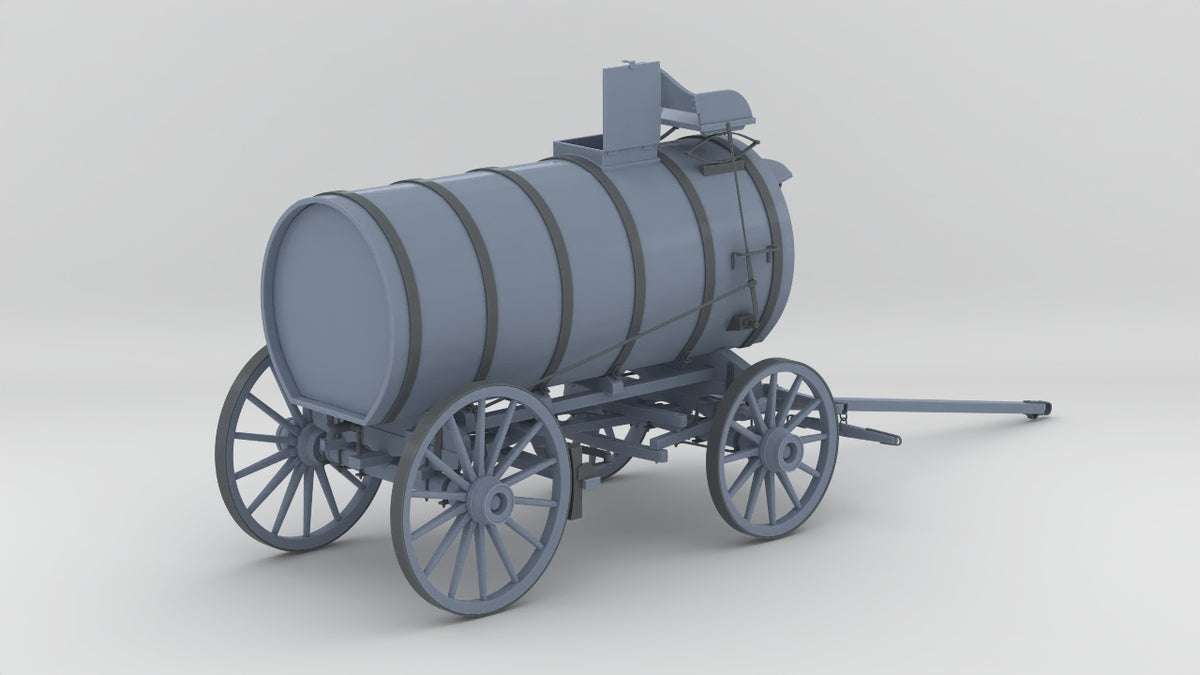

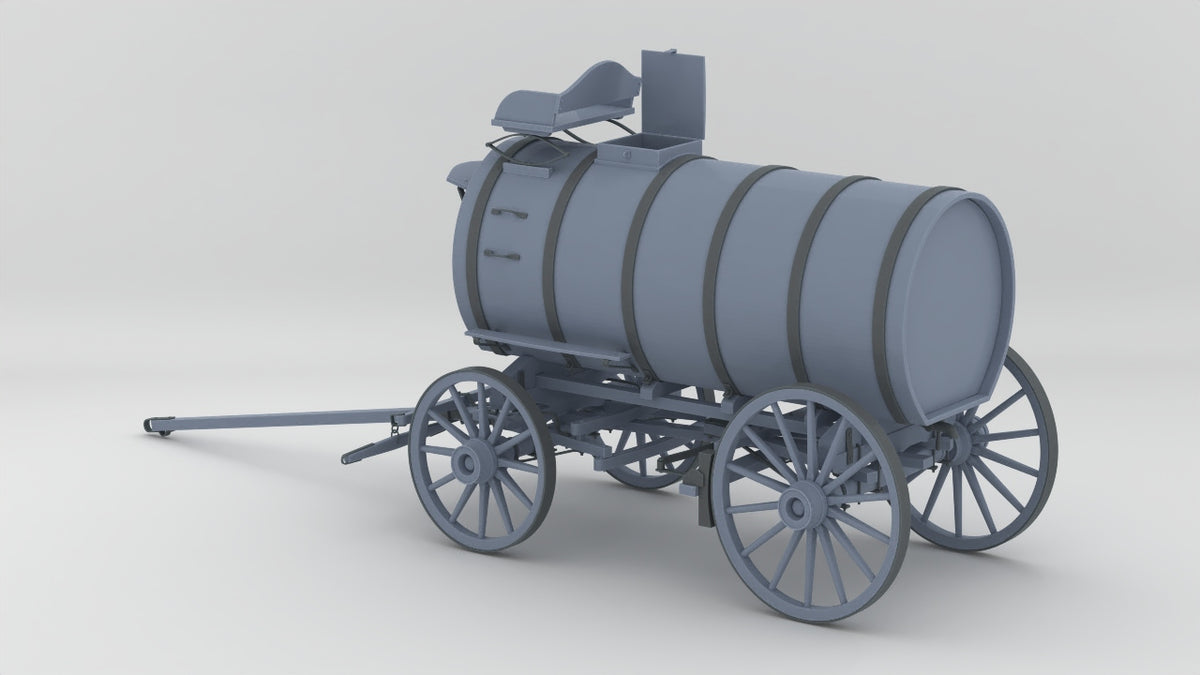

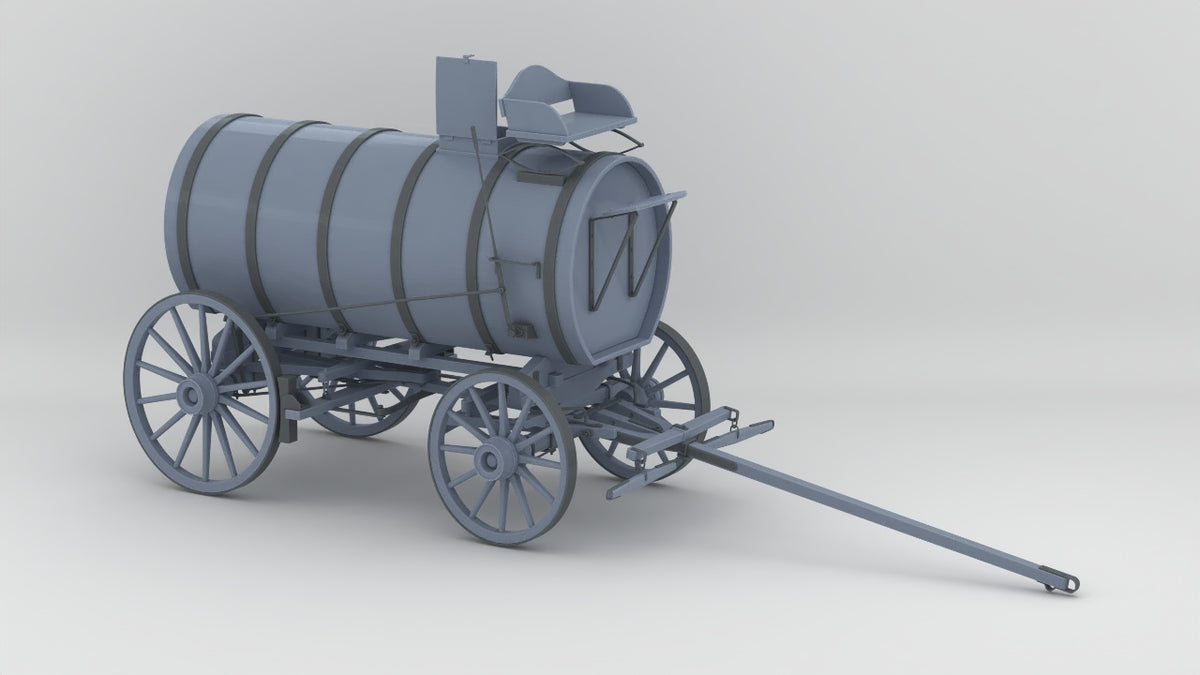

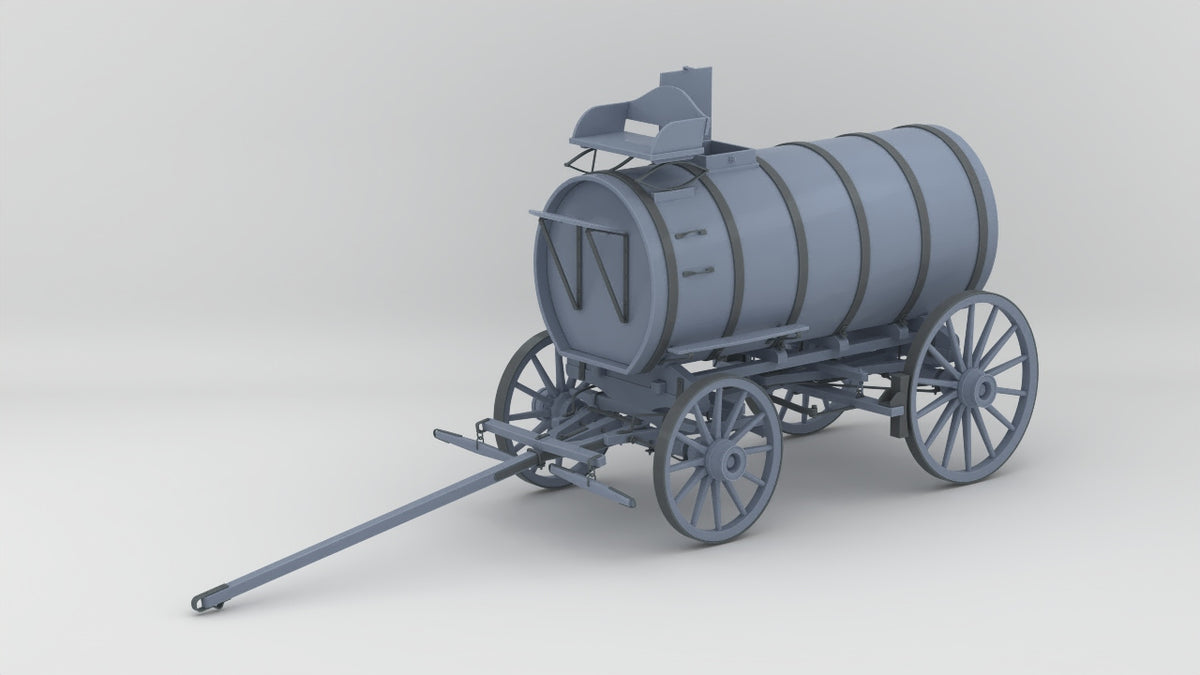

1/6 Horse-Drawn Water Wagon Set

1/6 Studebaker Horse-Drawn Water Wagon Set: Frontier Logistics & Military Service Realism

Bring an exceptional layer of technical density, structural authority, and historical realism to your large-scale dioramas, 1/6 scale action figure displays, and frontier vehicle collections with the masterfully engineered 1/6 Scale Studebaker Horse-Drawn Water Wagon Set. As an indispensable supply vehicle throughout the late 19th and early 20th centuries, the heavy-duty Studebaker water wagon sustained cavalry detachments, infantry columns, artillery camps, and civilian pioneer outposts across demanding terrain. Fitted with a massive coopered water tank mounted upon a reinforced draft chassis, this wagon handled rough cross-country hauls and long-distance water transport under harsh operational conditions. At an expansive 1/6 scale, this comprehensive 130-piece multi-part model kit meticulously captures the complex interaction of hand-hewn structural timber framing, iron reinforcement hardware, multi-linkage mechanical shoe braking systems, and authentic cooperage architecture with flawless fidelity.

Engineering Precision and Period Draft Vehicle Fidelity

At a massive 1/6 scale, vehicle undercarriage components, suspension joints, and working mechanical linkages step completely out of the background to become prominent structural focal points, exposing every facet of wood-grain texture, iron strapping, fastener bolting, and linkage pins to close visual inspection. Developed directly from authentic historical builder schematics, archival wagon manufacturing records, and surviving museum pieces, this replica kit captures the rugged, utilitarian industrial profile of genuine frontier engineering. Every subsystem is broken down into its prototypical timber and forged-iron elements across 130 precision-made parts, allowing the builder to achieve true-to-life structural depth and realistic material differentiation.

• Museum-Quality Arsenal Replication: Accurately reproduces the physical proportions, wheel dish geometry, chassis bolster spacing, and barrel cooperage of historic Studebaker horse-drawn utility wagons.
• Prototypical 1/6 Collector Scope: Specifically engineered for large-format 1/6 military and civilian collections, teamster draft horse rigs, cavalry camp supply scenes, and museum-grade frontier dioramas.
• Comprehensive 130-Piece Builder Suite: Delivered as a full 130-piece collection, providing every individual wooden stave, spoke, iron bracket, linkage rod, and bolt head required for a complete, master-grade build.
• Component Breakdown by Material: Features individually resolved components categorized by original material construction, enabling effortless pre-painting, masking, and authentic texturing of separate wood and metal elements.
• Complex Multi-Linkage Braking Architecture: Captures the full four-stage mechanical wagon brake assembly, from the driver's hand lever down to the rear friction shoe beams and forged connecting rods.
• True-to-Scale Volumetric Depth: Replicates the physical presence of a heavy draft wagon, creating realistic shadow relief beneath the bolster beams, through the wheel spoke arrays, and around the barrel hoop tensioners.
• Intelligent Material Optimization: Expertly produced using high-precision additive manufacturing, combining structural strength with fine mechanical fidelity across high-stress draft poles, singletrees, and wheel hubs to ensure a durable assembly that resists sagging or warping over time.

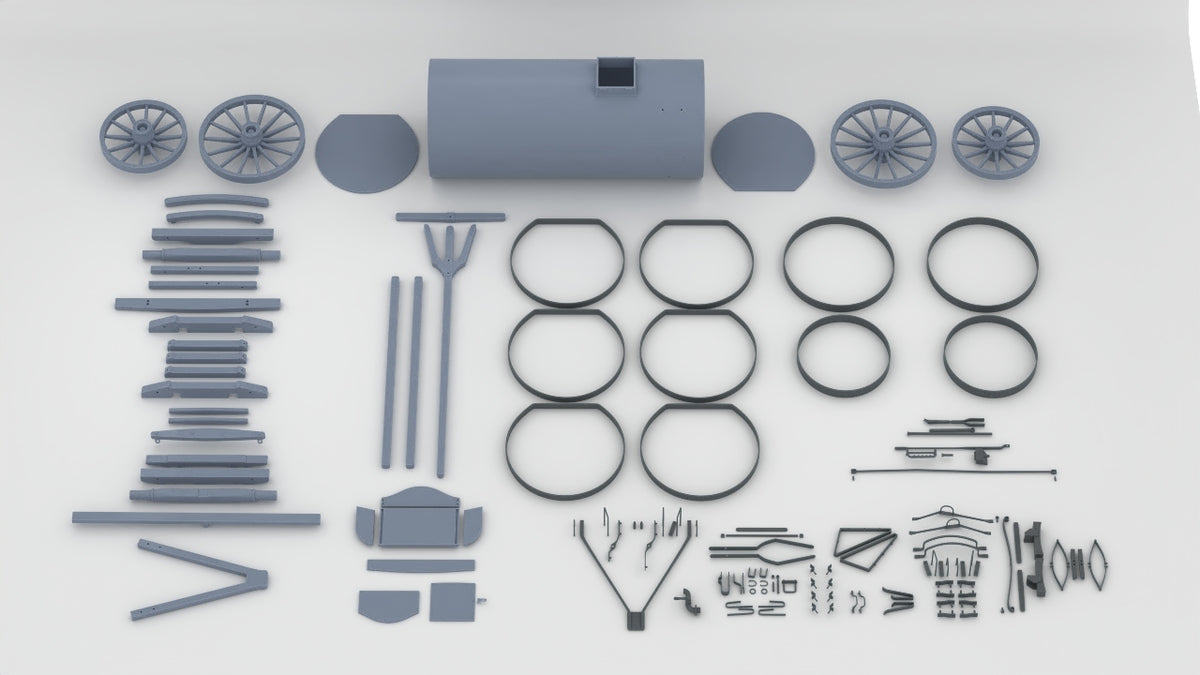

Complete Set Component List

Every component in this comprehensive 130-piece 1/6 scale builder kit is individually detailed to reflect historical timber joinery and blacksmith ironwork, with components designated as printed in High Detail Resin Grey or Stainless Steel:

• Draft & Harness Gear:
  • single tree wood (Draft whippletree/singletree timber beam — printed in High Detail Resin Grey)
  • pole wood (Main wagon draft tongue / hitch pole timber — printed in High Detail Resin Grey)
  • pole metal (Tongue cap, draft irons, and reinforcement strapping — printed in Stainless Steel)
• Driver Station & Footing:
  • seat
    • seat wood (Driver bench seat timber planking — printed in High Detail Resin Grey)
    • seat metal (Curved seat riser leaf springs and iron side rails — printed in Stainless Steel)
  • footboard
    • footboard wood (Driver footrest timber platform — printed in High Detail Resin Grey)
    • footboard metal (Footboard mounting brackets and edge ironwork — printed in Stainless Steel)
  • footboard step
    • footboard step wood (Lower access step timber block — printed in High Detail Resin Grey)
    • footboard step metal (Forged mounting stirrup and stay bracket — printed in Stainless Steel)
• Mechanical Brake System:
  • brake system 1:
    • brake system 1 wood (Primary brake beam and friction block timber housing — printed in High Detail Resin Grey)
    • brake system 1 metal (Brake lever brackets and pivot mounts — printed in Stainless Steel)
  • brake system 2:
    • brake system 2 metal (Actuation linkages, tension rods, and pivot arms — printed in Stainless Steel)
  • brake system 3:
    • brake system 3 metal (Ratchet quadrant, locking pawl, and driver control lever — printed in Stainless Steel)
  • brake system 4:
    • brake system 4 metal (Rear wheel rub shoe retainers and return hardware — printed in Stainless Steel)
• Running Gear & Suspension:
  • wagon suspension wood (Rear axle bed, bolster block, and bolster stakes — printed in High Detail Resin Grey)
  • wagon suspension metal (Axle skeins, bolster iron plates, and stay braces — printed in Stainless Steel)
  • wagon front suspension wood (Front axle timber, hound braces, and upper bolster — printed in High Detail Resin Grey)
  • wagon front suspension metal (Fifth-wheel turning plate, kingpin housing, and draft rod irons — printed in Stainless Steel)
  • wagon wheel wood (Artillery/wagon wheel felloes, wooden hubs, and tapered spokes — printed in High Detail Resin Grey)
  • wagon wheel metal (Outer road tires, hub box skeins, and reinforcing bands — printed in Stainless Steel)
  • frame wood (Heavy longitudinal chassis reach pole and bed sill timbers — printed in High Detail Resin Grey)
• Water Tank & Cooperage Assembly:
  • barrel:
    • barrel (Main coopered wooden tank stave body — printed in High Detail Resin Grey)
    • filler cap:
      • filler cap wood (Tank inspection and fill bung wooden hatch — printed in High Detail Resin Grey)
      • filler cap metal (Hatch hinges, rim strapping, and iron locking hasp — printed in Stainless Steel)
  • barrel ends (Recessed wooden head planking with stave bevels — printed in High Detail Resin Grey)
  • barrel handle metal (Heavy-duty side grab handles and rigging brackets — printed in Stainless Steel)
  • barrel hoops metal (Tensioned compression hoops with tightening lugs — printed in Stainless Steel)
  • barrel hoops rings metal (Tie-down lashing rings and side anchor loops — printed in Stainless Steel)
  • faucet handle metal (Rear discharge valve spigot, drain petcock, and shut-off key — printed in Stainless Steel)

Material Integration: High Detail Resin Grey & Stainless Steel

To satisfy the absolute highest demands of large-scale display modeling, this Studebaker wagon set combines the visual fidelity of High Detail Resin Grey with the structural integrity of real Stainless Steel across all 130 pieces.

• High Detail Resin Grey Components: Wood-structured elements—including the main frame reach, tank barrel staves, axle beds, wheel spokes, and footboards—are crafted from premium High Detail Resin Grey. This material delivers razor-sharp rendering of wood graining, end-grain bevels, and timber joinery without visible layer lines, while providing a non-porous foundation optimized for acrylics, enamels, and oil washes.
• Stainless Steel Components: High-stress structural brackets, suspension braces, chassis irons, brake control linkages, wheel tires, and barrel compression hoops are printed in Stainless Steel. This metal construction provides authentic metallic mass, realistic cold-to-the-touch surfaces, and structural rigidity across fine levers, rods, and rims that will never bend, sag, or snap under handling.
• Superior Craftsmanship: Manufactured by distefan 3d print, ensuring clean tolerances, seamless pin fit between metal brackets and resin timbers, and long-term durability for high-end collector displays.

Key Features and Specifications

• Comprehensive 130-Piece Set: Includes all 130 individual parts required for full assembly, providing an unmatched level of detail and assembly realism.
• Accurate 1/6 Scale Precision: Precision-engineered to match standard 1/6 scale draft horses, harness leather sets, 12-inch collector action figures, and diorama accessories.
• Historically Prototypical Architecture: Faithfully reproduces the Studebaker commercial and military supply water wagon configuration from the late 19th through early 20th centuries.
• Multi-Material Customization: The separated resin and stainless steel components allow modelers to paint the running gear in traditional military olive drab, commercial wagon red, or weathered natural wood before final assembly, leaving metal elements naturally burnished or chemical-blackened.
• Unpainted Finish: Arrives completely unpainted, providing an open canvas for fine detailing, weathering, and wood grain rendering.
• Definitive Frontier Overhaul: Delivers an intricate, historically accurate centerpiece for military camp scenes, Old West dioramas, or standalone vehicle displays.

A Canvas for Battle-Tested Fleet and Field Artistry

Arriving in its raw finish, the 1/6 Studebaker Horse-Drawn Water Wagon Set serves as an exceptional starting point for advanced multi-layer painting, textured wood finishing, and realistic weathering.

• The Teamster Livery: Base-coat the wooden frame, axle bolsters, and running gear in period-accurate colors—such as Studebaker wagon green, carriage red, or deep military olive drab. Treat the water tank staves and barrel ends with acrylic wood-grain undercoats layered with warm sienna and umber washes to replicate water-soaked aged timber. The genuine stainless steel hardware can be left unpainted, treated with chemical patinas, or airbrushed in satin black and distressed to expose bare metal along edges and wear surfaces. Detail the brass or bronze faucet handle with subtle oxidation and verdigris around the spout.
• Frontier Field Weathering: Large-scale horse-drawn equipment offers extensive weathering opportunities. Apply deep raw umber oil washes around the bolster plates, brake shoe pivots, and tank stave seams to create rich structural depth. Layer earth-toned pigments, dry splash mud, and gritty dust along the lower axles, wagon reaches, and wheel rims to represent miles of rutted dirt roads. Burnish the outer stainless steel wheel tires to a polished luster where they ground against rough soil, simulate dark axle grease weeping from the wooden hubs, and add realistic water-line stains and dried calcium deposits weeping downward from the filler bung and rear discharge valve.
