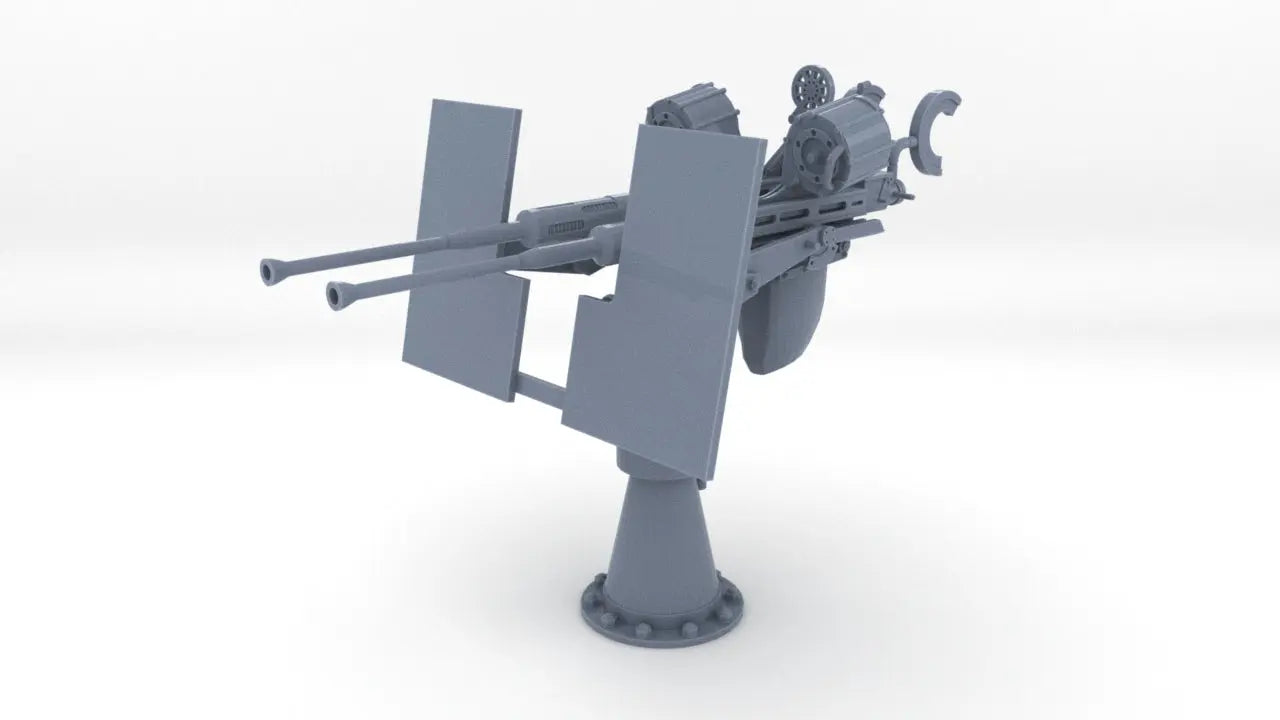

1/72 USN Twin 20mm Oerlikon Mk10

1/72 USN Twin 20mm Oerlikon Mk10: Close-In Anti-Aircraft Realism

Bring an exceptional layer of technical density, structural authority, and historical precision to the deckhouse galleries, bridge wings, and gun tubs of your large-format naval vessel models with the meticulously engineered 1/72 Scale U.S. Navy (USN) Twin 20mm Oerlikon Mk10 Mount. Serving as the primary close-in rapid-fire anti-aircraft defense aboard World War II U.S. Navy battleships, aircraft carriers, cruisers, destroyers, and auxiliary vessels, the twin-barrel Mk10 Oerlikon mount provided a high rate of fire to defend against low-flying torpedo bombers and Kamikaze attacks. At a dominant 1/72 scale, this standalone upgrade set captures the twin 20mm gun barrels, drum magazine wells, operator shoulder rests, gun sight linkages, armored shield plating, and pedestal mounting base of original Navy Yard and Bureau of Ordnance blueprints with flawless structural clarity, making it an indispensable asset for discerning maritime shipwrights anchoring their veteran fleet representations.

Engineering Precision and Fleet Anti-Aircraft Fidelity

At a dominant 1/72 scale, light anti-aircraft mounts step completely out of the background to become central visual focal points along open weather decks and superstructure galleries, exposing every millimeter of barrel spacing, shield contour, ring sight geometry, and shoulder harness detail to close visual-spatial inspection. This replica twin mount set captures the formidable industrial profile of historic American naval ordnance with exquisite clarity, completely eliminating the soft features, solid-blocked shield voids, fused barrel pairs, and tedious multi-piece seam line cleanup typical of standard factory injection-molded plastic kit parts or soft white metal castings. Deployed onto the gun tubs of your 1/72 scale build, every individual mount features true-to-scale physical contours, creating realistic physical shadow lines and deep visual relief that basic kit parts cannot match.

• Museum-Quality Yard Replication: Developed using original technical layouts, historical U.S. Navy Bureau of Ordnance specifications, and archival blueprint configurations to accurately reproduce the exact physical dimensions, barrel length, and shield geometry of active twin 20mm Mk10 installations.
• Exposed Mechanical & Sighting Detail: Authentically captures twin 20mm barrel tubes, recoil springs, top-mounted drum magazines, operator shoulder rests, elevation arcs, and Mk14 gyro sight assemblies, preserving structural sharpness and realistic spatial proportions.
• True-to-Scale Volumetric Depth: Replicates the true physical thickness of the protective armor shield plating and pedestal column, creating authentic deep shadow lines against deckhouse bulkheads and deck plating with realistic mechanical contrast.
• Streamlined Deck Integration: Features engineered flat mounting pads designed to seat cleanly onto standard 1/72 scale plastic, wood, or resin deck surfaces inside AA tubs, drastically reducing assembly friction and streamlining installation.
• Intelligent Hollowed Engineering: Expertly designed in High Detail Resin Grey with an optimized, hollowed-out internal structure to manage material weight across its prominent 1/16 scale footprint. This smart configuration ensures exceptionally lightweight components that attach effortlessly to elevated sponsons without causing glue slumps, structural sagging, or alignment issues on high-end static presentations or operational RC builds.

Premium Material: High Detail Resin Grey

To satisfy the absolute highest demands of micro-detailed static presentation across these delicate crew-served weapon assemblies, this twin 20mm Oerlikon set is crafted exclusively from premium High Detail Resin Grey.

• Exceptional Feature Definition: This premier formula achieves surgical multi-dimensional precision and an ultra-smooth, non-porous surface finish, capturing the finest mechanical facets - from razor-thin shield edges to subtle magazine lip rims - with absolute sharpness and zero layer line distraction.
• Professional Foundation: Provides an ultra-smooth base specifically optimized for high-quality marine primers, fine-scale technical pin-washes, and multi-toned US Navy camouflage finishes, ensuring flawless paint adherence.
• Superior Quality: Manufactured by distefan 3d print, ensuring clean surfaces, precise geometry alignment, and outstanding dimensional integrity for a luxurious, professional-grade finish.

Key Features and Specifications

• Accurate 1/72 Scale Precision: Precision-engineered for perfect, historically proportional integration with standard traditional 1/72 scale U.S. Navy warship models, custom conversions, operational RC hulls, and museum-grade static displays.
• Historically Authentic Fleet Hardware: Authentically represents the physical configuration of the twin-mounted 20mm Oerlikon Mk10 anti-aircraft gun deployed across American warships during World War II.
• Unpainted Finish: Arrives completely unpainted, providing a blank canvas for your creative vision. Customize the assembly to reflect Measure 21 overall Navy Blue, Measure 22 graded camouflage, Measure 32 patterns, or post-war Haze Gray finishes.
• The Definitive Light AA Overhaul: Replaces simplified, blocky kit moldings or soft metal castings with a sophisticated, historically correct three-dimensional representation of vital naval anti-aircraft artillery.

A Canvas for Battle-Tested Fleet Artistry

Arriving in its raw finish, the 1/72 USN Twin 20mm Oerlikon Mk10 serves as the ultimate starting point for advanced multi-layer painting, precise component color-blocking, and realistic maritime weathering.

• The Fleet Camouflage Scheme: Coat the protective armor shield, carriage frame, and pedestal column in authentic period-correct US Navy vertical surface colors - such as 5-N Navy Blue, 5-O Ocean Gray, or 5-H Haze Gray depending on your vessel's operational era - ensuring the hardware blends seamlessly into the gun tub profile. Apply a base coat of dark gunmetal, Parkerized steel, or dark graphite to the twin 20mm barrels, receiver bodies, and top-mounted drum magazines. Highlight operator shoulder rest pads and handgrips in dark rubberized black or bare burnished steel to create striking mechanical depth.
• Realistic Frontline Operational Weathering: High-relief light AA weapons thrive on high-contrast texturing and pin-wash filtering. Use rich dark raw umber or black oil washes to let deep shadows settle naturally around the gun receivers, beneath the shoulder rest frame, and along the pedestal base bolts. Add highly realistic weathering effects like cordite soot darkening around the barrel muzzles to simulate active anti-aircraft barrage firing, subtle paint scuffs along high-contact operator handholds, dark heavy grease marks along elevation gear arcs, and faint white salt-crusting patterns dried onto weather-exposed shield faces from sea spray to capture the true look of vital naval hardware enduring active frontline deployments.
