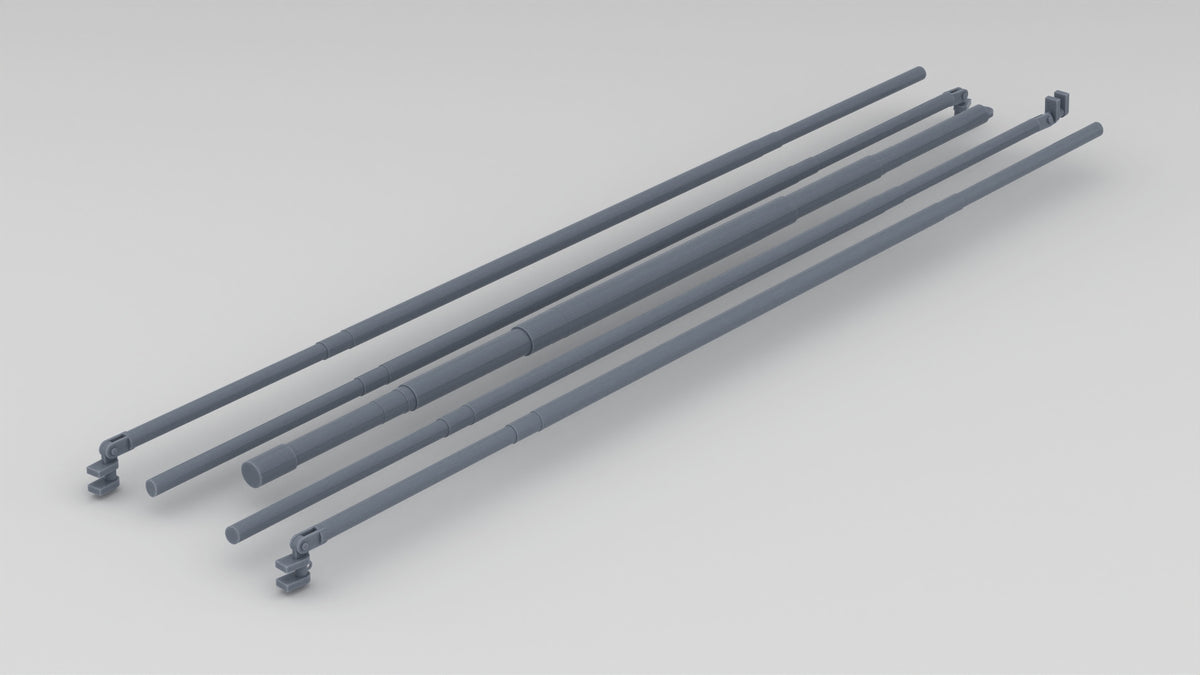

1/96 US Liberty-class Aft Boom Set (5pcs)

1/96 US Liberty-class Aft Boom Set (5pcs): Cargo Handling Rigging & Heavy Derrick Fidelity

Bring an exceptional layer of technical density, structural authority, and naval combat realism to the aft well deck, mainmast rigging, and cargo hatch servicing flats of your large-format merchant combatant models with the masterfully engineered 1/96 Scale U.S. Liberty-class Aft Boom Set (5pcs). Essential to the Allied logistics train that sustained global operations throughout World War II, the tubular steel cargo booms aboard all 2,710 EC2-S-C1 Liberty ships worked around the clock discharging heavy combat equipment into austere beachheads and battle-damaged harbors. Grouped around the aft mainmast and kingposts to service Cargo Hatches No. 4 and No. 5, the standardized aft derrick layout consisted of four 5-ton capacity light-cargo booms paired with a centerline heavy-lift derrick capable of handling outsized armored fighting vehicles, locomotives, and crated aircraft. At a classic 1/96 scale (the 1/8-inch-to-the-foot naval builder scale), this dedicated 5-piece standalone upgrade captures the stepped tubular steel boom contours, gooseneck pivot heels, topping-lift collar bands, cargo whip sheave heads, and pad-eye rigging lugs of original United States Maritime Commission (MARCOM) and Gibbs & Cox builder blueprints with flawless structural clarity, making it an indispensable asset for discerning maritime shipwrights anchoring their veteran fleet representations.

Engineering Precision and Aft Rigging Gear Fidelity

At an expansive 1/96 scale, cargo handling derricks and booms step completely out of the background to become primary mechanical focal points commanding the vessel's vertical silhouette, exposing every millimeter of boom taper, hinge pin relief, collar weld seams, and rigging sheave grooves to close visual-spatial inspection. This 5-piece replica aft boom suite captures the rugged industrial profile of wartime American merchant construction with surgical clarity, completely eliminating the soft features, warped solid-plastic poles, missing collar hardware, and tedious seam line scraping typical of standard factory injection-molded plastic kits or soft metal rods. Deployed onto the aft mast houses and kingposts of your 1/96 scale build, each boom features true-to-scale physical contours, creating realistic physical shadow lines and deep visual relief that basic kit placeholders cannot match.

• Museum-Quality Arsenal Replication: Developed using original technical layouts, historical United States Maritime Commission (USMC) EC2-S-C1 builder blueprints, and archival shipyard rigging outfitting records to accurately reproduce the exact physical lengths, taper profiles, gooseneck heel brackets, and head fittings of active wartime Liberty ships.
• Prototypical Liberty Ship & Merchantman Scope: Specifically engineered for large-scale 1/96 Liberty ship projects (such as classic Lindberg or scratch-built RC cargo hulls), Victory ships, fleet auxiliary supply tenders, and museum-grade merchant marine diorama displays.
• Comprehensive 5-Piece Aft Derrick Suite: Packaged as a dedicated 5-piece collection representing the prototypical aft cargo battery—including four 5-ton general cargo service booms alongside the reinforced heavy-lift derrick boom servicing the aft holds.
• Exposed Hardware & Mechanical Detail: Authentically captures the reinforced gooseneck heel pins, intermediate rigging band collars with pad eyes for guy lines, boom-head cap assemblies with integrated cargo runner wire sheaves, and topping-lift bridle attachments, preserving structural sharpness and realistic spatial proportions.
• True-to-Scale Volumetric Depth: Replicates the true physical three-dimensional presence of heavy naval derrick architecture, casting crisp shadow lines along the tubular boom shafts and around the mast bands against aft well-deck hatch covers with authentic mechanical contrast.
• Streamlined Mast Integration: Engineered with precision-molded gooseneck pivot pin ends designed to seat cleanly and securely into standard 1/96 scale mast-house step sockets or kingpost heel brackets, drastically reducing assembly friction and streamlining installation.
• Intelligent Material Optimization: Expertly designed in High Detail Resin Grey with an optimized structural profile to manage material mass while preserving maximum rigidity. This configuration ensures exceptionally straight, warp-free boom shafts that hold under scale rigging tension without bowing or distorting over time.

Premium Material: High Detail Resin Grey

To satisfy the absolute highest demands of micro-detailed static presentation across delicate scale architectural and rigging equipment, this Liberty ship aft boom set is crafted exclusively from premium High Detail Resin Grey.

• Exceptional Feature Definition: This premier formula achieves surgical multi-dimensional precision and an ultra-smooth, non-porous surface finish, capturing the finest mechanical facets—from razor-sharp collar lugs to open sheave groove throats—with absolute sharpness and zero layer line distraction.
• Professional Foundation: Provides an ultra-smooth base specifically optimized for high-quality marine primers, fine-scale technical pin-washes, micro-masking, and authentic wartime merchant marine finishes, ensuring flawless paint adherence.
• Superior Quality: Manufactured by distefan 3d print, ensuring clean surfaces, dead-straight tubular alignment, and outstanding dimensional integrity for a luxurious, professional-grade finish.

Key Features and Specifications

• Accurate 1/96 Scale Precision: Precision-engineered for seamless, historically proportional integration with standard 1/96 scale (1/8" = 1') EC2-S-C1 Liberty ship kits, custom scratch-built hulls, operational RC cargo vessels, and museum-grade static displays.
• Historically Authentic Fleet Hardware: Authentically represents the physical configuration of the standardized aft cargo boom arrangement installed across thousands of Liberty ships and related emergency cargo vessels from 1941 through the postwar era.
• Operational Versatility: Designed with open rigging attachment lugs, allowing modelers to display booms secured horizontally in their deck cradles for sea passages or rigged upright in working burtoning or heavy-lift offloading configurations over cargo hatches Nos. 4 and 5.
• Unpainted Finish: Arrives completely unpainted, providing a blank canvas for your creative vision. Customize the assemblies to reflect standard wartime U.S. Navy Measure 21, Measure 22, overall commercial maritime gray, or weathered sea-duty finishes.
• The Definitive Derrick Overhaul: Replaces simplified, featureless kit plastic poles with a sophisticated, historically correct three-dimensional representation of vital naval cargo gear.

A Canvas for Battle-Tested Fleet Artistry

Arriving in its raw finish, the 1/96 US Liberty-class Aft Boom Set (5pcs) serves as the ultimate starting point for advanced multi-layer painting, precise component color-blocking, and realistic maritime weathering.

• The Fleet Merchant Scheme: Base-coat the tubular boom shafts in authentic period-correct vertical camouflage or mast paint—such as standard 5-H Haze Gray, buff tan, or commercial hull gray. Paint the reinforced collar bands, head fittings, and gooseneck heel sockets in matching gray or satin black. Finish the internal wire sheaves in dark burnished steel or weathered gunmetal, picking out the grease lubrication caps on the sheave pins in dark aged iron to establish realistic mechanical contrast.
• Realistic Frontline Operational Weathering: High-relief rigging gear thrives on rich washes, textural filters, and environmental staining. Apply rich dark raw umber and soot black oil washes around the collar bands, into the sheave cheeks, and around the gooseneck pivot joints to establish deep structural shadows. Add highly realistic weathering effects like bare-metal cable chafe burnishes along the upper boom edges where whip lines ran, dark grease staining weeping from the sheave axle pins, dried white salt spray mineral crusting encrusted heavily over windward faces from smashing through heavy ocean swells, and vertical rust streaks weeping downward from collar welds toward the deck to capture the true look of hardworking emergency cargo tonnage enduring relentless combat-convoy service.
