1/96 USN AN/SPS 49 Radar

1/96 USN AN/SPS-49 Radar: Superstructure Mast & Air-Search Realism

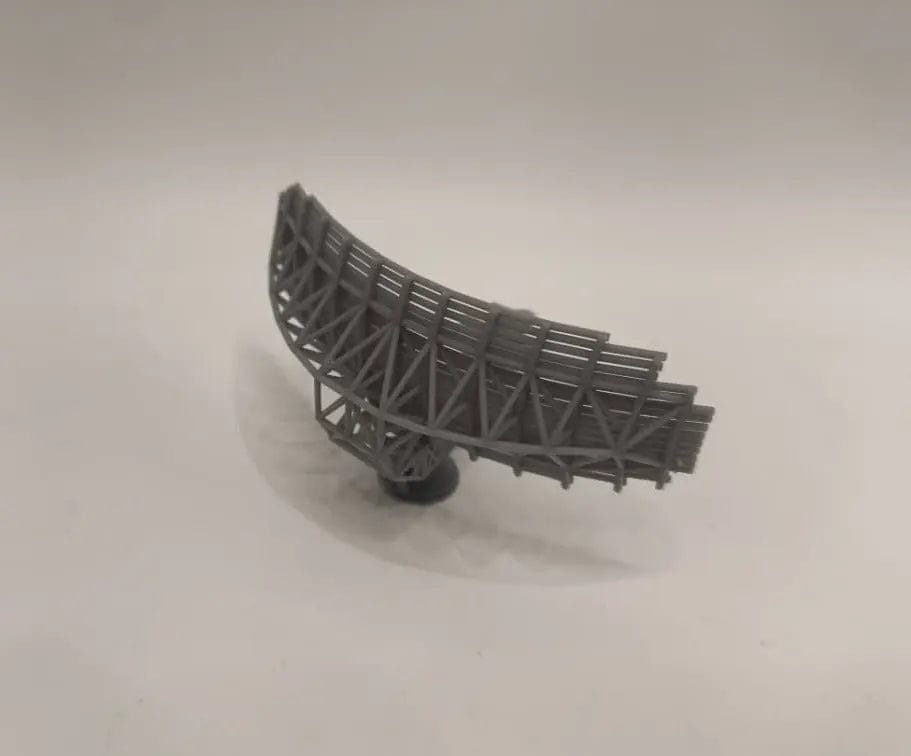

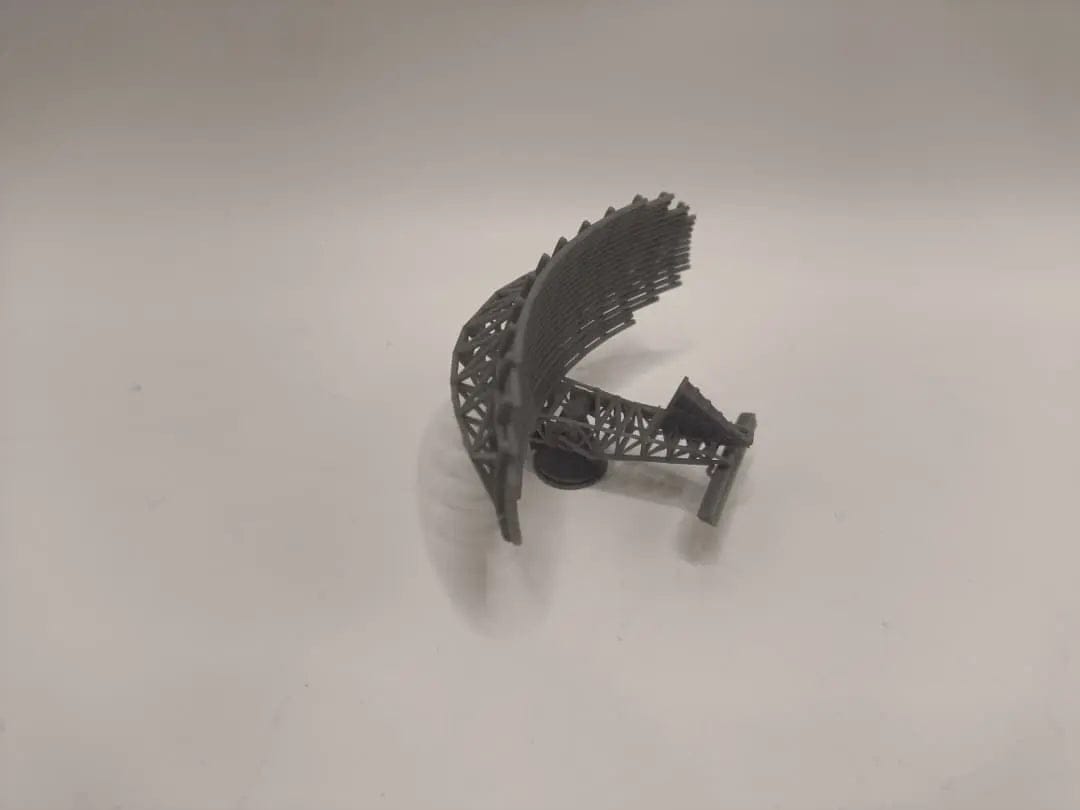

Bring an exceptional layer of technical density, structural authority, and modern electronic warfare precision to the mainmast platforms, sensor galleries, and radar pedestals of your large-format naval vessel models with the meticulously engineered 1/96 Scale U.S. Navy (USN) AN/SPS-49 Radar Set. Serving as the primary long-range, two-dimensional air-search radar system deployed across U.S. Navy capital warships and escorts - including Nimitz-class aircraft carriers (CV/CVN), Ticonderoga-class cruisers (CG), Kidd-class destroyers (DDG-993), Spruance-class destroyers (DD-997), Wasp-class amphibious assault ships (LHD-1), and Whidbey Island-class dock landing ships (LSD-41) - the iconic open-lattice parabolic reflector antenna provided early warning air defense against high-altitude and sea-skimming anti-ship missile threats throughout the late Cold War and modern operational eras. At an expansive 1/96 scale, this standalone upgrade set captures the double-curved open girder reflector grid, feed horn support boom, polarization feeds, drive pedestal housing, and stabilizing gimbal mounts of original Naval Sea Systems Command (NAVSEA) outfitting blueprints with flawless structural clarity, making it an indispensable asset for discerning maritime shipwrights and RC warship captains anchoring their modern fleet representations.

Engineering Precision and Modern Fleet Sensor Fidelity

At an expansive 1/96 scale, air-search radar antennae and superstructure sensor suites step completely out of the background to become primary visual focal points atop elevated mainmasts, exposing every millimeter of open girder framework, feed horn arm projection, and antenna pedestal detail to close visual-spatial inspection. This replica radar antenna captures the complex geometric profile of historic American naval electronics with exquisite clarity, completely eliminating the soft features, solid-blocked lattice voids, thick non-scale truss members, and tedious multi-piece seam line cleanup typical of standard factory injection-molded plastic kit parts or photo-etched brass flats that lack true volumetric depth. Deployed onto the radar platform of your 1/96 scale static or operational RC build, every individual structural member features true-to-scale physical contours, creating realistic physical shadow lines and deep visual relief that basic kit parts cannot match.

• Museum-Quality Yard Replication: Developed using original technical layouts, historical NAVSEA outfitting specifications, and archival blueprint configurations to accurately reproduce the exact physical dimensions, reflector curvature, and feed boom proportions of active fleet radar installations.
• Exposed Open Lattice Architecture: Authentically captures the delicate open girder antenna mesh, rear counterweight trusses, feed horn waveguide, and pedestal motor housing, preserving structural transparency and true-to-scale open spaces throughout the array.
• True-to-Scale Volumetric Depth: Replicates the true physical projection of the parabolic reflector frame and drive machinery casing, creating authentic deep shadow lines against elevated mast platforms and realistic mechanical contrast.
• Streamlined Mast & RC Integration: Features an engineered lower pedestal base flange designed to seat cleanly over standard 1/96 scale mainmast radar platforms or functional RC rotational drive shafts, drastically reducing assembly friction and streamlining installation.
• Intelligent Hollowed Engineering for RC Metacentric Height: Expertly designed in High Detail Resin (Grey or White) with an optimized, hollowed-out internal structure to drastically reduce topside mass across its prominent 1/96 scale footprint. This ultra-lightweight configuration minimizes metacentric height impact on operational radio-controlled ship models, preventing topside weight imbalance, mast sway, or rolling instability during high-speed water maneuvers while maintaining pristine structural integrity for museum-grade static displays.

Premium Material Selection: High Detail Resin (Grey/White)

To satisfy the absolute highest demands of micro-detailed static presentation and functional RC durability across this delicate mast sensor assembly, this AN/SPS-49 radar set is crafted from premium High Detail Resin (available in Grey or White formulas).

• Exceptional Feature Definition: This premier formula achieves surgical multi-dimensional precision and an ultra-smooth, non-porous surface finish, capturing the finest mechanical facets - from razor-thin reflector grid struts to subtle motor casing bolt heads - with absolute sharpness and zero layer line distraction.
• Professional Foundation: Provides an ultra-smooth base specifically optimized for high-quality marine primers, fine-scale technical pin-washes, and multi-toned modern US Navy gray finishes, ensuring flawless paint adherence.
• Superior Quality: Manufactured by distefan 3d print, ensuring clean surfaces, precise geometry alignment, and outstanding dimensional integrity for a luxurious, professional-grade finish.

Key Features and Specifications

• Accurate 1/96 Scale Precision: Precision-engineered for perfect, historically proportional integration with standard traditional 1/96 scale US Navy warship models, operational RC scale vessels, custom large-format conversions, and museum-grade static displays.
• Historically Authentic Fleet Hardware: Authentically represents the physical configuration of the AN/SPS-49 air-search radar system deployed across American aircraft carriers, cruisers, destroyers, and amphibious assault ships from the late Cold War to the modern era.
• Unpainted Finish: Arrives completely unpainted, providing a blank canvas for your creative vision. Customize the assembly to reflect modern Haze Gray (37925), Deck Gray, or specialized stealth radome/antenna finishes.
• The Definitive Superstructure Sensor Overhaul: Replaces simplified, solid plastic moldings or flat photo-etch assemblies with a sophisticated, historically correct three-dimensional representation of vital naval radar architecture.

A Canvas for Battle-Tested Fleet Artistry

Arriving in its raw finish, the 1/96 USN AN/SPS 49 Radar serves as the ultimate starting point for advanced multi-layer painting, precise component color-blocking, and realistic maritime weathering.

• The Fleet Camouflage Scheme: Coat the open reflector lattice, rear counterweight frame, and drive pedestal in authentic period-correct US Navy vertical surface colors - such as overall Haze Gray or neutral modern gray - ensuring the hardware blends seamlessly into your vessel's superstructure profile. Apply dark graphite or matte black to the feed horn tip, waveguide connections, and flexible pedestal weather boots. For operational RC models, finish with a light satin clear coat to seal and protect fine structural details against water spray.
• Realistic Frontline Operational Weathering: High-relief lattice structures thrive on high-contrast texturing and pin-wash filtering. Use rich dark raw umber or neutral gray oil washes to let deep shadows settle naturally inside the lattice girder intersections, around the feed horn boom joints, and along the pedestal base mounting bolts. Add highly realistic weathering effects like subtle exhaust soot darkening on weather-exposed rear trusses from carrier/destroyer stack plumes, faint white salt-crusting patterns dried onto upper antenna frames from ocean spray, and minor grease wash accents around the drive pedestal seals to capture the true look of vital naval electronics enduring active sea deployments.
