1/96 USN Compass Set (2pcs)

Sale price$16.60
Material: High-detail Resin Gray

Material

⚠️ MODEL KIT COMPATIBILITY

Our 3D-printed parts are designed using original historical drawings and specifications. Dimensions may differ from commercially available model kits, even when advertised in the same scale.

Using a kit from another manufacturer? After placing your order, please Contact Us with your order number and the exact dimensions of your existing model parts before production begins so we can verify compatibility.

Compatibility with third-party kits cannot be guaranteed without prior dimensional verification.

Recommend to a Friend

Share this product with a fellow modeler!

1/96 USN Compass Set (2pcs) 1/96 USN Compass Set (2pcs)

1/96 USN Compass Set (2pcs): Bridge Wheelhouse Binnacle & Navigational Heading Fidelity

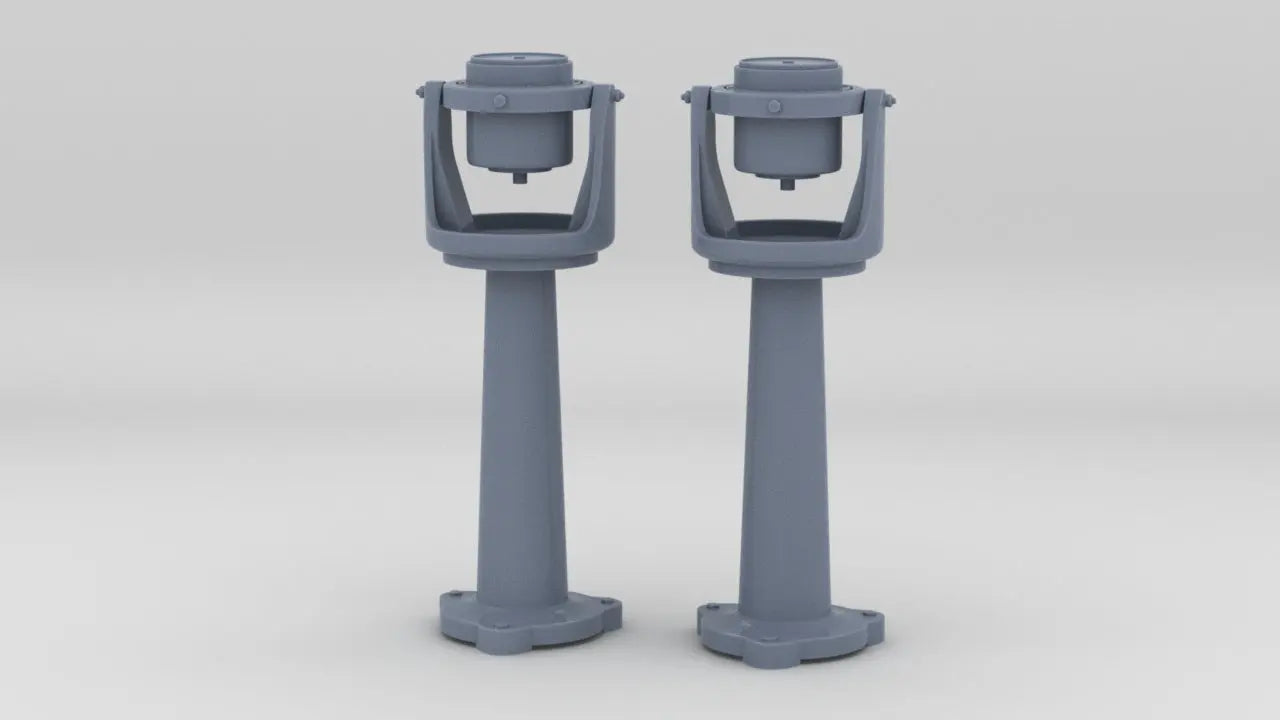

Bring an exceptional layer of technical density, structural authority, and naval navigational realism to the wheelhouse interior, open flying bridge, and emergency conning stations of your large-format American warship models with the masterfully engineered 1/96 Scale USN Compass Set (2pcs). Serving as the foundational primary and auxiliary steering references across United States Navy capital ships, cruisers, destroyers, fleet auxiliaries, and patrol vessels throughout World War II and the Cold War, the standard magnetic binnacle and gyro-compass repeater stands were vital to fleet station-keeping and precise harbor pilotage. Positioned directly along the ship's centerline ahead of the helm steering wheel or exposed on open upper bridge wings, these cylindrical binnacles housed precision liquid-filled compass bowls suspended in low-friction gimbals, flanked by external soft-iron Kelvin quadrantal spheres to correct for shipboard magnetic deviation. Scaled to the commanding 1/96 fleet builder scale, this dedicated 2-piece bridge instrument suite faithfully captures the domed protective hoods, observation sight apertures, Flinders bar tubes, compensating spheres, and flanged deck mounting pedestals of original Bureau of Ships (BuShips) navigation equipment drawings with flawless structural fidelity.

Engineering Precision and Wheelhouse Navigation Architecture

At 1/96 scale, open bridge wings and glazed pilothouse interiors put ship control gear directly in the primary visual foreground, where thick, solid-molded plastic kit pegs, blobby indistinct cylinders, and missing quadrantal spheres typical of mass-production plastic moldings or soft white-metal castings severely degrade an ambitious fleet build. This replica 2-piece USN compass suite captures the purposeful, compact geometry of naval navigational instruments with surgical micro-clarity, eliminating clumsy parting lines, asymmetrical features, and flash. Deployed into the pilothouse, open chart table wing, or aft steering shelter of your 1/96 scale build, each instrument stand features true-to-scale physical relief, creating realistic physical shadow lines and deep mechanical contrast that standard kit placeholders cannot match.

  • Museum-Quality Arsenal Replication: Developed using original technical layouts, historical U.S. Navy Bureau of Ships navigational equipment specifications, and shipyard outfitting archives to accurately reproduce the exact physical dimensions, binnacle column taper, gimbal housing diameter, and compensating sphere arm offsets of operational wartime shipboard compass stands.
  • Prototypical 1/96 Fleet Scale: Specifically engineered for large-format 1/96 scale American warship models (including Iowa-class battleships, Fletcher and Gearing-class destroyers, cruisers, PT boats, and escort vessels), bridge interior cutaways, and museum-grade maritime diorama centerpieces.
  • Matched 2-Piece Bridge Suite: Packaged as a dedicated pair of two (2) complete navigational stands, providing the necessary components to outfit both the primary enclosed pilothouse steering station and the exposed upper flying bridge or emergency conning position.
  • Exposed Hardware & Mechanical Detail: Authentically captures the brass binnacle hood, glass viewports, side-mounted quadrantal correcting sphere brackets with cast iron spheres (Kelvin's balls), vertical Flinders bar tubes, night illumination wire conduits, and flared pedestal base rings with raised deck-mounting bolts.
  • True-to-Scale Volumetric Depth: Replicates the true physical three-dimensional presence of marine-grade brass, non-magnetic bronze, and cast iron, casting realistic deep shadows beneath the spherical compensators, inside the hood sight aperture, and around the base collar.
  • Streamlined Deck Integration: Engineered with precision-molded base mounting pins designed to seat cleanly, squarely, and securely flush into standard 1/96 scale bridge deck planking or linoleum floor overlays, drastically reducing assembly friction and streamlining installation.
  • Intelligent Structural Engineering: Expertly designed in High Detail Resin Grey with optimized micro-proportions to manage material mass while preserving maximum rigidity, ensuring razor-sharp compensating bracket arms and perfectly centered spherical correctors that resist drooping, bending, or thermal distortion over time.

Premium Material: High Detail Resin Grey

To satisfy the absolute highest demands of micro-detailed static presentation across delicate scale naval architecture and specialized bridge instrumentation, this 2-piece compass set is crafted exclusively from premium High Detail Resin Grey.

  • Exceptional Feature Definition: This premier formula achieves surgical multi-dimensional precision and an ultra-smooth, non-porous surface finish, capturing the finest mechanical facets—from scale-thin hood viewing bezels and bracket arms to miniature base mounting flange bolts—with absolute sharpness and zero layer line distraction.
  • Professional Foundation: Provides an ultra-smooth base specifically optimized for high-quality marine primers, metallic lacquers, fine-scale technical pin-washes, micro-masking, and authentic wartime US Navy bridge finishes, ensuring flawless paint adherence.
  • Superior Quality: Manufactured by distefan 3d print, ensuring clean surfaces, true axial symmetry across both units, and outstanding structural integrity for a luxurious, professional-grade finish.

Key Features and Specifications

  • Accurate 1/96 Scale Precision: Precision-engineered for seamless, historically proportional integration with standard 1/96 scale U.S. Navy warship kits, scratch-built hulls, and museum-grade static displays.
  • Historically Authentic Fleet Hardware: Faithfully represents the physical configuration of the standardized magnetic binnacle and gyro-repeater stands deployed aboard U.S. Navy warships throughout World War II and the Cold War era.
  • Complete 2-Piece Outfitting Pair: Includes two (2) complete high-detail binnacle stands ready for direct bridge installation.
  • Unified High-Integrity Architecture: Combines the hood, gimbal housing, lateral compensating spheres, central column, and deck base into a single cohesive piece per unit, eliminating tedious micro-assembly, microscopic brass wire bending, and messy adhesive joints at this scale.
  • Lightweight Rigidity: Features an engineered structural profile that maintains exceptional structural stiffness across fine bracket arms while ensuring solid, flush attachment to deckhouse floors.
  • Unpainted Finish: Arrives completely unpainted, providing an open canvas for custom finishing. Customize the binnacles to reflect enclosed wheelhouse painted finishes, natural polished naval brass, or vertical camouflage matching open bridge bulkheads.
  • The Definitive Bridge Station Overhaul: Replaces simplified, featureless plastic pegs with a sophisticated, mechanically correct three-dimensional representation of vital naval navigation equipment.

A Canvas for Battle-Tested Fleet Artistry

Arriving in its raw finish, the 1/96 USN Compass Set (2pcs) serves as the ultimate starting point for advanced multi-layer painting, precise component color-blocking, and realistic maritime weathering.

  • The Navy Bridge Color Scheme: For enclosed wheelhouse installations, base-coat the lower pedestal column in authentic interior pale green, semi-gloss white, or dark charcoal, with the upper binnacle hood and rim picked out in polished naval brass, bronze, or dark anti-glare dull bronze. For open flying bridge wings, paint the entire binnacle body in the prevailing exterior camouflage tone—such as overall 5-N Navy Blue (Measure 21) or 5-H Haze Gray (Measure 22). Paint the port and starboard quadrantal correcting spheres in their traditional nautical markings: painted red for the port sphere and green for the starboard sphere (or flat black/dark cast iron for darkened wartime stations). Finish the top glass observation aperture in high-gloss clear varnish or tinted black to simulate glass over the interior compass card.
  • Realistic Frontline Operational Weathering: Sited at the primary control stations where helmsmen and officers of the deck maintained continuous watches, these binnacles show characteristic service handling. Apply fine dark raw umber and soot black oil pin-washes around the hood inspection rim, along the Flinders bar tube seams, and into the base mounting bolt recesses to establish deep structural shadow definition. Add subtle bare-brass or silver metallic highlights along the hood edge and access knobs where watchstanders adjusted the illumination or leaned to verify headings, faint sweat-and-oil grime staining along the hand-contact surfaces, and vertical grime weeping downward from base mounting fasteners to capture the authentic atmosphere of an active combat bridge.
