1/96 USS Fletcher Funnel 1 Searchlight Platform

1/96 USS Fletcher Funnel 1 Searchlight Platform: Forward Stack Gallery & Night Combat Optical Fidelity

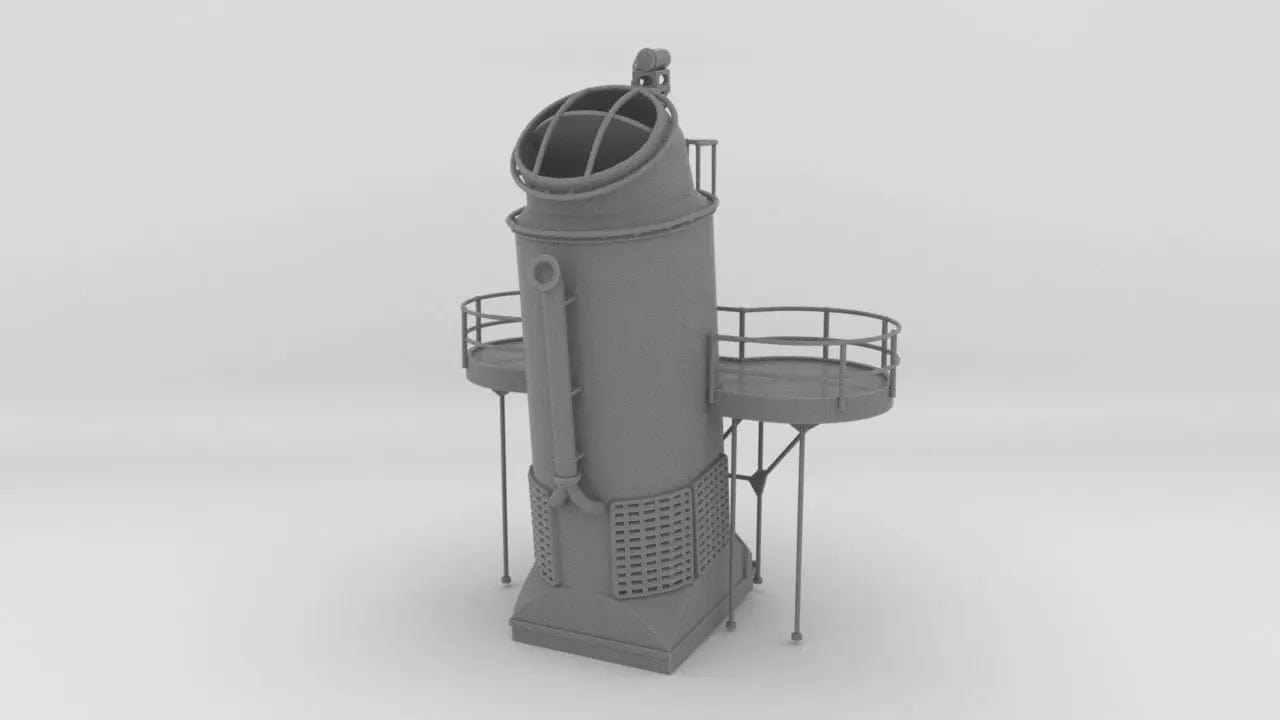

Bring an exceptional layer of technical density, structural authority, and naval architectural realism to the forward exhaust casing and midships optical stations of your large-format American destroyer models with the masterfully engineered 1/96 Scale USS Fletcher Funnel 1 Searchlight Platform. Positioned prominently around the casing of the forward stack (Funnel #1) on wartime Fletcher-class destroyers (DD-445 class), this specialized elevated platform served as the primary mount for the ship’s heavy 36-inch or 24-inch carbon-arc searchlight. Essential for night surface actions, anti-submarine illumination, convoy visual signaling, and scanning contested Pacific waters for torpedo boat incursions, this high-perch station required rigid cantilevered bracing to isolate delicate optical gear from boiler casing vibrations. Scaled to the generous 1/96 builder scale, this dedicated standalone architectural upgrade faithfully reproduces the curved funnel collar, open-air walkway deck grating, perimeter safety bulwarks, searchlight pedestal foundation, and under-deck structural truss supports of original Gibbs & Cox and Bureau of Ships (BuShips) builder blueprints with flawless fidelity.

Engineering Precision and Destroyer Stack Superstructure Fidelity

At 1/96 scale, midships funnel galleries and searchlight platforms step completely out of the background into prominent foreground focal points, exposing structural truss gusseting, platform decking relief, perimeter coaming thinness, and exhaust casing attachment brackets to close visual scrutiny. This replica Funnel 1 platform captures the purposeful, streamlined industrial profile of wartime American fleet architecture with surgical clarity, eliminating the thick, soft-molded contours, solid-cast railings, shallow underside relief, and misaligned joint seams typical of mass-production plastic kits or heavy white-metal castings. Deployed onto the forward stack of your 1/96 scale build, the assembly features true-to-scale physical relief, creating realistic physical shadow lines and open-air depth that standard kit placeholders cannot match.

• Museum-Quality Arsenal Replication: Developed using original technical layouts, historical U.S. Navy Bureau of Ships builder blueprints, and archival shipyard outfitting records to accurately reproduce the exact physical dimensions, stack collar curvature, cantilevered overhang angles, and searchlight pedestal foundation geometry of the forward stack platform on wartime Fletcher-class destroyers.
• Prototypical 1/96 Fleet Destroyer Scope: Specifically engineered for large-format 1/96 scale Fletcher-class destroyer models, custom scratch-built RC warships, midships deck cutaways, and museum-grade naval diorama displays.
• Exposed Hardware & Architectural Detail: Authentically captures the perimeter safety coamings with capped rims, realistic deck surface grating texture, central searchlight pedestal mounting pad, electrical lead junction boxes, footplate support brackets, and underside triangular cantilever truss struts with raised structural fastener bolt impressions.
• True-to-Scale Volumetric Depth: Replicates the true physical three-dimensional presence of formed steel plating and structural angle-iron, casting realistic deep shadows beneath the overhanging platform wings, around the funnel casing junction, and inside the operator station.
• Streamlined Funnel Integration: Engineered with precision-contoured inner mating surfaces designed to seat cleanly, squarely, and securely flush against standard 1/96 scale Funnel #1 casings, drastically reducing assembly friction, tedious trimming, and joint filling.
• Intelligent Hollowed Engineering: Expertly designed in High Detail Resin Grey with an optimized internal core profile to manage material mass while preserving maximum rigidity, ensuring crisp, warp-free platform wings and thin coamings that resist drooping, bending, or distortion over time.

Premium Material: High Detail Resin Grey

To satisfy the absolute highest demands of micro-detailed static presentation across delicate scale naval architecture and specialized destroyer topside hardware, this Funnel 1 searchlight platform is crafted exclusively from premium High Detail Resin Grey.

• Exceptional Feature Definition: This premier formula achieves surgical multi-dimensional precision and an ultra-smooth, non-porous surface finish, capturing the finest mechanical facets—from razor-sharp coaming edges and deck texture to miniature mounting bolt rings and under-deck truss strut gussets—with absolute sharpness and zero layer line distraction.
• Professional Foundation: Provides an ultra-smooth base specifically optimized for high-quality marine primers, fine-scale technical pin-washes, micro-masking, and authentic wartime US Navy vertical camouflage finishes, ensuring flawless paint adherence.
• Superior Quality: Manufactured by distefan 3d print, ensuring clean surfaces, true port-starboard symmetry, and outstanding dimensional integrity for a luxurious, professional-grade finish.

Key Features and Specifications

• Accurate 1/96 Scale Precision: Precision-engineered for seamless, historically proportional integration with standard 1/96 scale Fletcher-class destroyer kits, scratch-built hulls, and museum-grade static displays.
• Historically Authentic Fleet Hardware: Faithfully represents the physical configuration of the standardized Funnel #1 searchlight platform fitted across U.S. Navy Fletcher-class destroyers during World War II.
• Unified Single-Piece Architecture: Delivers the complex platform structure as a cohesive, high-integrity unit, eliminating the fragile multi-joint gluing, warping, and seam filling associated with multi-piece photo-etched brass frets or bulky plastic kit parts.
• Hollowed Lightweight Rigidity: Features an engineered structural geometry that minimizes top-heavy weight on the forward superstructure while maintaining exceptional structural stiffness across thin outer bulwarks and open cantilever spans.
• Unpainted Finish: Arrives completely unpainted, providing an open canvas for custom finishing. Customize the platform to reflect standard U.S. Navy Measure 21 (overall 5-N Navy Blue), Measure 22 (5-H Haze Gray over 5-N Navy Blue), Measure 12, or Measure 31/32 dazzle camouflage patterns.
• The Definitive Forward Stack Overhaul: Replaces simplified, blobby plastic kit parts with a sophisticated, mechanically correct three-dimensional representation of vital destroyer night-operations architecture.

A Canvas for Battle-Tested Fleet Artistry

Arriving in its raw finish, the 1/96 USS Fletcher Funnel 1 Searchlight Platform serves as the ultimate starting point for advanced multi-layer painting, precise component color-blocking, and realistic maritime weathering.

• The Destroyer Fleet Scheme: Base-coat the exterior platform coamings and underside cantilever support struts in authentic period-correct vertical camouflage colors—such as 5-H Haze Gray, 5-O Ocean Gray, or dark 5-N Navy Blue matching your destroyer’s specific camouflage measure. Paint the interior walking deck in anti-glare Deck Blue (20-B) or dark weathered non-skid gray to reflect wartime glare suppression standards. Detail the central searchlight pedestal mounting ring in dark gunmetal, burnished steel, or satin black to provide striking mechanical contrast against the surrounding naval gray.
• Realistic Frontline Operational Weathering: Midships funnel platforms thrive on rich washes, textural filters, and environmental staining. Apply rich dark raw umber and soot black oil washes into the open deck corners, around the pedestal mounting bolts, and beneath the cantilever support struts to establish deep structural shadows. Add realistic weathering effects like bare-metal chipping and silver scuffs along the deck floor and coaming top sills where searchlight crews stood watch during night maneuvers, heavy exhaust soot deposits trailing downward across the platform collar from the adjacent funnel cap, dried white salt spray mineral crusting layered across windward faces from driving through heavy Pacific seas, and vertical rust streaks weeping downward from drainage scuppers toward the main deck waterways to capture the true look of a veteran Tin Can fighting under combat conditions.
